Highlights
  • 1 x 100W warm white LED (3200K)
  • Manual focus
Click here for Features and Specifications
On display in our London Showroom
We are here to help! 020 8579 0144
Regular price £269.00 £0.00 Unit price per
In Stock

In Stock

Free next day delivery

On all orders over £100

Frequently bought together:

Keep browsing or just give us a call: 020 8579 0144. We are here to help!

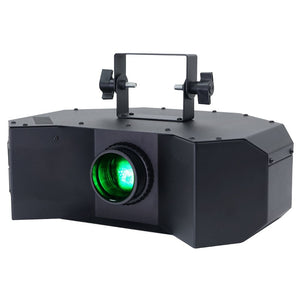

Here we have the Equinox Graphix; project a multitude of multicoloured patterns for your venue! Featuring a rotating graphics wheel and multicoloured mirror dish, offering a super wide 75° beam angle and covering over an 11m span. Suitable for a variety of events and functions to brighten up, and fill the room with colour.

Powered by a mega bright 100W LED, the Graphix is a unique projection effect; perfect for a variety of functions, events or venues. Fitted with a rotating graphics wheel it outputs exciting patterns, whilst its multi-coloured mirror dish features a pastel palette of colours adding a retro feel to this effect. The unit has a range of modes including auto and sound active along with each attribute being controllable via DMX. The unit, although compact in size, has a wide beam angle but still packs a punch over a long distance thanks to its superior optics and high output LED.

  • 1 x 100W warm white LED (3200K)
  • Manual focus
  • Rotating graphics wheel
  • Multi-coloured mirror dish
  • Auto, sound active and master/slave modes plus built-in programmes
  • 0-100% dimming and variable strobe
  • Optional CA 8 controller
  • Supplied with hanging bracket

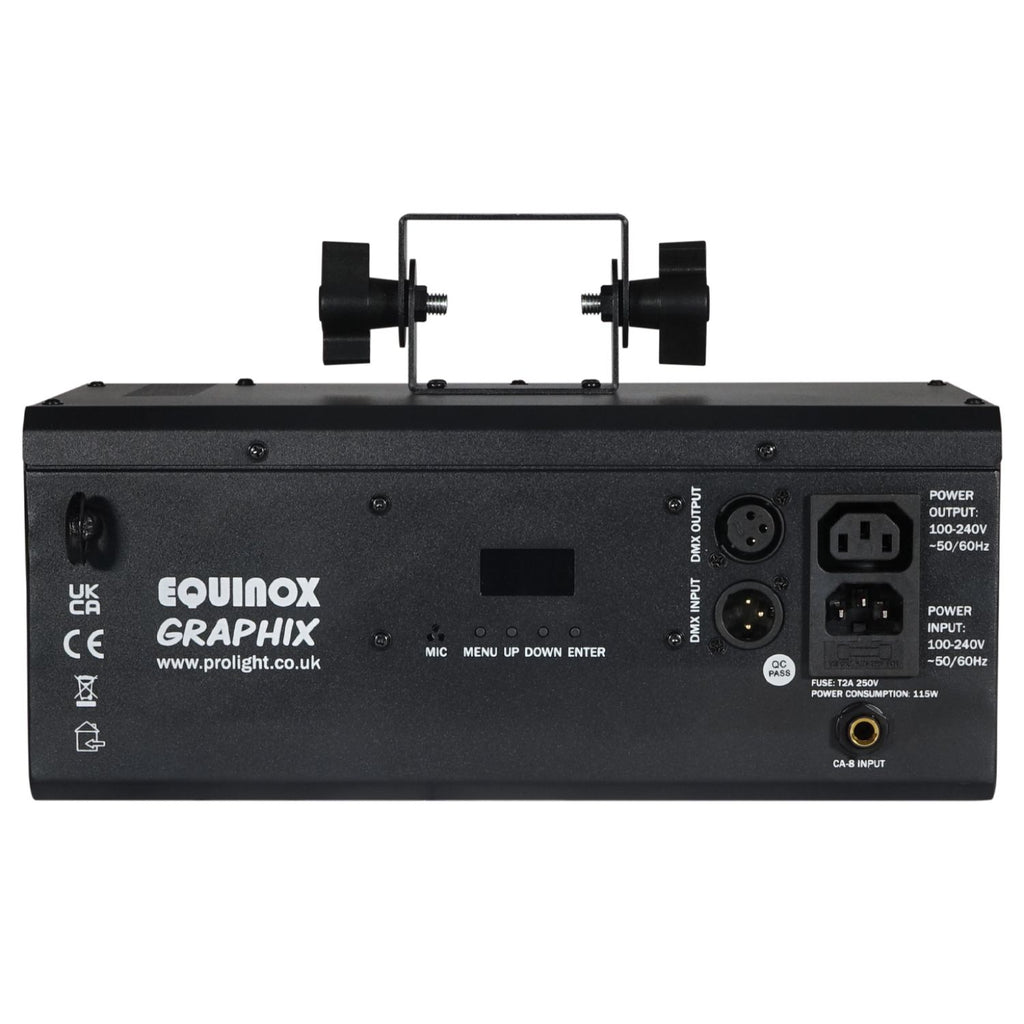

  • 4 push button menu with LED display
  • IEC power input/output
  • 3-Pin XLR input/output
  • Fan cooled
DMX channels: 2, 4 or 6 selectable
Beam angle: 75°
Power consumption: 121 W
Power supply: 100-240 V, 50/60 Hz
Fuse: T2A 250 V
Dimensions (H x W x D): 186 x 308 x 199 mm
Weight: 3.8kg
Regular price £269.00 £0.00 Unit price per
In Stock

In Stock

Overview Video
