Sennheiser XSW 1-835-GB Handheld System
Frequently bought together:
Raise your voice.
Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsules, e825 (dynamic, cardioid) or e835 (superior dynamic, cardioid) to get started. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.
Small solution — great performance.
Even a small budget can provide great freedom on stage.
- Easiest handling
- Excellent live sound
- Reliable transmission
- Great performance — even better price.
Sennheiser developed XS Wireless 1 for those who want to concentrate on their talent, their message, their passion — and not their microphone equipment. Just switch it on and its automatic frequency management does the rest. You can operate up to ten wireless connections simultaneously. No matter whether you’re in a band, a theatre or at a seminar: XS Wireless 1 makes you free to do your thing.
Excellent live sound.
XS Wireless 1 delivers acclaimed Sennheiser quality. Microphones with feedback protection and high-grade components yield an open, forceful sound. The receiver comes in an updated version that is designed to be easy to use. No lengthy set up — just go! These microphones and transmitters are proven classics — the result of decades of German engineering.
On stage, you have to put up with a lot of things — so does your equipment. XS Wireless 1 is built to last: Transmitters and microphones are sweat-resistant and withstand even the toughest stress in everyday on-stage use.

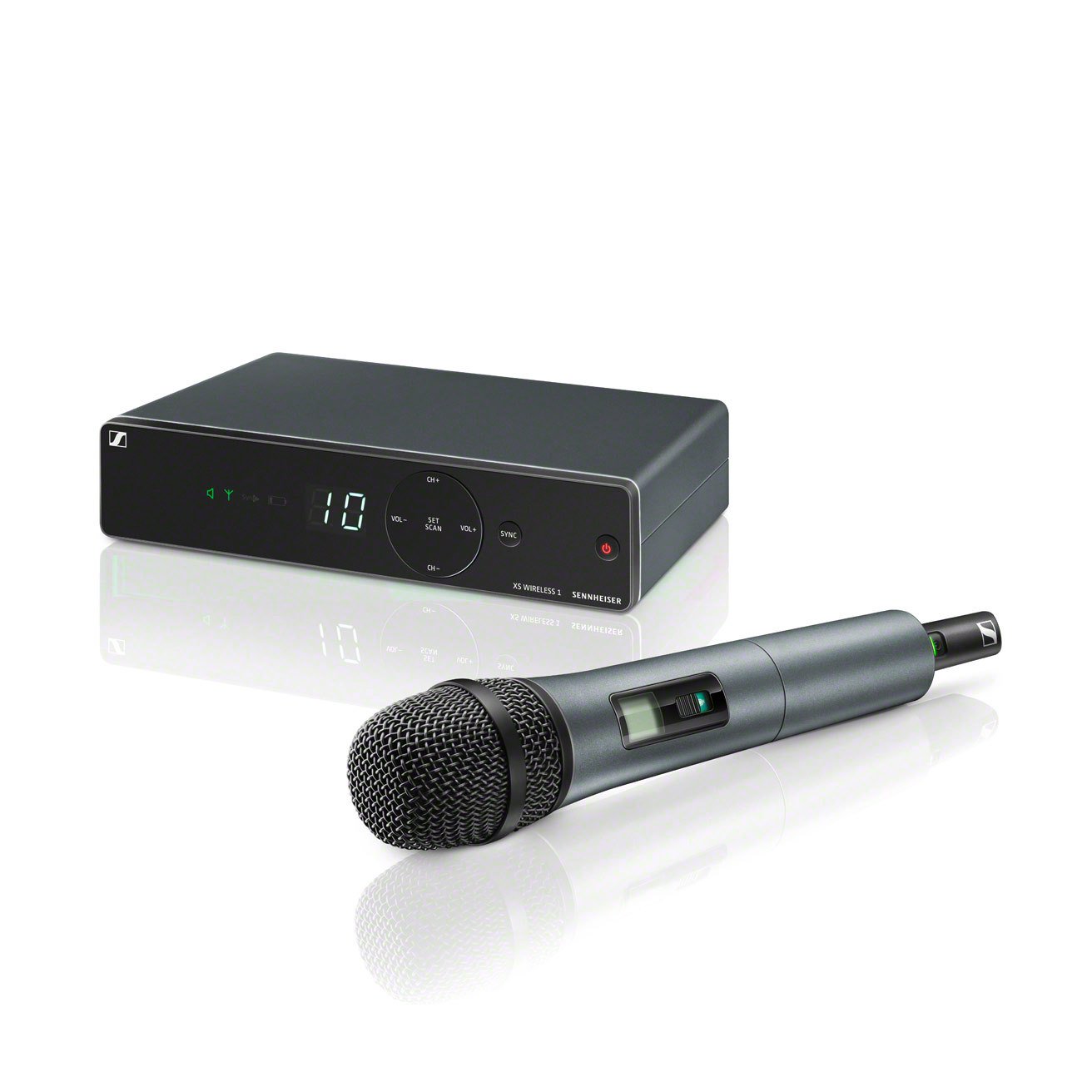

What's in the box

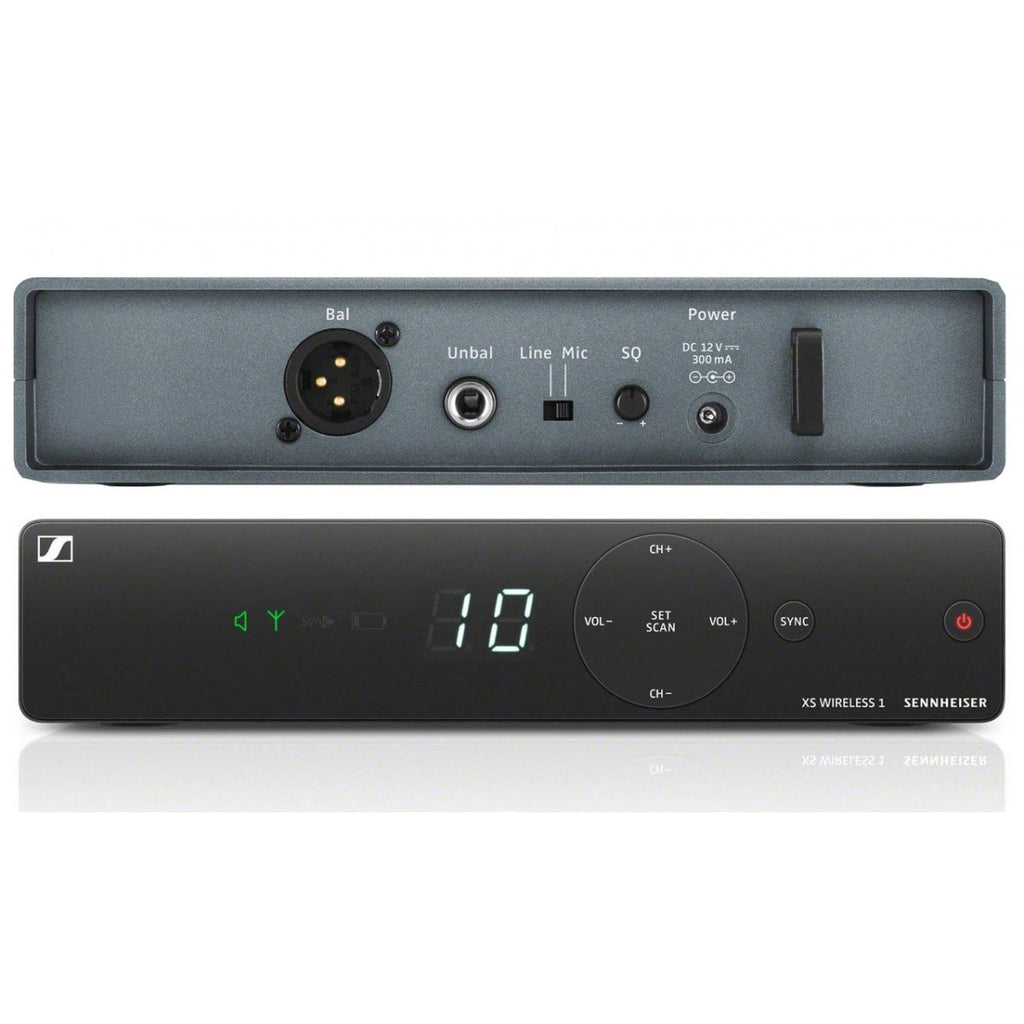

- 1 receiver EM-XSW 1
- 1 handheld transmitter SKM 825-XSW or SKM 835-XSW
- 1 microphone clamp MZQ 1
- 1 power supply NT 12-5 CW
- 2 AA batteries
- Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules (e835)
- Antenna-switching diversity reception
- Integrated antennas
- Automatic frequency management and synchronisation via remote channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
|Dimensions:||approx. 200 x 42 x 127 mm|
|THD, total harmonic distortion:||< 0.9%|
|Signal-to-noise ratio:||< 103 dBA|
|RF output power:||10 mW|
|Switching bandwidth:||up to 24 MHz|
|Operating time:||approx. 10 hrs|
1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket
(balanced): +12 dBu
|Housing rugged:||ABS housing|
|Frequency:||8 frequency banks, each with up to 10 factory-preset channels|
|Frequency range:||GB: 606-630 MHz|
|Sensitivity:||< 3 uV at 52 dB(A)rms S/N|
|Squelch:||adjustable from 3 dBuV to 28 dBuV (combined with pilot tone)|
|Synchronisation:||2.4 GHz, Low Power OQPSK (only active during synchronisation)|
|Input sensitivity:||1.5 mV / Pa|
|Adjustment Range Transmitter:||0 to -30 dB, adjustable in 10 dB steps|
|Audio adjustment range:||45 dB, adjustable in 5-dB steps|
|Line / Mic level:||20 dB, switchable|
operation: 0°C to +40°C,
storage: –20°C to +70°C
|Receiver Principle:||double superheterodyne|
|Diversity principle:||Antenna switching diversity via internal antennas|
|Power supply:||12 V DC nom. / 300 mA|
|AF frequency response:||50 to 16,000 Hz (–3 dB)|
|Power supply:||2 AA size batteries, 1.5 V|
|AF frequency response:||SKM 835: 80-16,000 Hz|
