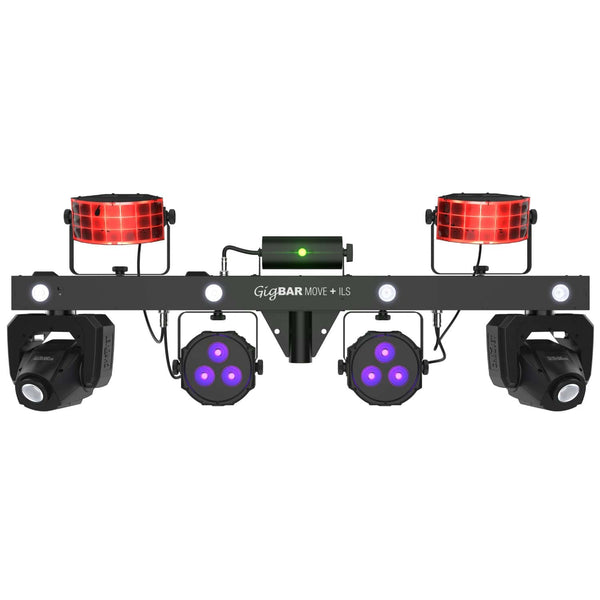

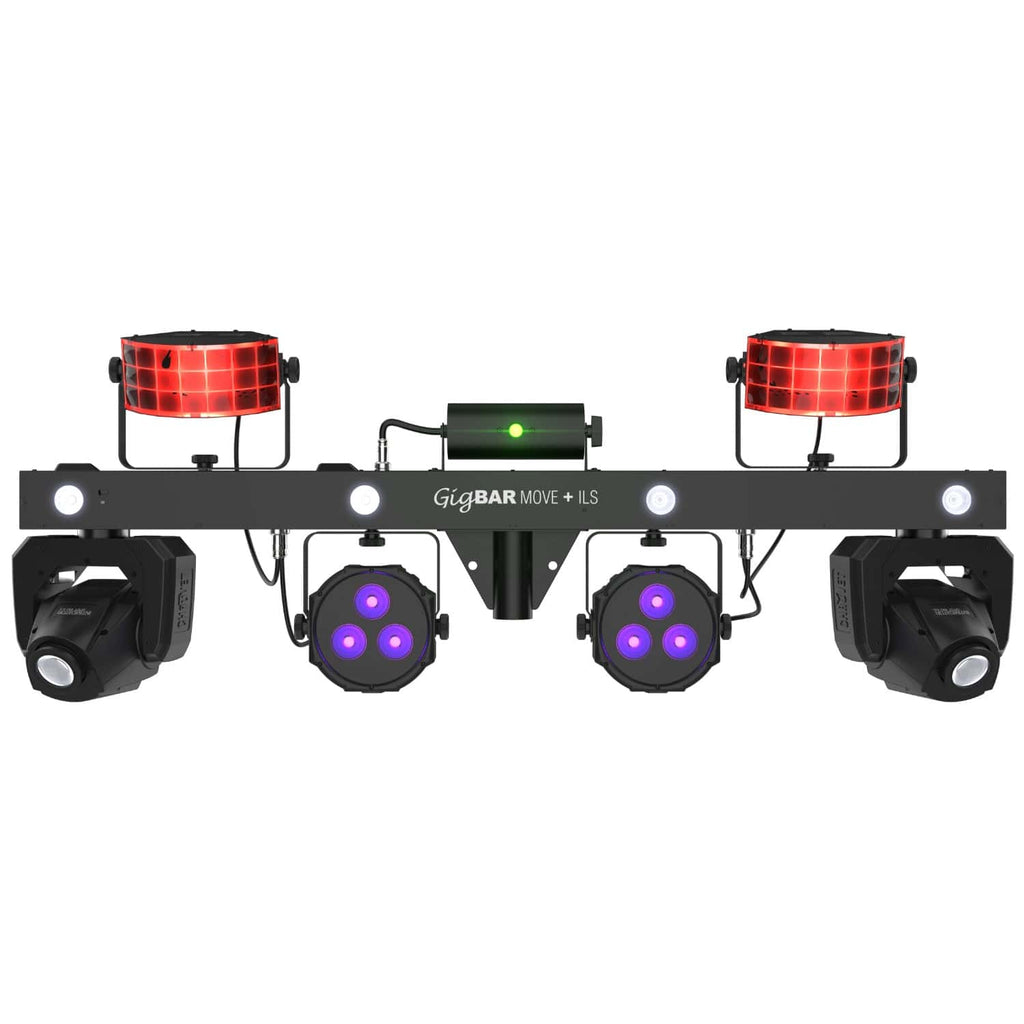

Chauvet GigBAR Move + ILS
Chauvet GigBAR Move + ILS
5-in-1 lighting system - includes 32W moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar.
Frequently bought together:
The future of easy lighting synchronization is here with the Chauvet GigBAR Move + ILS. GigBAR Move + ILS can control any ILS-enabled fixture, wired or wirelessly. GigBAR Move + ILS is a 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar.
Easy navigation and access to all the powerful 32-watt moving head functions can be accessed directly from the full-color LCD display and Totem Mode keeps the moving heads focused on the dance floor. Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects.
GigBAR Move + ILS gives you individual control of each effect to ensure your show looks the way you need it to, but gone is the need to aim a remote directly at the unit!
The included RF remote triggers built-in shows without needing line of sight operation. Other easy control options include stand-alone mode, DMX, or wireless footswitch. The GigBAR Move + ILS package includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup.
- 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
- ILS compatibility for use in the ILS ecosystem (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
- Control any ILS-enabled fixture wirelessly with built-in D-Fi transceiver
- Use the included RF remote to trigger the built-in shows without needing line of sight
- Powerful moving heads with separate color and gobo wheels allow for creative programming
- Totem Mode keeps the moving heads focused on the dance floor
- Easy navigation and access to all moving head functions directly from the full-color LCD display
- Safely mounts to truss or ceilings using the 3/8 in threaded inserts
- System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup
- Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects
- Individual control of each effect ensures your show looks the way you need it to
- Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch
What's in the box:
- 1 x Chauvet GigBar Move Plus ILS
- 1 x Power cord
- 1 x RF Remote

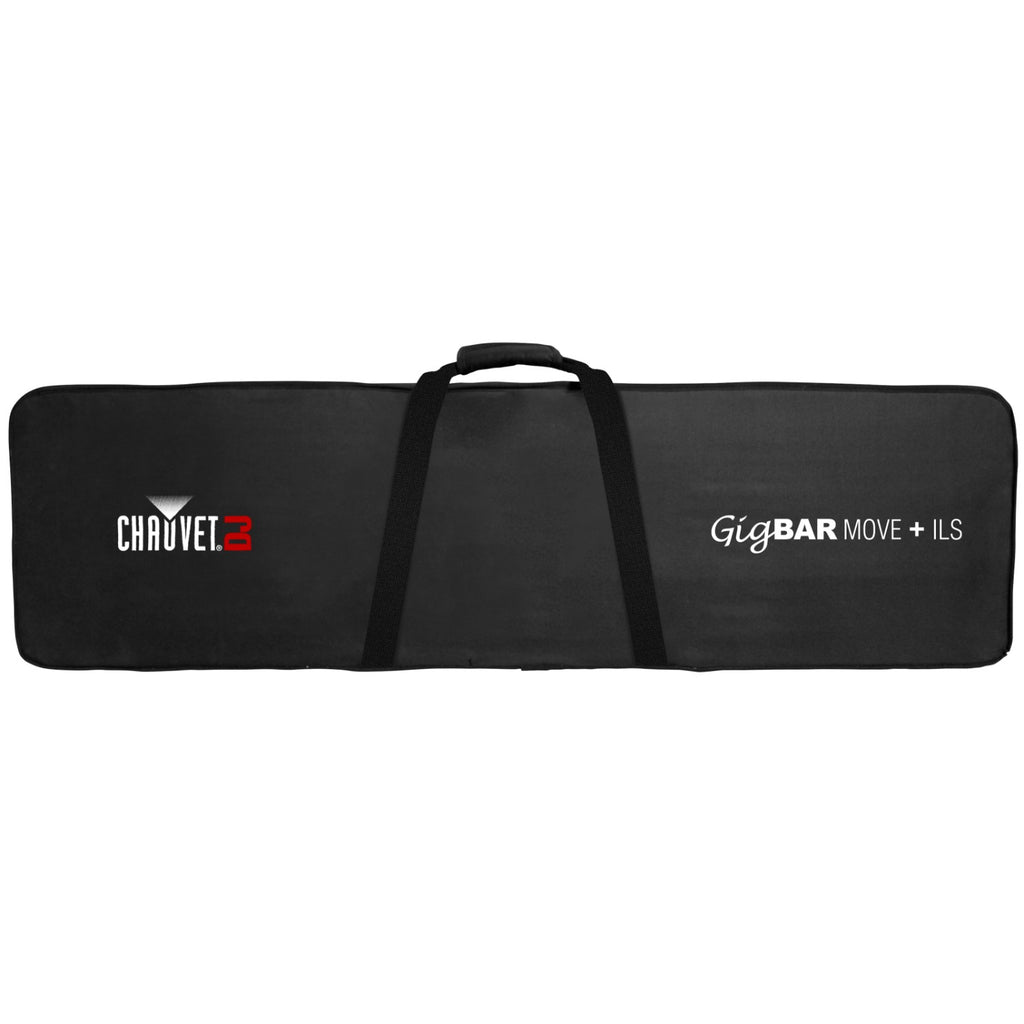

- 1 x Carry bag

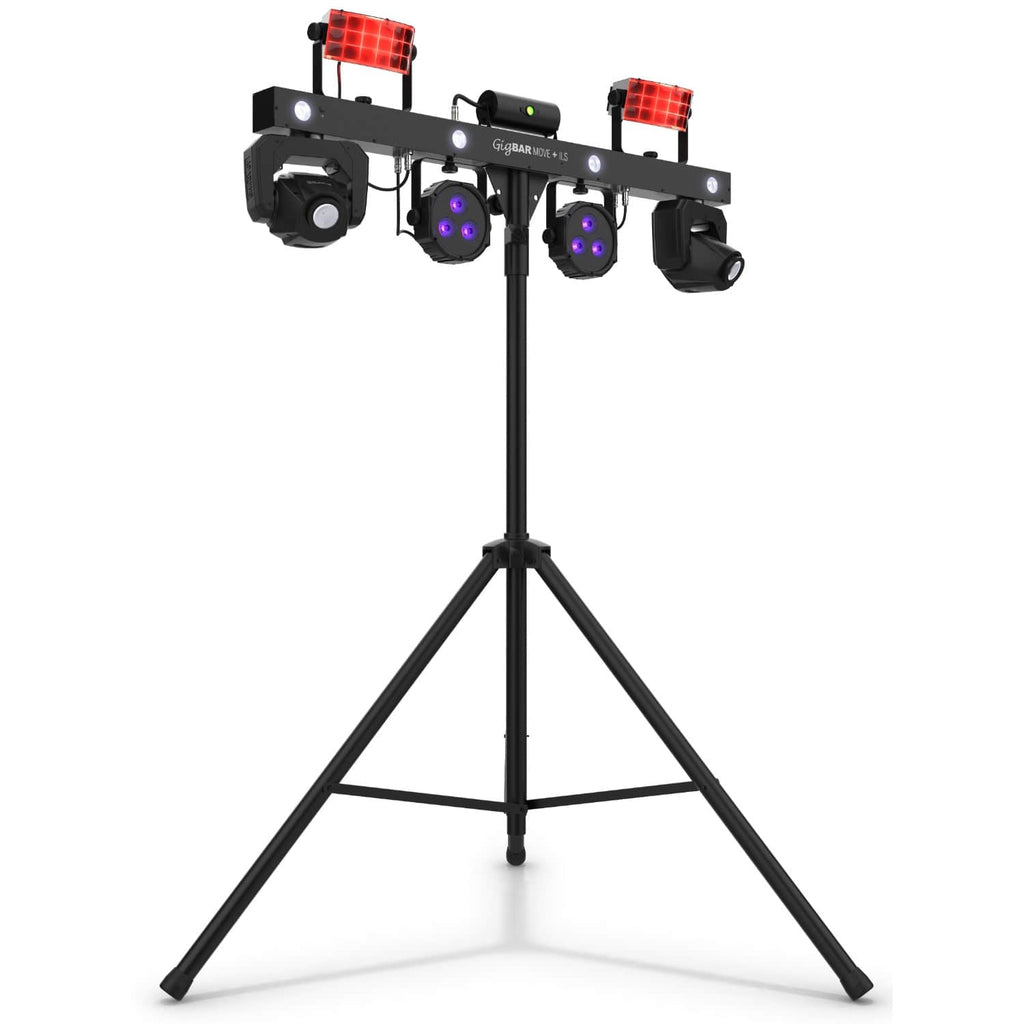

- 1 x Tripod
- 1 x Tripod carry bag
- 1 x Footswitch
- 1 x User Manual
- 5-in-1 lighting system - includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
- ILS compatibility - a complete lighting ecosystem that provides an advanced, coordinated lightshow across multiple fixtures
- Control any ILS-enabled fixture wirelessly with built-in D-Fi transceiver
- Use the included RF remote to trigger the built-in shows without needing line of sight
- Powerful moving heads with separate color and gobo wheels allow for creative programming
- Totem Mode keeps the moving heads focused on the dance floor
- Easy navigation and access to all moving head functions directly from the full-color LCD display
- Safely mounts to truss or ceilings using the 3/8 in threaded inserts
- Built-in UV LEDs illuminate fluorescent objects for dazzling blacklight effects
- Individual control of each effect ensures your show looks the way you need it to
- Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch
- System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup
| DMX Channels: | 3, 29, or 51 |
| DMX Connectors: | 3-pin XLR |
| Pan and Tilt: | 540°/180° |
| Moving Head Colors: | 9 + open, split colors, continuous scroll at variable speeds |
| Mobing Head Gobos: | 9 + open, continuous scroll at variable speeds |
| Light Source: |
(pars): 3 LEDs (hex color RGBAW+UV) 6 W (2 A), 50,000 hours life expectancy (strobe): 4 LEDs (cool white) 5 W (1.2 A), 50,000 hours life expectancy (derby): 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W (2 A), 50,000 hours life expectancy (moving head) 1 LED (cool white) 32 W, (3 A), 50,000 hours life expectancy (Laser) 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 100 mW (blue) laser diode |
| Strobe Rate: | 0 to 30 Hz |
| Beam Angle: |
(moving head): 17° (pars): 22° (strobe): 30° |
| Field Angle: |
(pars): 33° (strobe): 62° |
| Coverage Angle: |
(derby): 131° (laser): 93° |
| Illuminance: |
(pars): 1,205 lux @ 2 m (per par) (moving head): 5,140 lux @ 2 m (per head) (strobe): 130 lux @ 2 m |
| Footswitch Operating Frequency: | 433 MHz |
| Footswitch Max Unobstructed Distance: | 100 ft (30.5 m) |
| Max Unobstructed Distance (D-Fi): | 600 ft (183 m) |
| Footswitch Battery: | 9 V alkaline |
| Included Controllers: | RF remote, wireless footswitch |
| Cable Length: | 10 ft (3 m) |
| Power Linking: | 12 units @ 230 V |
| Input Voltage: | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current: | 248 W, 1.8 A @ 230 V, 50 Hz |
| Weight: | (bar only) 31 lbs (14 kg) |
| Size: | 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm) |
| Stand Height: | 4.8 ft to 8.3 ft (1.5 to 2.5 m) |
| Fits Tripod Size: | 1.5 in (37.4 mm) |
| Tripod Thickness: | 1.37 in (35 mm) |
| Optional Controllers: | RF |
| RF Remote Battery: | 23A, 12 V alkaline |
| Approvals: | CE, UKCA, RoHS, FCC, FDA |
