Ortofon Stylus Nightclub E

Ortofon Stylus Nightclub E

Ortofon Stylus Nightclub E
Highlights

Replacement Stylus for the Ortofon Nightclub MK1 Cartridge - Elliptical Stylus Version

Click here for Features and Specifications
We are here to help! 020 8579 0144
Regular price £64.95 £0.00 Unit price per
Out of Stock

Out of Stock

Call us for the
latest availability
020 8579 0144

Free next day delivery

On all orders over £100

Frequently bought together:

Keep browsing or just give us a call: 020 8579 0144. We are here to help!

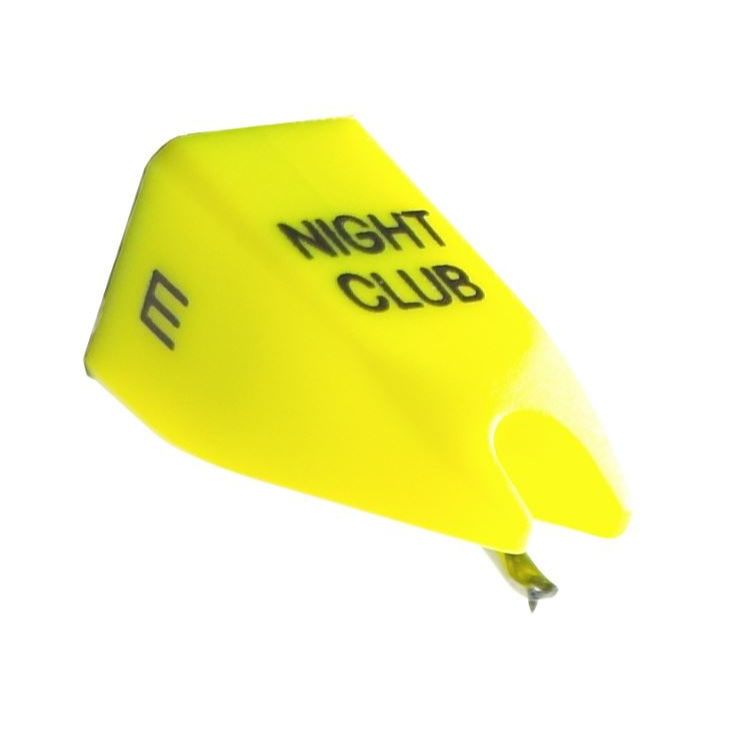

Ortofon Nightclub MK1 E Replacement Stylus

Nightclub E is equipped with Special Elliptical diamond. Perfect for usage in clubs. Superb sound quality.

Club DJs and studio workers believe the Nightclub E to be an absolute high-end cartridge. It is indeed a no-nonsense performer with fascinating musical resources.

It's output is superb with a frequency response rating high enough to compare the Nightclub E to any audiophile cartridge.

The special elliptical stylus guarantees sound with insignificant scratching.

  • Replacement Stylus for both the Ortofon Concorde Nightclub MK1 and the Ortofon OM Nightclub MK1
Output voltage at 1000Hz, 5cm/sec.: 8 mV
Channel balance at 1kHz: 1.5 dB
Channel separation at 1kHz: 23 dB
Channel separation at 15 kHz: 15 dB
Frequency range at -3dB: 20-22.000 Hz
Frequency response: 20-20.000 Hz +/- 1.5 dB
Tracking ability at 315 Hz at recommended tracking force: 65 micrometre
Compliance, dynamic lateral: 20 micrometre/m N
Stylus type: Elliptical
Stylus tip radius: r/R 8/18 micrometre
Tracking force range: 2.0-5.0 g (20-50 mN)
Tracking force recommended: 3.0 g (30 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 1000 Ohm
Internal inductance: 580 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 200-600 pF
Concorde cartridge weight: 18.5 g
