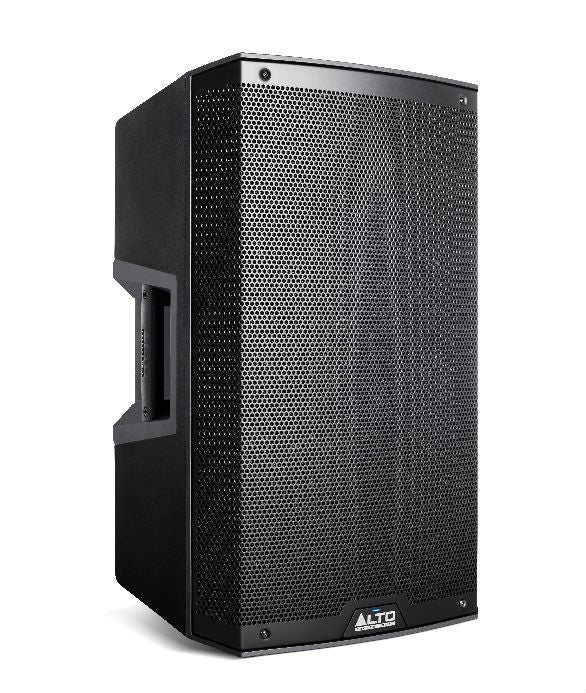

Alto TS315 Speaker

Alto TS315 Speaker

Alto TS315 Speaker
Alto TS315 Speaker
Alto TS315 Speaker
Highlights
  • 2000 W peak (1300 LF + 700 HF) 1000 W continuous RMS (650 LF + 350 HF)
  • 15-inch (381 mm) LF driver, 3-inch (76 mm) high-temperature voice coil
Click here for Features and Specifications
We are here to help! 020 8579 0144
Regular price £399.00 £0.00 Unit price per
Out of Stock

Out of Stock

Call us for the
latest availability
020 8579 0144

Free next day delivery

On all orders over £100

Frequently bought together:

Keep browsing or just give us a call: 020 8579 0144. We are here to help!

Expectations Exceeded

The new Alto Professional Truesonic TS3 Series does everything you demand in a no-compromise family of professional loudspeakers. These speakers solve every performance and installation challenge you have. They are high-performance in every sense: Their new transducers and amplifiers enable them to play extremely loud and clear, without compromise or restriction. And they are “high-performance” from a concept and manufacturing standpoint. Alto made sure that every aspect of their design outperformed what it had to do. The end result are loudspeakers that achieve a level of excellence and refinement that defies expectations.

Defies your expectations

There are four models in the new TS3 range: The TS308, TS310, TS312 and TS315, with 8-10-12- and 15-inch woofers respectively. The range shares a new 2000-watt peak (1000-watt continuous) amplifier, a significant advance over the 1100-watt peak (550-watt continuous) amplifiers in the TS2.

The four models boast all-new low-frequency drivers, designed to play louder and handle more power than their already-impressive predecessors, the wildly-successful TS2 Series. They also have a new horn-loaded high-frequency driver. This impressive transducer has a brand-new heat sink design that provides exceptional heat dissipation for impressive power-handling, even at all-night-long concert levels. Because these new drivers can safely handle the additional power, the TS3’s take full advantage of the increased wattage and will play at higher SPLs with lower distortion.

Alto have even made the TS3’s easier to use, with an updated control panel and clearer control indications and detents that make for a faster, more precise setup.

2000 watts of bi-amplified power, newly-designed drivers and easier, more satisfying controls and setup—the new TS3 range doesn’t merely meet your requirements. It makes you re-think what’s possible.

  • 2000 W peak (1300 LF + 700 HF) 1000 W continuous RMS (650 LF + 350 HF)
  • 15-inch (381 mm) LF driver, 3-inch (76 mm) high-temperature voice coil
  • 1.4-inch (35 mm) neodymium magnet HF driver with precision wave guide
  • Pole-mountable, wedge monitor, bracket installation or flown application with integral M10 suspension points
  • Integrated 2-channel mixer with dual XLR 1/4-inch combo mic/line inputs, independent level controls, XLR Link output, Contour EQ switch and Ground-Lift switch
  • Custom-engineered high-efficiency class D amplifiers with passive cooling design – no fan means the speaker runs cleaner, quieter and has greater long-term reliability
  • Designed and tuned in the USA
Output Power: 2000 W peak (1300 LF + 700 HF)
1000 W continuous RMS (650 LF + 350 HF)
LF Driver: 15-inch (381 mm) LF driver, 3-inch (76 mm) high-temperature voice coil
HF Driver: 1.4-inch (35 mm) neodymium magnet HF driver with precision wave guide
Crossover: 2 kHz
Maximum SPL: 134 dB peak, 131 dB continuous (dB SPL @ 1 m)
Frequency Response: 50 - 20 kHz (+/- 3 dB)
Frequency Range: 43 Hz - 22 kHz (-10 dB)
Horn Coverage: 90° H x 60° V nominal
Equalization: Contour Switch Low and High Frequency +3dB Boost
Connectors: (2) XLR/TRS 1/4” (6.35 mm) combo inputs, (1) XLR link output, (1) IEC power cable input
Controls: (2) Volume, Power on/off switch, Contour switch, Ground-Lift switch
Indicators: 2 x Power LED (front and rear), Clip limiter LED
Protection: Electronic clip, Thermal and transducer overdrive protection
Power Connection: IEC with Mains Fuse
AC Voltage Input: 100,110-120,220–240 V, 50/60 Hz
Enclosure: Trapezoidal, injection-molded, polypropylene enclosure, with perforated steel grille
Mounting/Installation: 36 mm standard pole mount, Wall or ceiling mount using TSB125 bracket, Flown application with integral M10 suspension points, Wedge monitor
Dimensions: (H x W x D): 25.7” x 16.6” x 15.4” / 652mm x 421mm x 392mm
Net Weight: 41.3 lbs. / 18.8 kg.
Design Origin: Designed and tuned in the USA
Accessories (sold seperately): TSB125 Bracket, TS215 Cover
