Allen and Heath Qu-SB (Ex-Display)
Allen and Heath Qu-SB (Ex-Display)
- B-Stock: Ex-Display
- Excellent Condition.
- With Original Box and accessories
Allen & Heath Qu-SB is an ultra-compact digital mixer which frees you to mix from anywhere in the venue and provides a smart, portable solution for performing bands and artists.
Frequently bought together:
Capture Every Detail
Qu has been designed from the ground up to deliver professional sound quality, from input to output.
Qu-SB features sixteen AnalogiQ digitally controlled preamps with advanced zero-crossing detection and a padless 1dB-step gain stage.
The AnalogiQ preamp design has been refined to offer superb transparency, minimal distortion and an ultra-low noise floor, with a warm, musical sound that is missing from some digital consoles.
The analogue signal is captured by high-class, low latency 24bit analogue to digital converters, which are matched to 24bit digital to analogue converters to deliver the required high quality output.
World Class Processing & FX
Qu’s RackFX dynamics and FX algorithms are derived from those used in our pro touring series.
Some of the world’s most respected audio engineers have chosen to use RackFX on tour in preference to top-end plug-ins and external FX units.
Qu boasts 4 stereo RackFX engines, featuring lovingly crafted emulations of legendary classic reverbs, gated reverbs, delays, modulators, flangers and more. FX are returned to the mix on dedicated return channels, so you’re not tying up your mono and stereo input channels, and each Stereo FX Return has a dedicated 4 band PEQ.
USB Interface
Record. Stream. Mix.
Qu’s built-in interface streams multitrack audio to your Mac or PC via a flexible patching system. All input channels and the Main LR can be recorded at the same time, or you may choose to record alternative sources such as FX returns or a pair of mixes.
The returns from the computer can be assigned to the input channels. The interface is class-compliant on Mac OS X, with drivers available for Windows systems. It is recognized immediately by any DAW supporting ASIO or Core Audio, including Logic, Cubase, Reaper, and Pro Tools.
Standard MIDI control is tunnelled over the USB and network connections and can be mapped to the faders of your favourite DAW using the A&H MIDI Control app, which provides easy setup and emulation of HUI or Mackie Control protocols on Mac OS X and Windows systems.
Want to livestream? Simply send a stereo mix over USB and your streaming software will handle the rest.
Qu-Drive
Record without a computer
Qu has an integrated multitrack USB recorder, providing 18 channels of 48kHz, 24bit recording and playback directly to and from your USB key or hard drive.
Capturing multitrack recordings of your shows has never been easier. A selectable stereo pair can be recorded alongside the 16 mono channels, and multitrack audio can be played back to the 16 mono inputs plus ST1.
In addition, Qu-Drive provides stereo recording patchable from any pair of mix outputs, the Main LR (pre, post, or summed to mono), or even the PAFL bus, with 2-track stereo playback to ST3.
AMM
Automatic Mic Mixer
AMM is vital in applications such as conferences, meetings and panel discussions where multiple microphones are open at the same time.
By reducing background noise and minimising the risk of feedback, the Automatic Microphone Mixer helps engineers manage the levels of multiple mic inputs, ensuring that each speaker is heard clearly.
The D-Classic dynamic gain sharing algorithm is inspired by industry standard automixers. Up to 16 microphone sources can be mixed simultaneously, with each channel featuring a priority setting that determines its weight in the total system gain.
The Strong, Silent Type
Strong

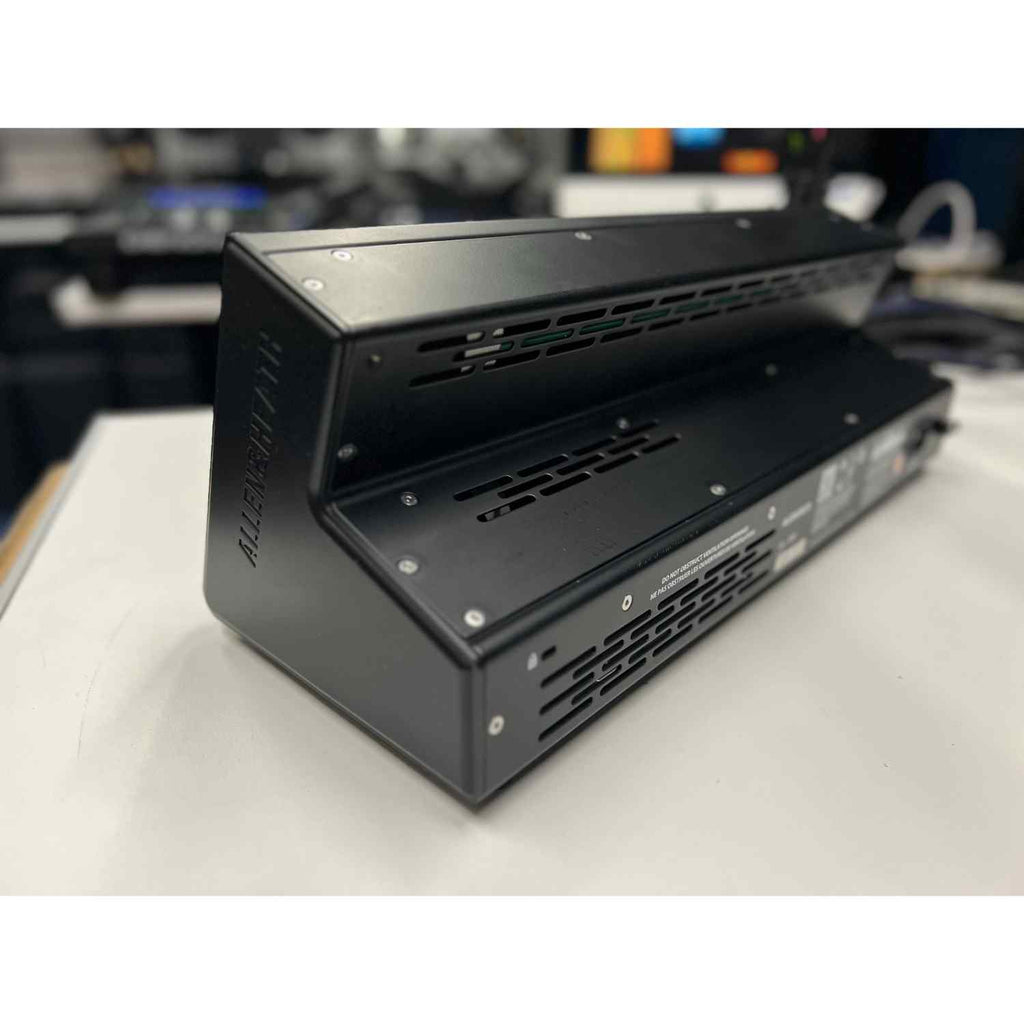

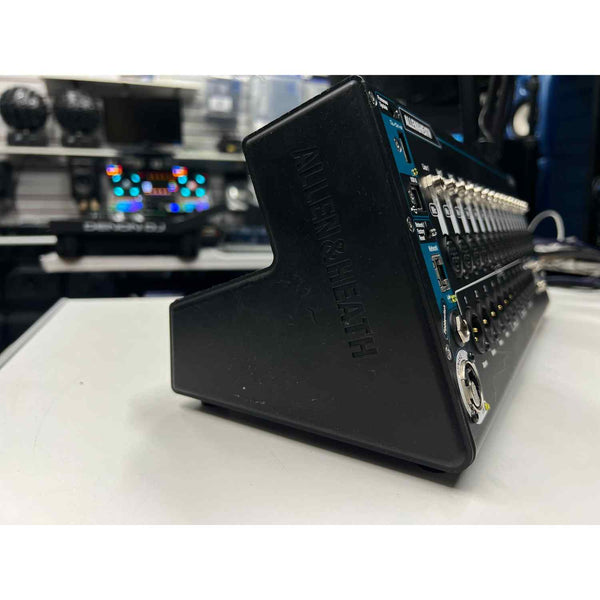

Made from 18-gauge, cold-rolled Zintec steel, Qu’s distinctive frame is designed for strength and rigidity. The chassis has been rigorously tested in the lab and withstands extreme conditions, including heavy physical impact.
Silent
Silence is essential in live and studio environments. Qu’s sleek profile promotes optimal airflow through the mixer, eliminating the need for cooling fans and ensuring silent operation.
Remote Control Apps
Qu-SB integrates seamlessly with the fully featured Qu-Pad iPad app, providing fast and intuitive access to all settings. This includes channel processing, meters and RTA views, FX racks, scene management, USB audio control, setup menus, and more.

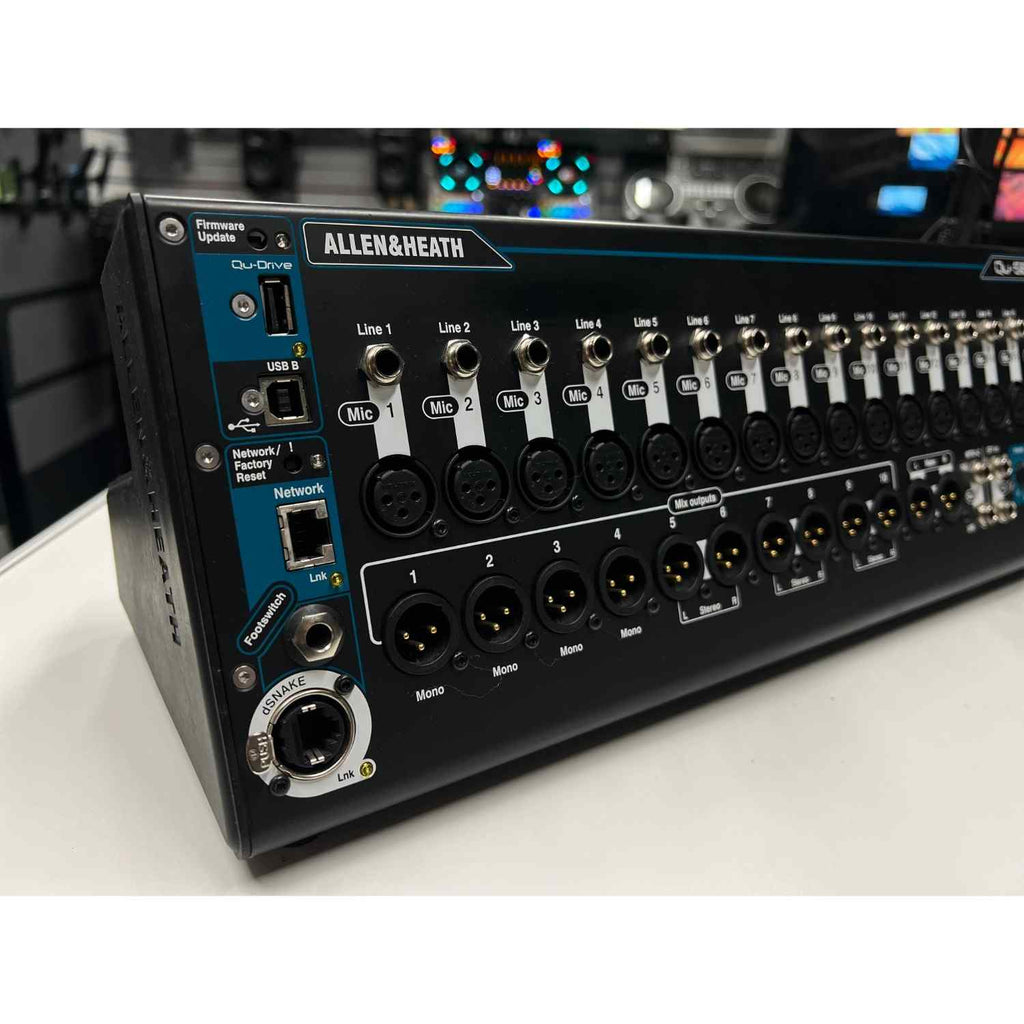

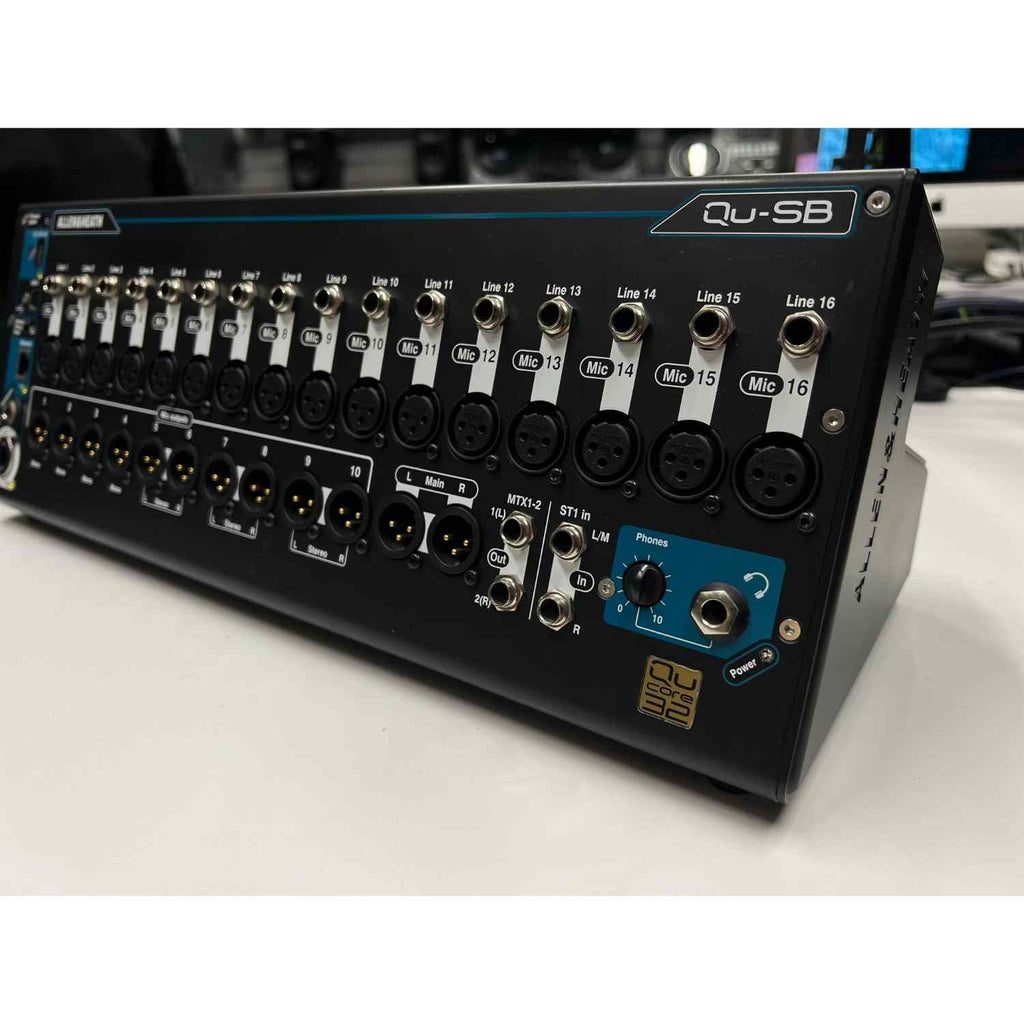

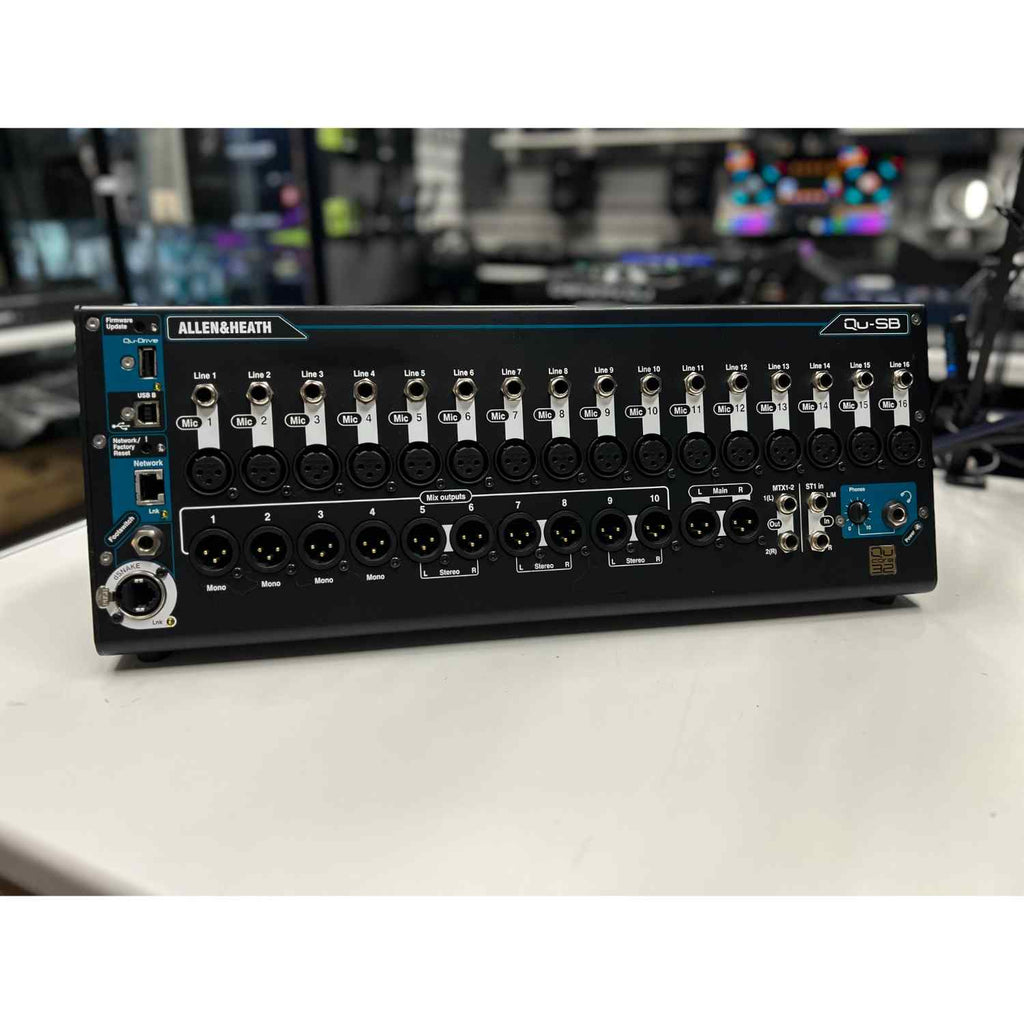

- 16 local Mono Mic/Line Inputs (TRS + XLR)
- Recallable AnaLOGIQTM Preamps
- 1 Stereo Input (TRS)
- 12 local Mix Outputs (XLR)
- 1 Stereo Output (TRS)
- Expandable up to 32 input, 24 out using dSNAKE AudioRack
- Up to 11 Monitor Mixes (4 mono + 7 stereo)
- 4 Stereo Groups (switchable to Mix mode)
- 4 FX Engines
- 4 dedicated FX Sends / Returns
- 4 Mute Groups
- 4 DCA Groups
- 32x32 USB Audio Interface
- Qu-Drive Multitrack Recording / Playback direct to USB device
- dSNAKETM Remote Audio Port
- Qu-Pad fully-featured iPad App
- Qu-You iPhone / Android personal monitoring app
- Qu-Control customisable iOS app for simple wireless control
- Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
- Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
- Automatic Mic Mixer
- Channel Ducker on all Inputs
- ProFactory Mic Presets
- iLive FX Library
- Built-in Signal Generator
- RTA with Peak Band indication
- Spectrogram to aid feedback elimination and room acoustics
- DAW MIDI Control
- Compatible with ME Personal Mixing System
- 19" Rack Mountable with optional rack ears
| Mixer Specification: | QU-SB Digital Mixer |
| Mic/Line Inputs: | Balanced XLR and 1/4" TRS jack |
| Input Sensitivity (XLR / TRS): | -60 to +5dBu / -50 to +15dBu |
| Analogue Gain: | -5 to +60dB, 1dB steps |
| Maximum Input Level (XLR / TRS): | +19dBu / +29dBu |
| Input Impedance (XLR / TRS): | >5kOhms / >10kOhms |
| THD+N (Unity Gain): | 0.0005% (-89dBu), 20Hz–20kHz |
| THD+N (Mid Gain +30dB): | 0.001% (-83dBu), 20Hz–20kHz |
| Stereo Line Inputs: | ST1 Balanced 1/4" TRS (half-normalled) |
| Stereo Input Source: | Local, dSNAKE, or USB |
| Input Sensitivity (ST1 / ST2 / ST3): | +4dBu / 0dBu |
| Trim: | +/- 24dB |
| Maximum Input Level (ST1 / ST2 / ST3): | +22dBu / +18dBu |
| Input Impedance (Stereo): | >7kOhms |
| SoftKeys: | 10 |
| Mute Groups: | 4 |
| DCA Groups: | 4 |
| Network: | TCP/IP Ethernet for MIDI and iPad app |
| Stereo Linking: | Odd/even input pairs |
| Linked Parameters: | EQ, dynamics, insert, delay, assignments, sends |
| Link Options: | Preamp, polarity, sidechains, fader/mute, pan |
| Main Outputs: | Balanced XLR |
| Output Impedance: | <75Ohms |
| Nominal Output Level: | +4dBu = 0dB meter reading |
| Maximum Output Level: | +22dBu |
| Residual Output Noise: | -90dBu (muted, 20Hz–20kHz) |
| Polarity: | Normal / Reverse |
| High Pass Filter: | 12dB/oct, 20Hz–2kHz |
| Output Delay: | Up to 85ms |
| Matrix Outputs: | MTX 1–2 Balanced 1/4" TRS |
| Matrix Source: | Patchable / LR post-fade |
| Gate Sidechain: | Self-key |
| Gate Threshold: | -72dBu to +18dBu |
| Gate Depth: | 0 to 60dB |
| Gate Attack: | 50microseconds–300milliseconds |
| Gate Hold: | 10ms–5s |
| Gate Release: | 10ms–1s |
| PEQ Type: | 4-Band fully parametric |
| PEQ Frequency Range: | 20Hz–20kHz |
| PEQ Gain: | +/- 15dB |
| Band 1: | LF Shelving (Baxandall) / Bell |
| Band 2: | Bell |
| Band 3: | Bell |
| Band 4: | HF Shelving (Baxandall) / Bell |
| Bell Width: | Non-constant Q, 1.5 to 1/9 octave |
| Compressor Sidechain: | Self-key |
| Threshold: | -46dBu to +18dBu |
| Ratio: | 1:1 to infinity |
| Attack: | 300microseconds–300milliseconds |
| Release: | 100ms–2s |
| Knee: | Soft / Hard |
| Compressor Types: | Peak Manual, RMS Manual, SlowOpto, PunchBag |
| Dynamic Range: | 112dB |
| Frequency Response: | +0/-0.5dB, 20Hz–20kHz |
| Headroom: | +18dB |
| Internal Operating Level: | 0dBu |
| Channel Direct Out to USB: | Follow Fader, Follow Mute |
| USB Source Options: | Post-Preamp, Pre-EQ, Post-EQ, Post-Delay |
| Meter Calibration: | 0dB meter = -18dBFS (+4dBu) |
| Peak Indication: | -3dBFS (+19dBu) |
| Signal Indication: | -48dBFS (-26dBu) |
| Meter Type: | Fast (peak) response |
| Sampling Rate: | 48kHz +/- 100PPM |
| ADC / DAC: | 24-bit Delta-Sigma |
| Latency (XLR In to XLR Out): | 1.2ms |
| Latency (XLR In to AES Out): | 0.7ms |
| Operating Temperature: | 0°C to 35°C |

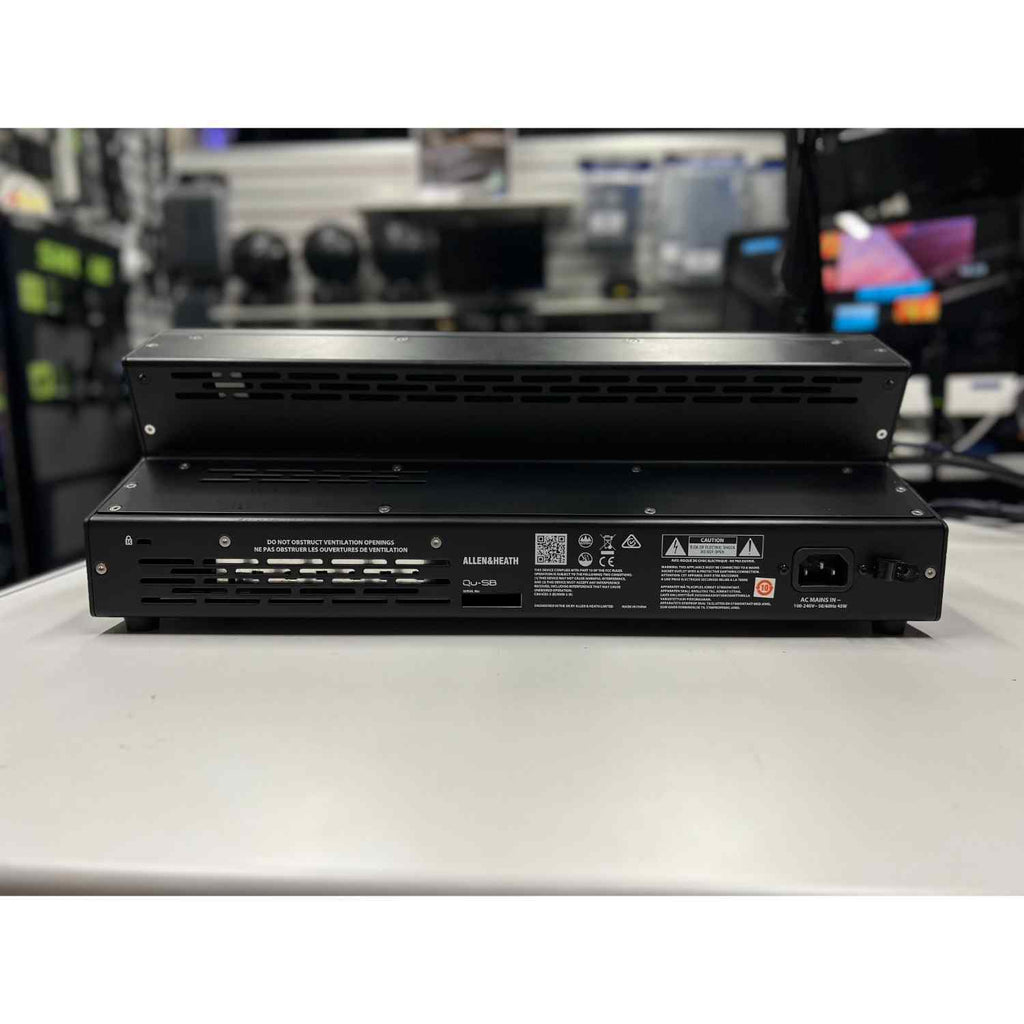

| Mains Power: | 100–240V AC, 50/60Hz |
| Maximum Power Consumption: | 150W |
| Internal FX Engines: | 4x RackFX |
| FX Types: | Reverbs, Delays, Gated Reverb, ADT, Chorus, Symphonic Chorus, Phaser, Flanger |
| FX Returns: | 4 stereo returns with PEQ, routing, fader, pan |
| Qu-Drive Multitrack Record: | 18 channels, 48kHz/24-bit WAV |
| Qu-Drive Multitrack Playback: | 18 channels, 48kHz/24-bit WAV |
| Stereo Record: | 2 channel, 48kHz/24-bit WAV |
| Stereo Playback: | 44.1 or 48kHz, 16 or 24-bit WAV |
| USB Audio Streaming: | USB-B, Core Audio compliant |
| USB Send: | 32 channels, 48kHz/24-bit |
| USB Return: | 32 channels, 48kHz/24-bit |
| PAFL: | PFL or stereo in-place AFL |
| Talkback: | Assignable to any mix, 12dB/oct HPF |
| Signal Generator: | Sine, White Noise, Pink Noise, Band-pass Noise |
| RTA: | 31-band, 1/3 octave, 20Hz–20kHz |
| Dimensions (Desk / Stagebox): | 435.5x174.5x161mm |
| Dimensions (Rack Mounted): | 483x135.4x177mm (4U) |
| Packed Dimensions: | 550x270x270mm |
| Unpacked Weight: | 5.7kg (12.7lbs) |
