Allen and Heath ZED60-10FX 4-Channel 60mm Faders USB FX
Allen and Heath ZED60-10FX 4-Channel 60mm Faders USB FX
- 4 Mono Mic/Line inputs, 2 featuring Class A FET high-impedance DI inputs.
- 2 Dual stereo line inputs for keyboards, media players, or line-level sources.
Frequently bought together:

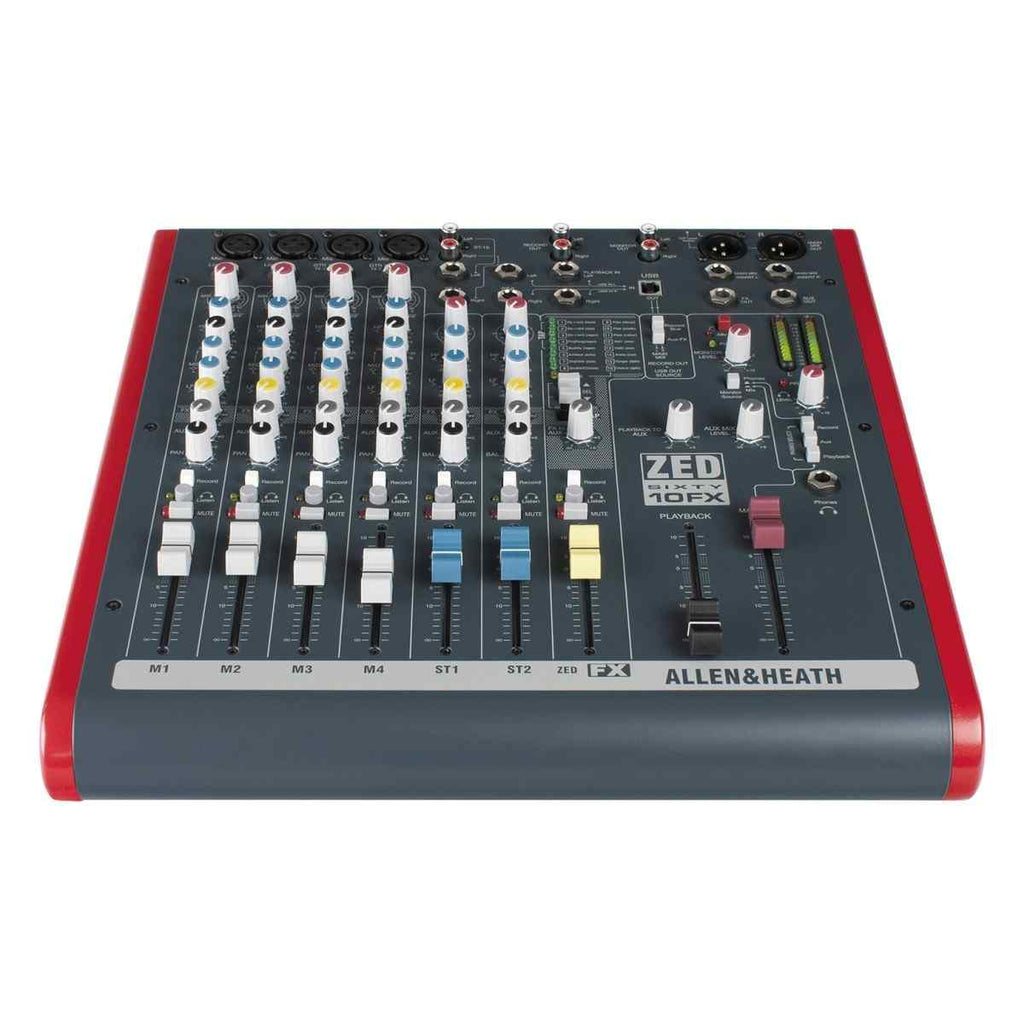

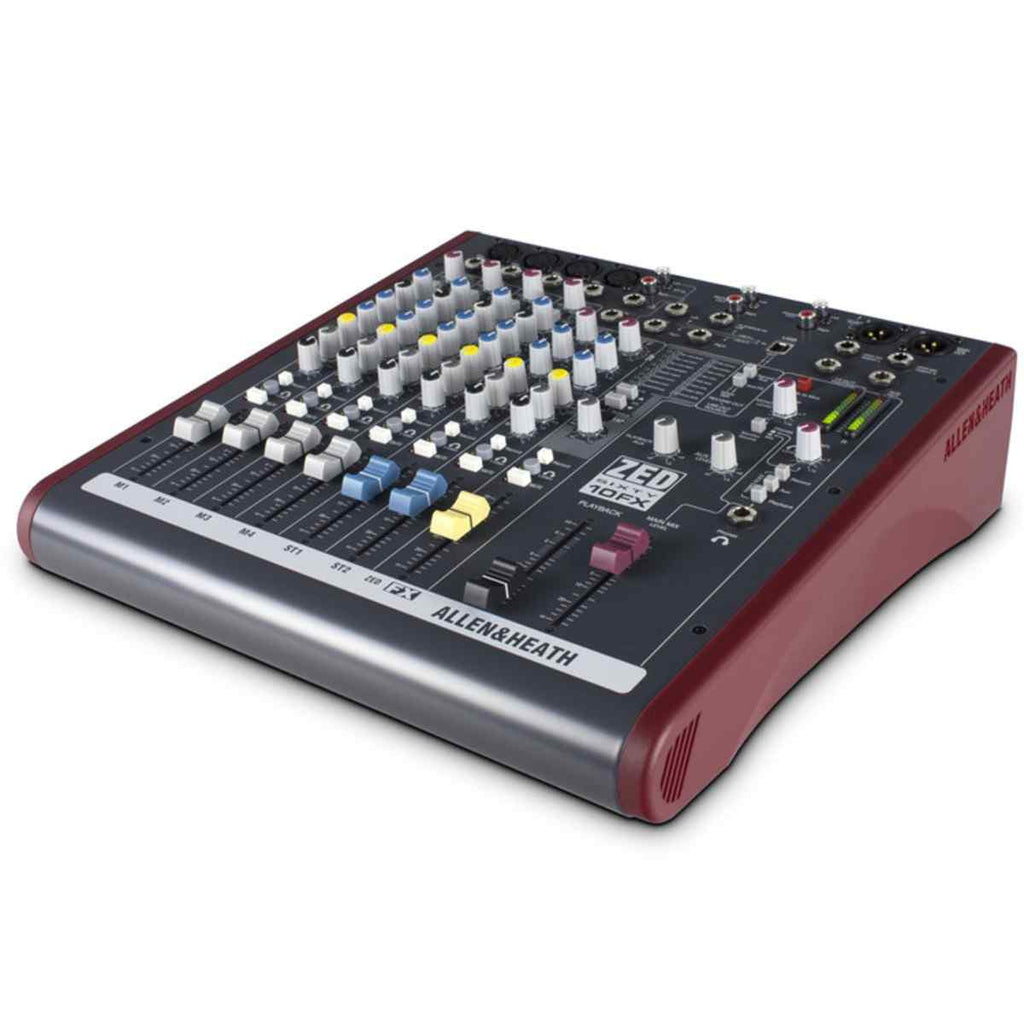

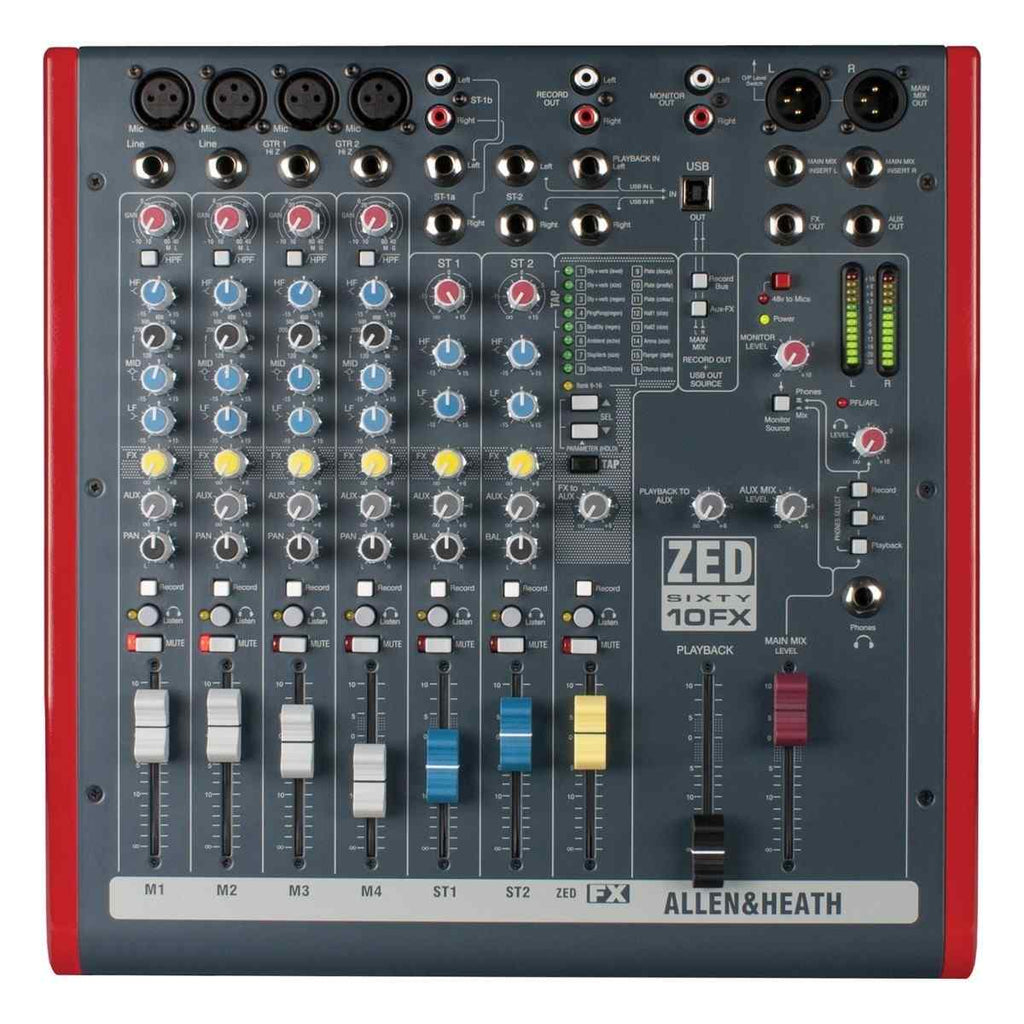

The Allen & Heath ZED60-10FX is a compact 10-channel analogue mixer with integrated USB audio connectivity and built-in 24-bit digital effects. Designed for solo performers, acoustic duos, small bands, and home recording setups, it takes the core feature set of the ZED-10FX and adds 60mm professional-quality faders across all channels for precise level control.
Tactile Fader Control & Guitar Preamp Architecture
60mm Professional Faders: Upgrades standard rotary level controls to smooth, linear 60mm faders for intuitive, hands-on mix adjustment during live performances and recording sessions.
Class A FET High-Impedance Inputs: Inputs 3 and 4 feature Class A FET DI inputs with switchable +26dB level boost, allowing high-output or passive guitar and bass pickups to plug directly into the desk without external DI boxes. The preamp architecture recreates the warm harmonic saturation of classic tube gear.
MusiQ 3-Band Swept-Mid EQ: Mono channels feature a responsive 3-band equaliser with a sweepable mid-frequency utilising MusiQ technology (variable Q response) to optimise tonal shaping without introducing harshness.
Integrated Digital Multi-FX Engine
16 Studio-Grade Presets: Includes a built-in 24-bit effects processor featuring high-grade reverbs, delays, ping-pong delays, double-tracking algorithms, flangers, and choruses.
Tap Tempo Control: Dedicated tap-tempo button allows real-time synchronisation of delay settings to match song tempo on stage.
USB Interface & Signal Routing
2 In / 2 Out USB Interface: Integrated 16-bit USB audio interface (32 kHz to 48 kHz sample rates) enables simple plug-and-play recording and playback on PC and Mac.
Configurable USB Bus Routing: Route the L/R main mix, pre-fade Aux, or FX sends directly to the computer via USB. USB returns can be assigned directly to the L/R master mix or to a dedicated stereo channel.
Rugged Build & Hardware Features
Neutrik Connectors: Fitted with heavy-duty Neutrik XLR and 1/4" jack connectors for stage reliability.
Substantial Monitoring Options: Features 12-segment LED meters, independent headphone level control, separate stereo 2-track record outputs (RCA), 1 Aux send, and 1 FX send per channel.
- 4 Mono Mic/Line inputs, 2 featuring Class A FET high-impedance DI inputs.
- 2 Dual stereo line inputs for keyboards, media players, or line-level sources.
- Smooth 60mm channel faders and master mix faders.
- Responsive 3-band EQ with sweepable mid (MusiQ) on mono channels; 2-band EQ on stereo channels.
- 16 internal 24-bit digital effects with parameter adjust and tap delay.
- Switchable global +48V phantom power for condenser microphones.
- 1 pre-fade Aux send and 1 post-fade FX send per channel.
- Configurable USB stereo audio in/out (16-bit / 48 kHz).
- Balanced XLR main stereo outputs with inserts.
- Rugged construction with individual channel circuit boards nutted to the top panel.
| Input Channels: | 10 Total (4 Mono Mic/Line, 2 Stereo Pairs) |
| Faders: | 8 x 60mm smooth-action faders |
| Mic Preamps: | 4 x High-fidelity preamps (MixWizard-based) |
| Guitar DIs: | 2 x High-impedance Class A FET DI inputs (Channels 3 & 4) |
| Phantom Power: | +48V Global switchable |
| Channel EQ: | 3-band with sweepable mid (Mono); 2-band (Stereo) |
| Internal FX: | 16 Presets (Delays, Reverbs, Chorus, Flanger, Echo) |
| USB Interface: | USB 1.1 compliant (16-bit; 32 kHz, 44.1 kHz, or 48 kHz) |
| Main Outputs: | 2 x Balanced XLR with main inserts |
| Auxiliary Sends: | 1 x Pre-fade Aux send, 1 x Post-fade FX send |
| Record/Monitor I/O: | RCA stereo record out, RCA monitor out |
| Frequency Response: | 10 Hz – 30 kHz (+0.5/-1 dB) |
| Dimensions: |
336 mm x 346 mm x 95 mm (13.2" x 13.6" x 3.7") (W x D x H) |
| Weight: | 3.8 kg (8.4 lbs) |
