Allen and Heath ZEDi-10FX 10-Channel Live + USB Recording Mixer with FX
Allen and Heath ZEDi-10FX 10-Channel Live + USB Recording Mixer with FX
- 4 in, 4 out USB Audio Interface (24-bit/96kHz)
- 4 Mic / Line Inputs with separate XLR and TRS jack sockets
Frequently bought together:
The Allen & Heath ZEDi-10FX is a 10-channel hybrid compact mixer and 4x2 USB audio interface, making it a great choice for both live and studio use. It provides musicians, recording artists, podcasters, and venues with the robustness and tactile control of an analogue mixer, combined with the adaptability and ease of a 4 in / 4 out USB interface. This model also features an onboard digital FX engine so you can quickly dial in studio-quality reverbs and delays.
Featuring a meticulously crafted GSPre boutique preamp design—inspired by the acclaimed GS-R24 studio recording console—the ZED offers remarkably low noise levels and ample headroom, delivering a signature analogue warmth and depth. Guitarists will appreciate that the ZEDi-10FX includes a pair of high-impedance Guitar DI inputs, eliminating the need for separate DI boxes when plugging guitars directly into the mixer.
Mixer and USB Interface in One
The Allen & Heath ZEDi-10FX offers the best of both worlds, incorporating a studio-quality 4 in / 4 out, 24-bit/96kHz USB audio interface for hassle-free recording, playback, and streaming when connected to a Mac or PC, or to an iOS device using the iOS camera kit. The USB output source can be configured in several different ways to match your workflow. ZEDi-10FX is class-compliant with Mac and iOS.

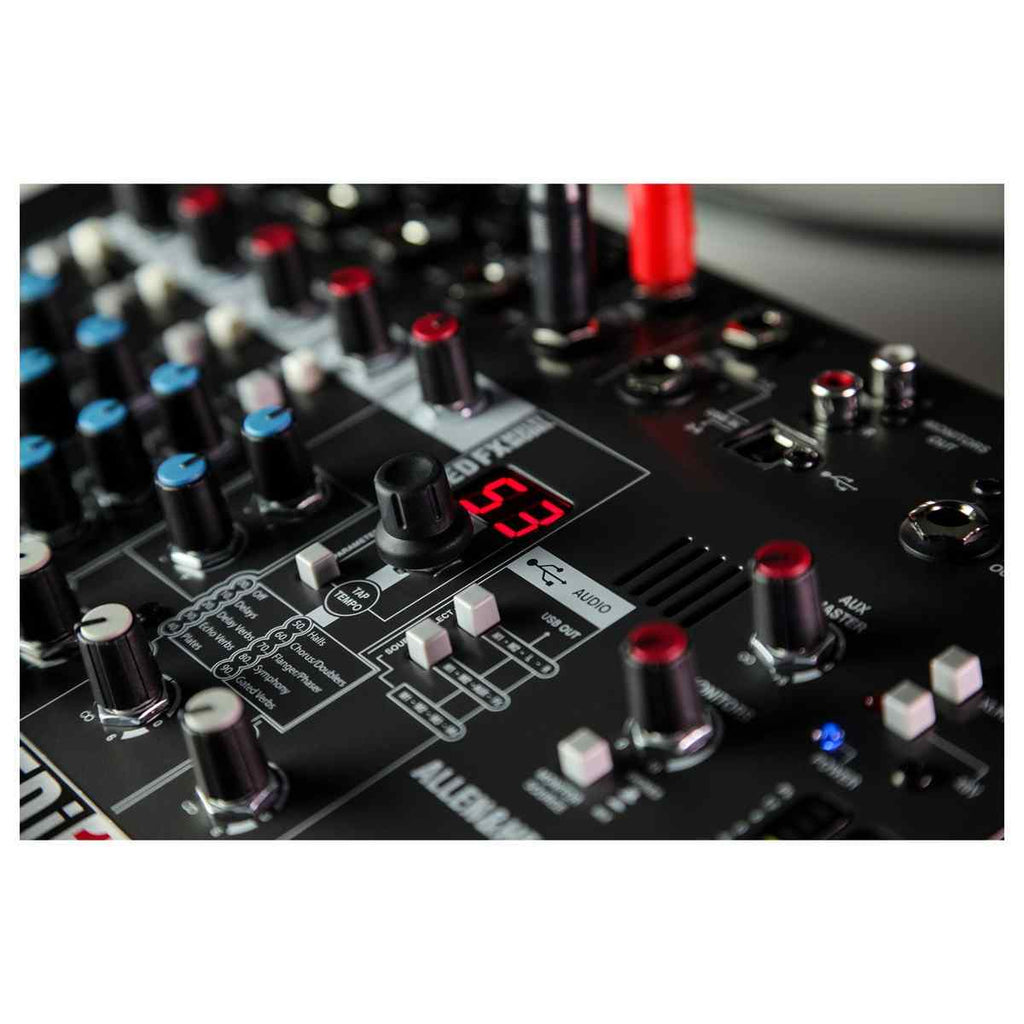

In-Built ZEDFX Multi-Model Engine
Allen & Heath ZEDi-10FX boasts a brand new suite of studio-quality reverbs and delays, painstakingly crafted to enhance your recordings and performances. Special multi-model effects provide uniquely dynamic combinations of reverbs and delays, complete with a convenient Tap Tempo control to seamlessly sync with your tracks.
Compact and Ready to Gig
The Allen & Heath ZEDi Compact mixers are lightweight and portable without sacrificing strength and durability. Built to exacting standards to meet the demands of life on the road, the ZEDi-10FX is a mixer you can rely on whether you are playing live gigs with a super-compact portable rig or recording ideas at home with bandmates. Just pull the ZEDi-10FX from your bag and set it up in minutes.
- 4 in, 4 out USB Audio Interface (24-bit/96kHz)
- 4 Mic / Line Inputs with separate XLR and TRS jack sockets
- 2 Stereo Inputs with TRS jack sockets
- 2 Guitar DI high impedance inputs, eliminating the need for separate DI boxes
- Internal FX Engine with Tap Tempo
- Lo-cut filter for cleaning up unwanted low frequency noise
- 3-band EQ for easy creative and corrective tonal shaping
- FX out for connecting external effects units
- Aux out for connecting a monitor speaker or in-ear / headphone monitoring
- 60mm smooth travel fader on the main mix
- XLR main outputs
- Flexible signal monitoring and 8 LED signal metering
- 48V Phantom Power for condenser mics
- Robust internal power supply
| Mono Channel 1-2 (XLR) Input: | -5dBu to –60dBu (+13dBu maximum) |
| Mono Channel 3-4 (XLR) Input: | Pad IN +15dBu to –40dBu (+23dBu maximum) |
| Mono Channel 1-2 Instrument/Line Input (Jack socket): | +14dBu to -40dBu (+17dBu maximum) |
| Mono Channel 3-4 Line Input (Jack socket): | +15dBu to -40dBu (+23dBu maximum) |
| Stereo Input (Jack sockets): | 0dBu nominal (control = Off to +15dB Gain) |
| L/R Outputs (XLR): | 0dBu (+18dBu maximum) |
| Aux & FX Output (Jack sockets): | 0dBu (+18dBu maximum) |
