Alto TrueMix 500

Alto TrueMix 500

Alto TrueMix 500
Alto TrueMix 500
Alto TrueMix 500
Alto TrueMix 500
Alto TrueMix 500
Alto TrueMix 500
Highlights
  • USB I/O for audio playback and stereo recording
  • 1/4" Main, Tape, and Headphone outputs
Click here for Features and Specifications
We are here to help! 020 8579 0144
Regular price £69.99 £0.00 Unit price per
In Stock

In Stock

Free next day delivery

On all orders over £100

Frequently bought together:

Keep browsing or just give us a call: 020 8579 0144. We are here to help!

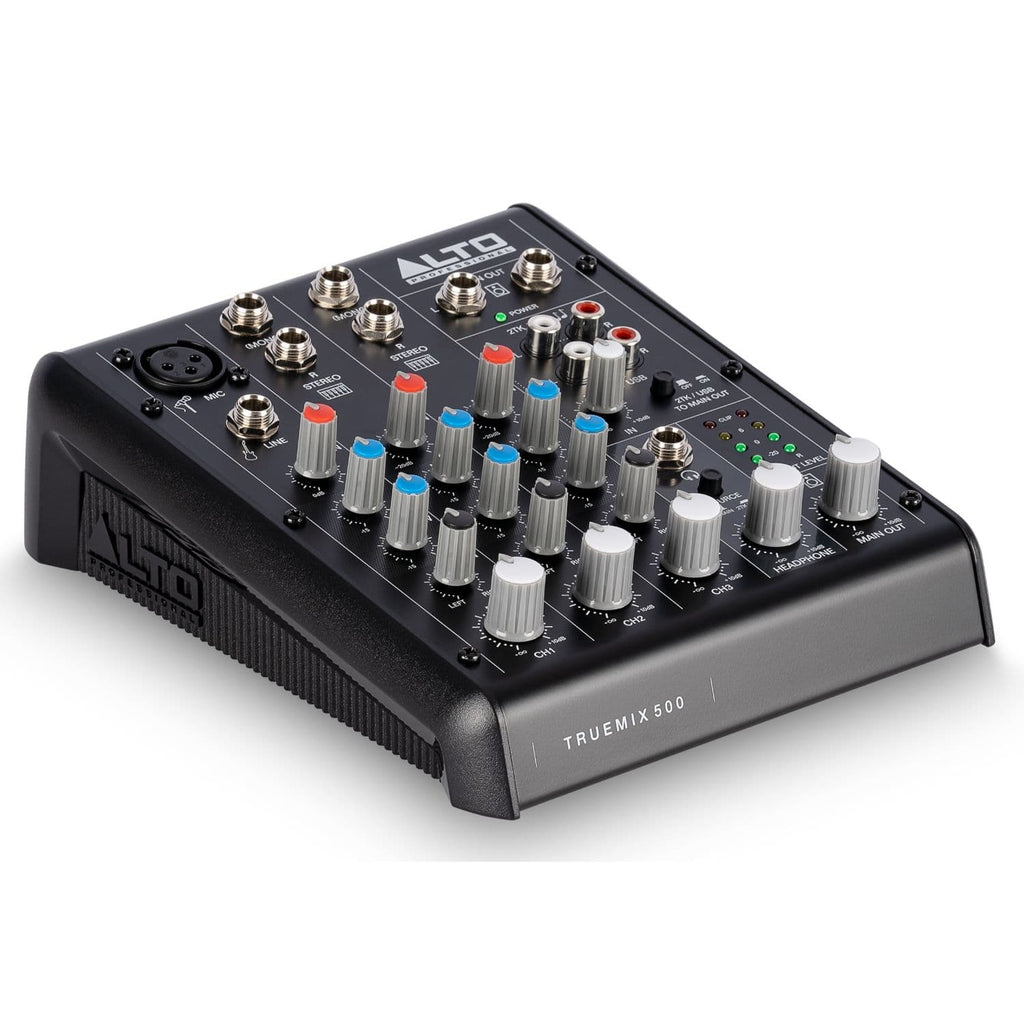

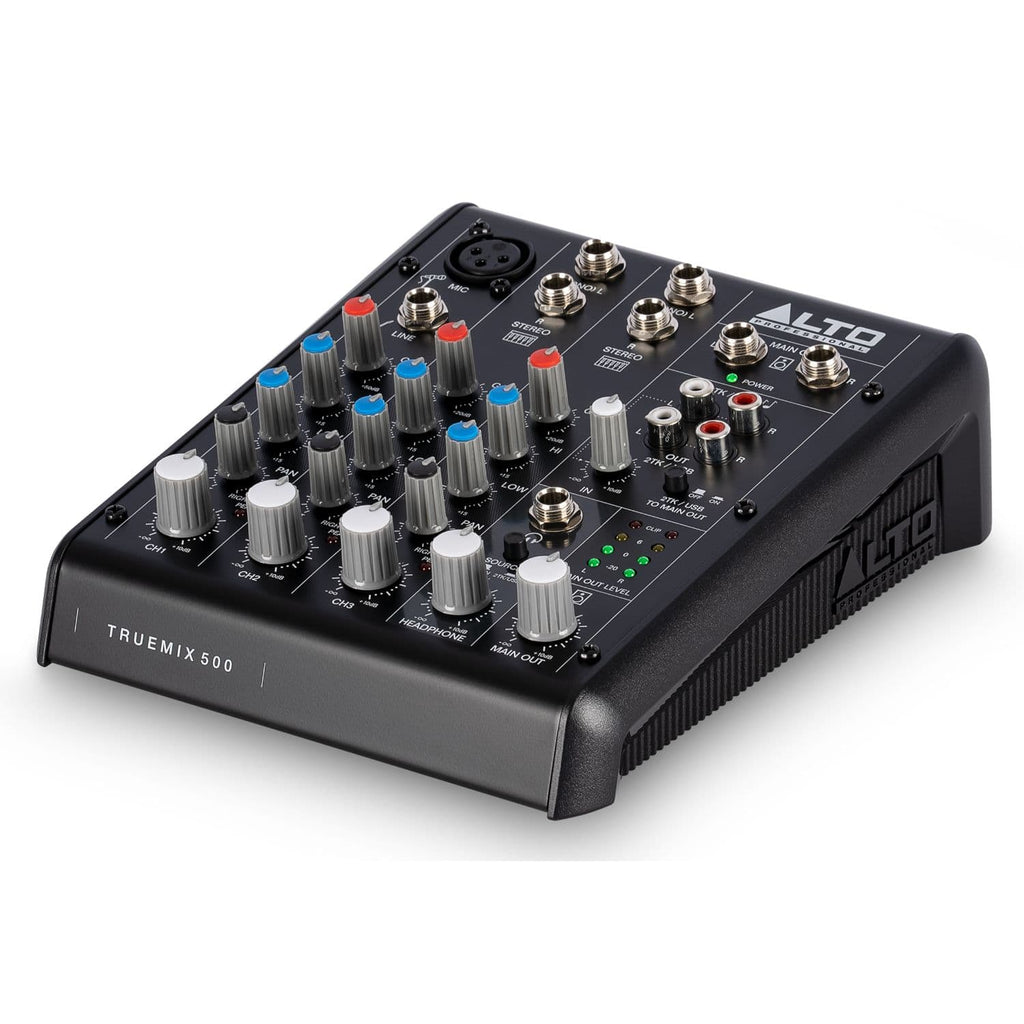

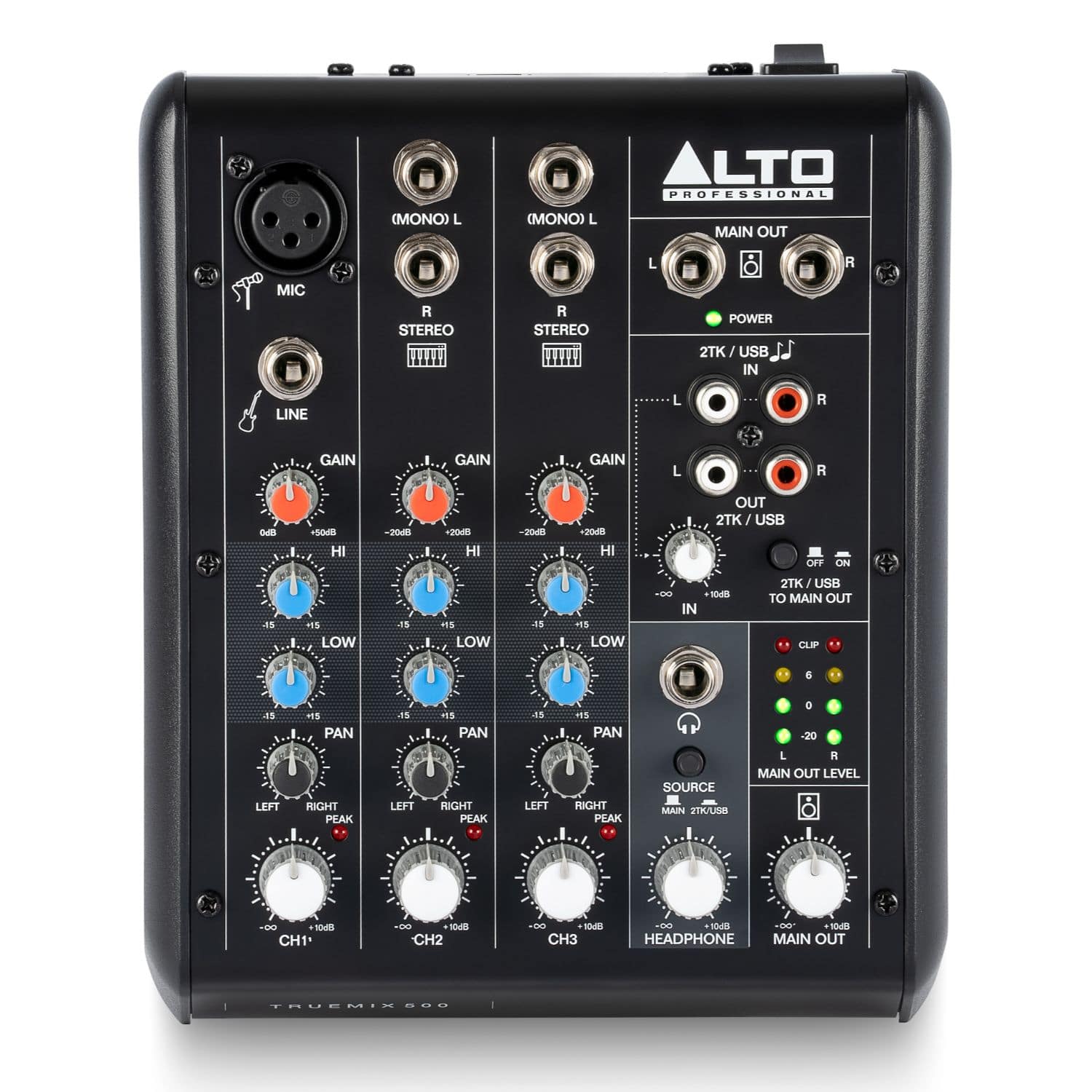

The Alto Professional TrueMix 500 is a portable mixer with a built-in stereo USB audio interface that delivers all the essential features you need for home recording, live-streaming, podcasting, or performing.

There are five analog inputs with high-headroom circuitry for minimal noise and clipping in your signal. The Mic Input Channel offers an XLR input that’s great for connecting a microphone. This channel also has a balanced 1/4" line input for connecting instruments and other line-level signals.

There are also two Stereo Input Channels, each with dual balanced 1/4" TRS inputs. These inputs are perfect for your line level audio sources. All channels feature a two-band EQ with colour coded knobs that make it easy to dial in your perfect sound when operating in low-light situations.

Connecting the TrueMix 500 to your computer is also lightning fast, with plug and play connectivity on Windows and macOS. The TrueMix 500 is your perfect companion for no-nonsense audio mixing and recording on the go.

  • USB I/O for audio playback and stereo recording
  • 1/4" Main, Tape, and Headphone outputs
  • Mic input channel with 48V phantom power and balanced line input
  • Two stereo input channels with balanced 1/4" TRS jacks
  • Two-band EQ on all channels
  • 2-track inputs with assignable routing: Main Mix or Headphone Out
Frequency Response: All inputs: 20 Hz – 22 kHz (±1 dB)
THD+N (Total Harmonic Distortion): All inputs: < 0.005% (@ 4 dBu, 1 kHz)
Gain Range: Mic inputs (Channel 1): 0 – 44 dB
Line input (Channel 1): 12 – 30 dBu
Line inputs (Channels 2/3): 0 dBu
Max Voltage Gain: 74 dB (Mic Input to Main Out and 2TK Output)
80 dB (Mic Input to Phones Output)
30 dB (Line Input to Main Out)
SNR (Signal-to-Noise ratio): All inputs: > 110 dBu
Impedance: Mic inputs: 3.9 kOhms
All other inputs: > 10 kOhms
2TK output: 1 kOhms
All other outputs: 120 Ohms
Crosstalk: Adjacent inputs: < -80 dB @ 1 kHz
Inputs to outputs: < -75 dB @ 1 kHz (stereo L/R, Channel 1, panned hard left or right)
Equalisation: High: +/- 15 dB @ 12 kHz
Low: +/- 15 dB @ 80 Hz
Connectors: (2) 1/4" (6.35 mm) TRS outputs
(2) 1/4" (6.35 mm) TRS stereo L/R inputs
(1) 1/4" (6.35 mm) TRS headphone output
(1) 1/4" (6.35 mm) TRS mono input
(1) XLR input
(1) Stereo RCA L/R input
(1) Stereo RCA L/R output
(1) USB type-B input
(1) DC power input
Controls: (1) Power switch
(6) Volume control knobs (1 per input and output)
(3) Gain control knobs (1 per channel)
(3) EQ Hi control knobs (1 per channel)
(3) EQ Low control knobs (1 per channel)
(3) Stereo pan control Knobs (1 per channel)
(2) Locking switch buttons
Indicators: (1) Power LED,
(3) Peak LEDs,
(8) Main Out meter LEDs
Main Mix: Main output: (2) 1/4" (6.35 mm) balanced TRS, +22 dBu max output
2TK output: (2) unbalanced RCA, 0 dBu max output
Headphone output: (1) stereo 1/4" (6.35 mm) TRS, 160 mW @ 32 Ohms
Power: Connection: DC
Voltage: 18V, 500 mA
Consumption: 9 W
Dimensions: 6.3" x 7.6" x 2.6"
159.5 mm x 193 mm x 66 mm
(width x depth x height)
Weight: 2.0 lbs.
0.9 kg
