Highlights
  • Ultra bright, flat wash fixture with 12 x Red, Green, Blue, Amber, White & UV LED pixels
  • Smooth RGBAW + UV color mixing
Click here for Features and Specifications
On display in our London Showroom
We are here to help! 020 8579 0144
Regular price £219.00 £0.00 Unit price per
In Stock

In Stock

Free next day delivery

On all orders over £100

Frequently bought together:

Keep browsing or just give us a call: 020 8579 0144. We are here to help!

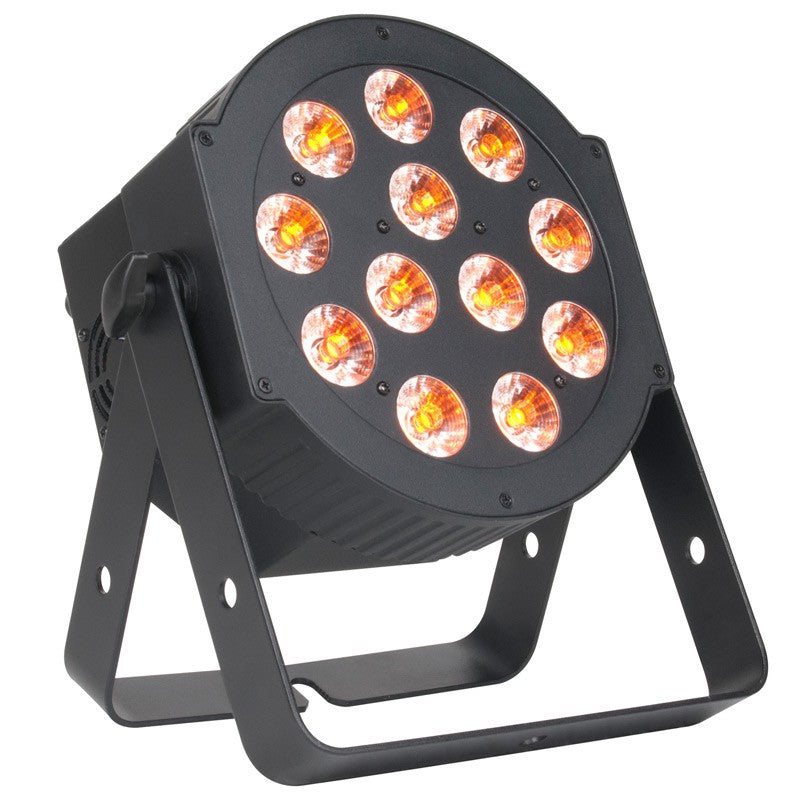

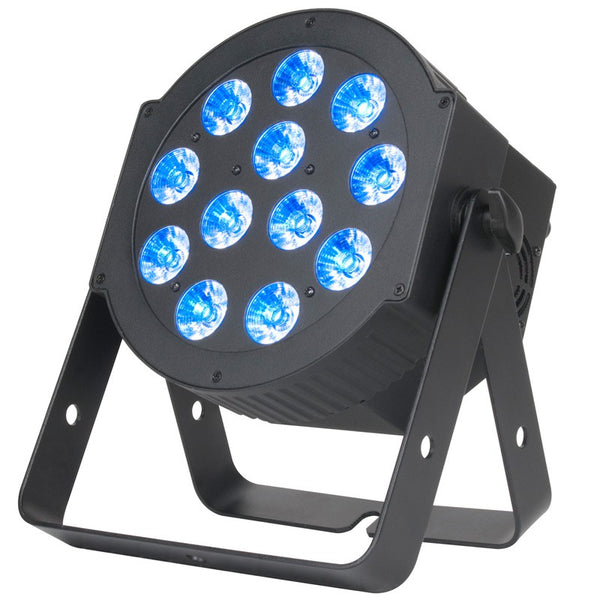

The ADJ 12P Hex is a versatile LED Par fixture with 12x 12-Watt, 6-IN-1 HEX LEDs. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for lighting stages, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for uplighting a venue.

12P HEX professional features include: 4 DMX modes (6, 7, 8, & 12 channel), 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. Daisy-chain up to 6 units (110V) or 13 units (240V) together via the fixtures built-in IEC In/Out power connectors.

The 12P HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (Sold Separately). Alternatively the fixture may be operated via a DMX controller or the units built-in programs.

  • Ultra bright, flat wash fixture with 12 x Red, Green, Blue, Amber, White & UV LED pixels
  • Smooth RGBAW + UV color mixing

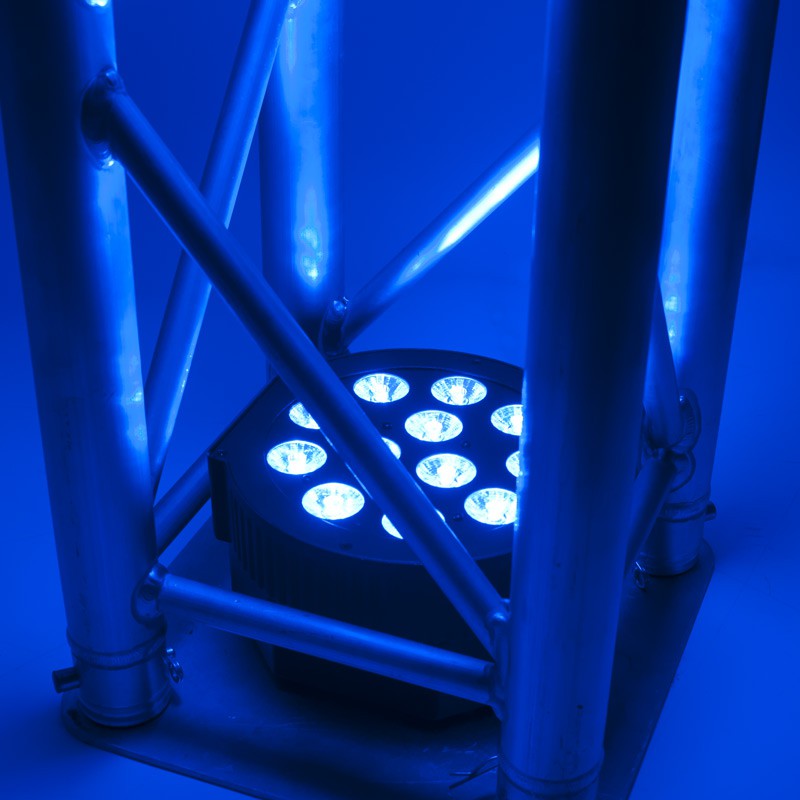

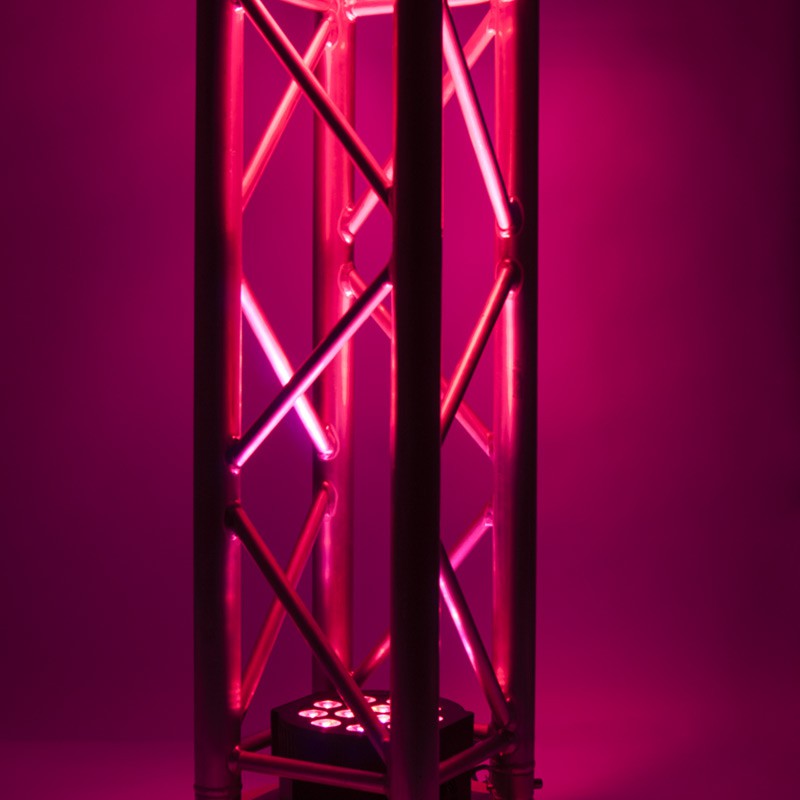

  • Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers

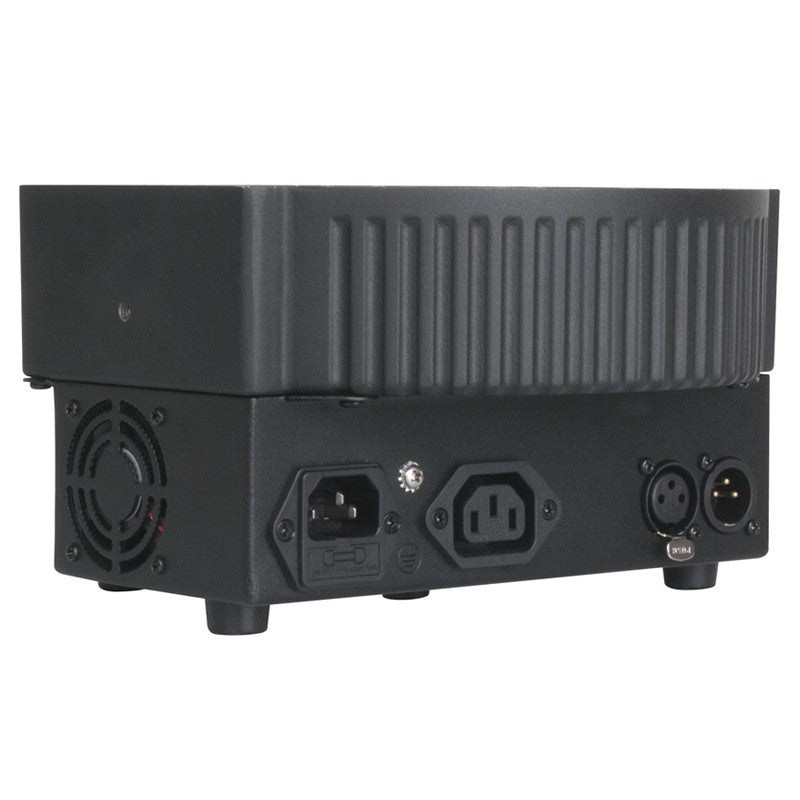

  • Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss
  • 7 Built-In Programs
  • 63 built-in Color Macros
  • Flicker Free operation (No flickering on camera)
  • 5 selectable Dimmer Curves (Standard, Stage, TV, Architectural & Theatre)
  • LED pulse and strobe effect

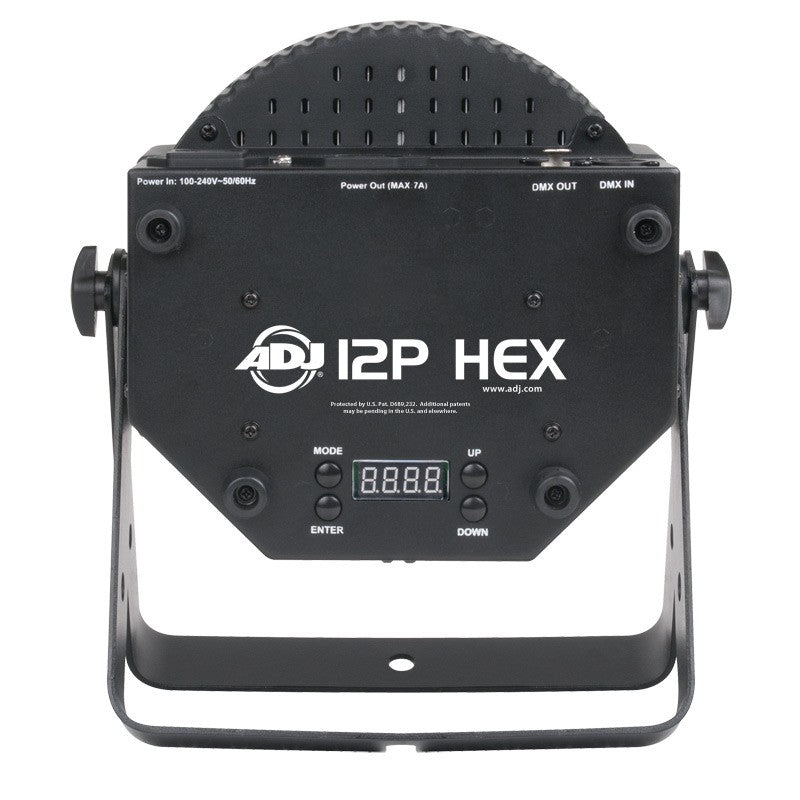

  • 4-button, DMX digital display on rear panel
  • Compatible with Dotz Par RF wireless remote control (sold separately)
  • Dual yoke allows fixture to be hung or set on the ground
  • Data linkable via 3-pin XLR cables
  • Power linkable via IEC power cables. (13x 12P Hex’s Max @ 240V)
DMX Modes: 6, 7, 8, or 12 channel
Operational modes: Static Color Mode,
RGBAW & UV Dimmer Mode,
Program Mode,
Sound Active Mode
DMX Controlled
Electronic Dimming: 0 - 100%
Beam angle: 30-degree
Light Source: 12x 12-Watt RGBAW + UV LEDs, (Rated at approximately 50,000 hrs.)
UV Wavelength: 395nm
Power Draw: 150W total (All LED's @ Full On)
Multi-voltage operation: AC 110-250V, 50/60Hz (IEC power In/Out)
Dimensions (LxWxH): 11.75” x 10” x 5.5”/ 298 x 249 x 136mm
Weight: 9 lbs. / 3.9 kgs
