Highlights

This product is sold as a system of six portable LED battery powered LED uplighters inside a charging flight case.

American DJ Mirage Q6 PAK includes:

  • 6 x American DJ Mirage Q6 IP Fixtures
  • 1 x American DJ Mirage Q6 FC Flight Case
  • 6 x American DJ Mirage Q6 IPCB Charging bases and power supplies
  • 1 x UC-IR Wireless Infrared Controller
  • 1 x IP65 Locking Power Cable
Click here for Features and Specifications
We are here to help! 020 8579 0144
Regular price £2,499.00 £0.00 Unit price per
Available for pre-order

Pre-order

Free next day delivery

On all orders over £100

Frequently bought together:

Keep browsing or just give us a call: 020 8579 0144. We are here to help!

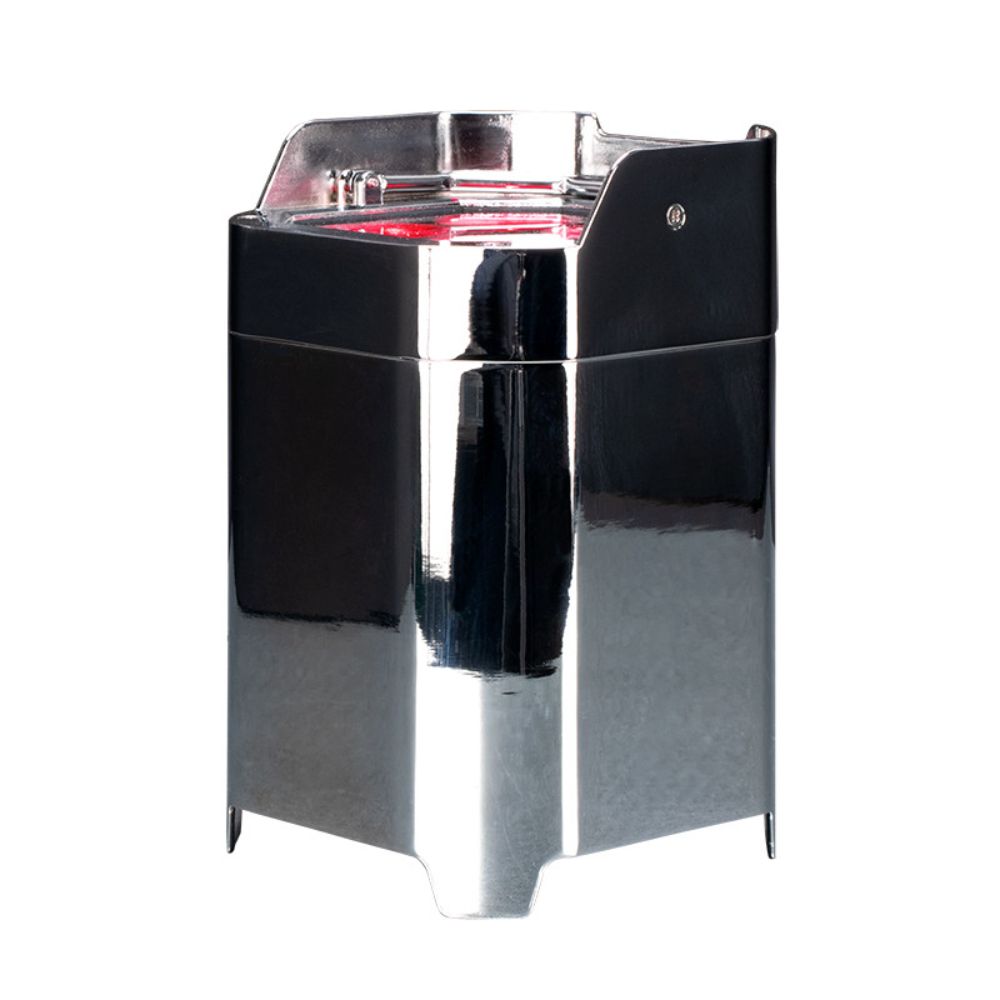

The American DJ Lighting Mirage Q6 PAK is an all-in-one event up lighting system with six IP65 rated, battery powered fixtures and a durable flight case with an on-board battery charging solution.

Each American DJ Mirage Q6 IP fixture is powered by four 10W RGBA LEDs that produce a 11-degree beam angle. The fixture is IP65 rated and is waterproof; suitable for temporary use outdoors with protection against the elements (rain, snow, dust and sand).

Built-in WiFLY EXR wireless DMX allows for the fixtures to communicate with a lighting controller, also with WiFLY EXR wireless DMX, up to 2,500 feet (700M) away.

Ideal for wall washing, American DJ Mirage Q6 IP fixtures are all fitted with an integral carry handle and built-in feet which mean they can simply be dropped in place and are ready to go. They also feature a built-in kickstand which allows the beam to be easily angled inwards towards a wall if required. This creates a more intense wash and minimises light spill onto the ceiling above.

Each fixture has an alarm system with on/off controls. If someone picks up the fixture with the alarm system on, the fixture will make a beeping sound and strobe in red.

The robust battery will operate up to 40 hours on a single colour (20 hours changing colours). The battery charge time is 7 hours.

  • 4 x 10-Watt RGBA LEDs (4-in-1 - Red, Green, Blue & Amber)
  • 50,000 Hour Average Life
  • RGBA Color mixing
  • 64 built-in Color Macros
  • Metal housing with chrome finish
  • IP65 Rated for temporary outdoor use
  • 11-degree beam angle

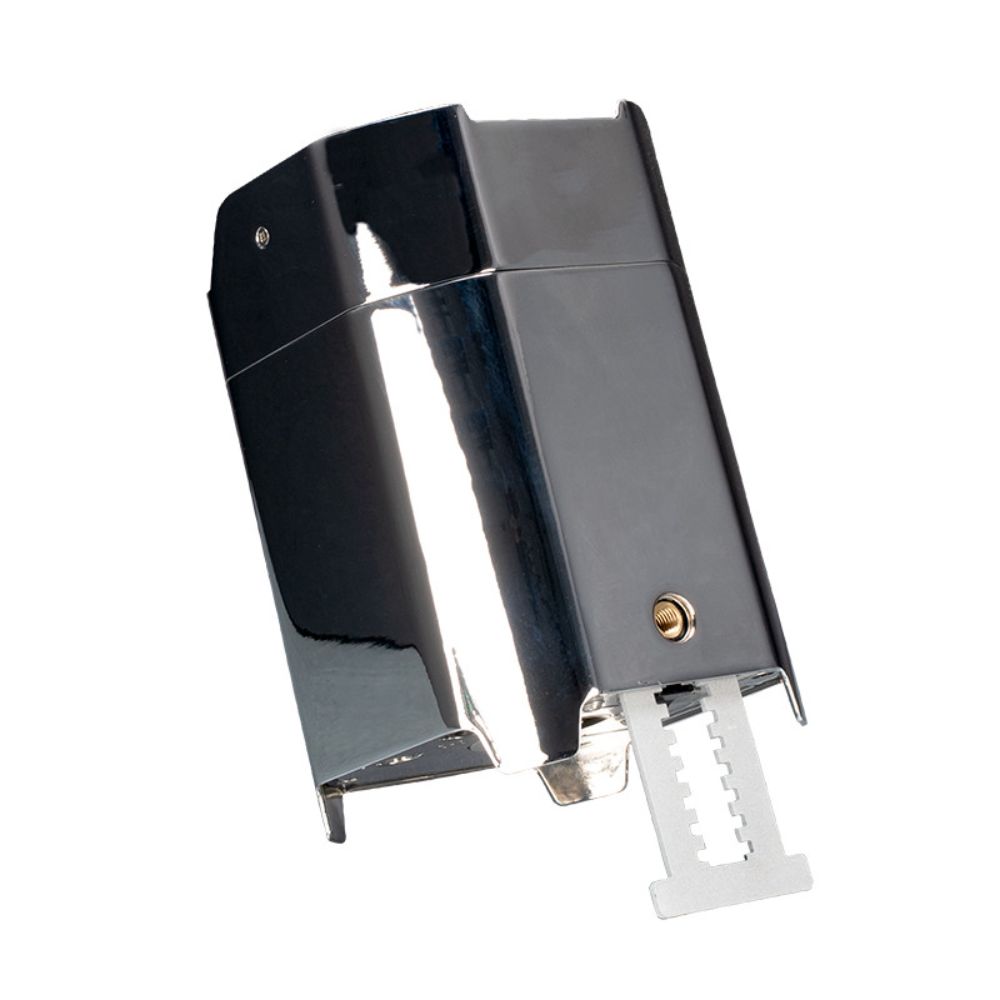

  • Built-in kickstand to angle fixture when sitting on the floor
  • Carrying handle
  • Built-in alarm system with On/Off
  • Battery charge indicator on each fixture
  • UC-IR Infrared Remote Included

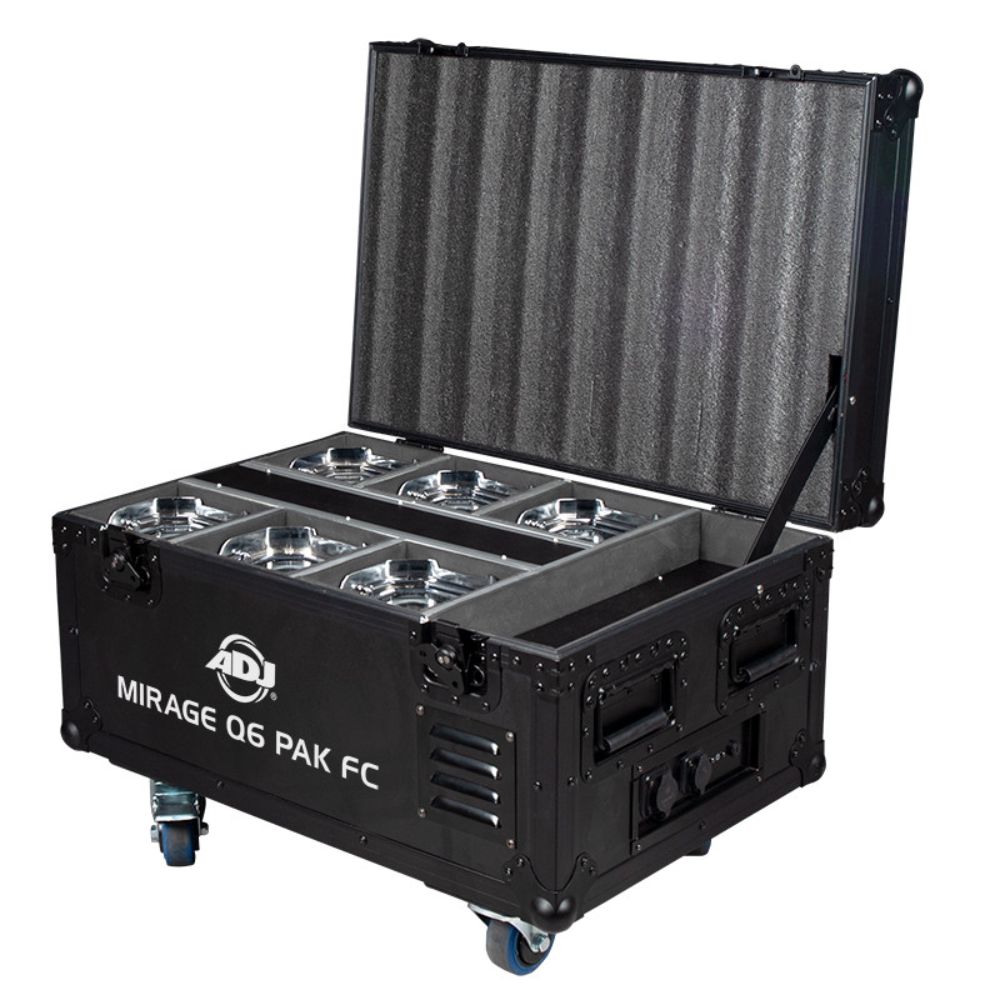

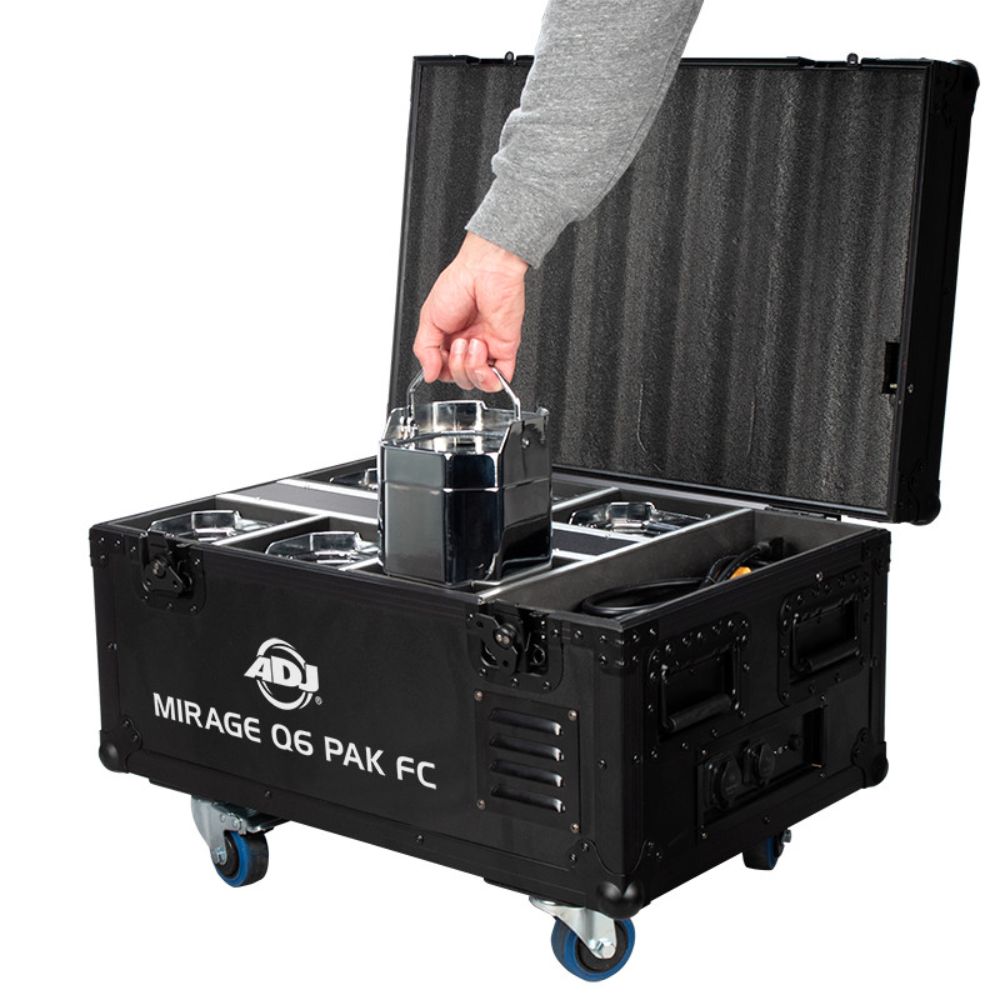

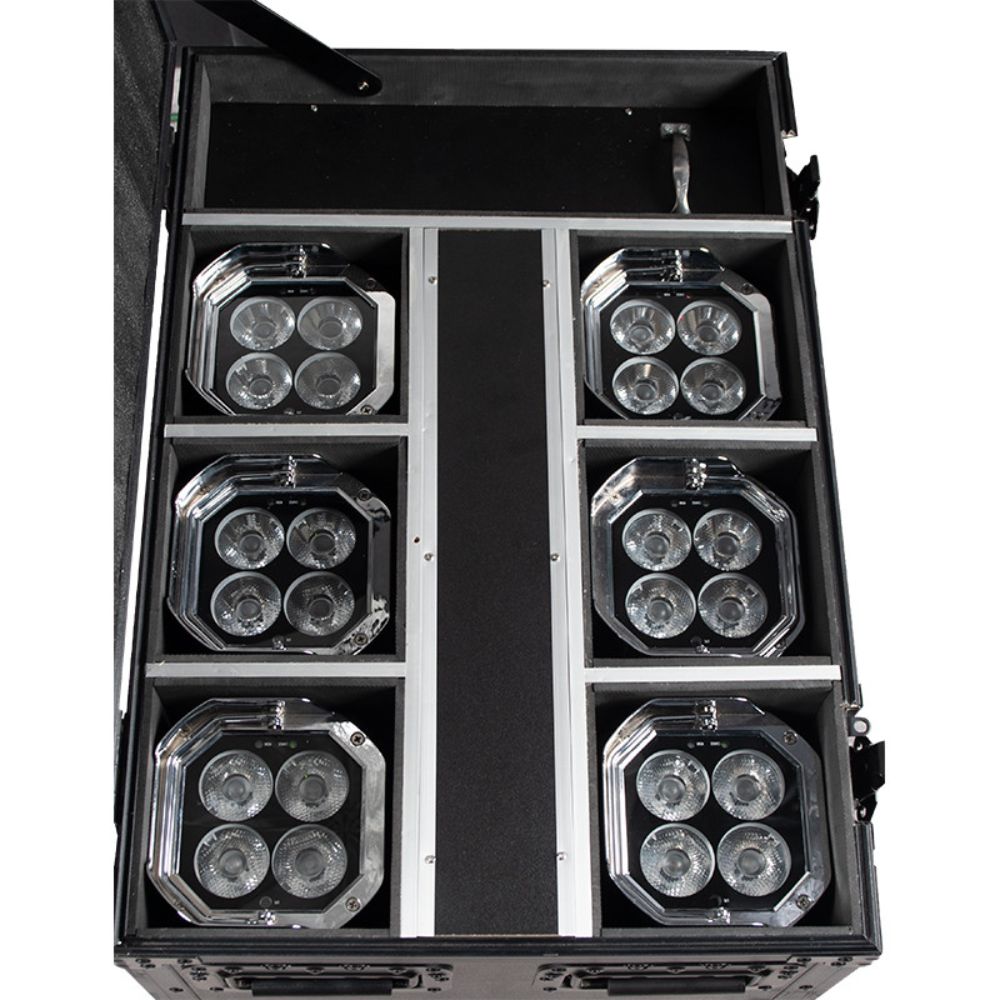

  • Flightcase houses / transports and charges 6 x American DJ Mirage Q6 IP fixtures
  • LED pulse and strobe effect (0.2Hz-11Hz)
  • Flicker Free Operation
  • Run all night – No duty cycle
Source: 4 x 10-Watt RGBA LEDs
(4-in-1 - Red, Green, Blue & Amber)
LUX: 9903 @ 2M; 2303 @ 4M
Optics: 11-degree beam angle
Control: 11 DMX Channel modes: 4, 6, 7, 8, 9A, 9B, 10, 11, 12, 15 or 18 channels
Control protocol: WiFLY EXR Wireless DMX,
UC-IR (Included)
Operation modes: RGBA Dimmer Mode,
Auto Run Mode (13 programs, & 1 color/fade combo mode),
Static Color mode
and Wireless DMX Control
Electronic Dimming: 0 - 100% with 6 dim modes and 4 dim curves
ELECTRICAL (per fixture)
Power Input: DC 17.3V
Amperage Draw: 2A
Power Consumption: 40W Max (each unit)
Battery Type: Fixed lithium battery
Battery Energy: 162.8WH (Watt Hours)
Battery Weight: 0.84 kg.
Battery Voltage: 14.8V
Battery Capacity: 11000mAh (Typical Capacity)
Battery Charge Time: 7 Hours
Battery Life: 20 hours (changing colours);
40 hours (single colour)
Connections: Contact Charging system.
6x Charging bases and power supplies included in flight case.
DIMENSIONS AND WEIGHT (per fixture)
Length: 143mm
Width: 143mm
Height: 211mm
Weight: 2.8kg
PAK DIMENSIONS AND WEIGHT (loaded case with 6 fixtures)
Length: 672mm
Width: 461mm
Height: 449mm
Weight: 44.4kg
PAK ELECTRICAL
Power Input: AC100VAC~240VAC, 50/60Hz
Connections: IP65 Power Locking Input and Output
Max Power Consumption: 400 Watts
Power Draw: 4A
Indicators: Charge status
Operating Temperature: -10°C to 45°C
