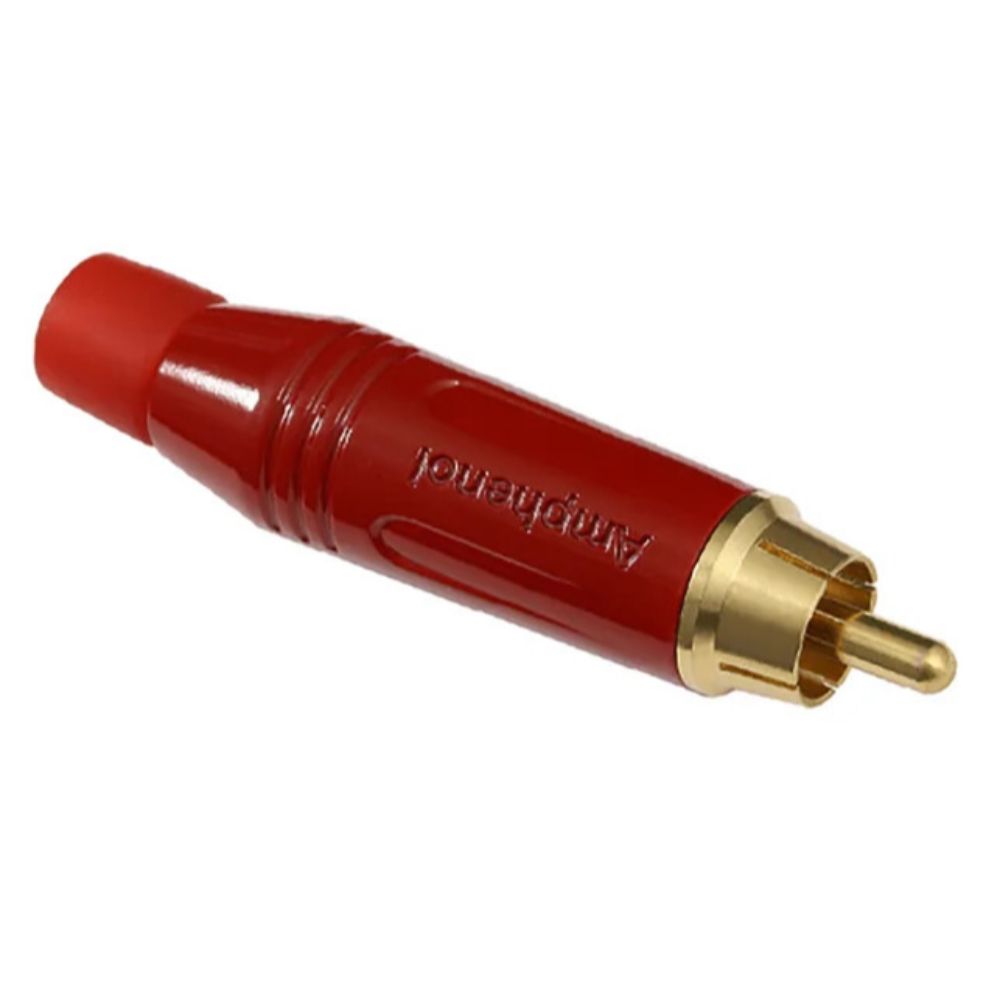

Amphenol RCA Phono Plug (Red)

Amphenol RCA Phono Plug (Red)

Amphenol RCA Phono Plug (Red)
Highlights
  • Cable OD Range: 3.0mm to 7.0mm
  • AWG14 – 2.5mm² Maximum Wire Gauge
Click here for Features and Specifications
We are here to help! 020 8579 0144
Regular price £3.00 £0.00 Unit price per
In Stock

In Stock

Free next day delivery

On all orders over £100

Frequently bought together:

Keep browsing or just give us a call: 020 8579 0144. We are here to help!

Amphenol ACPR-RED RCA Phono Plug, featuring a robust all-red diecast shell, gold-plated contacts, and good solderability.

Amphenol RCA plugs can operate in -25°C to 75°C temperatures and offers a UL94V-0 flammability rating. These plugs support AWG14 – 2.5mm² max wire gauge (stranded wire) with a 500-mating cycle lifespan.

  • Cable OD Range: 3.0mm to 7.0mm
  • AWG14 – 2.5mm² Maximum Wire Gauge
  • Solder Terminals
  • Robust Diecast Shell
  • Complies With EU RoHS 2 Directive 2011/65/EU
Cable OD Range: 3.0mm to 7.0mm
Connector Type: Phono (RCA) Plug
Gender: Male
Signal Lines: Single / Mono
Number of Positions/Contacts: 2 Conductors, 2 Contacts
Mounting Type: In-Line
Termination: Solder
Shielding: Unshielded
Current Rating (Amps): 10 A
Contact Material - Plating: Gold
Body Color: Black
Includes: 3 pcs - 1 Connector, 1 Handle, 1 Insulator Tube
Housing Material: Zinc Alloy
Contact Material: Brass
Product Code: ACPR-RED
