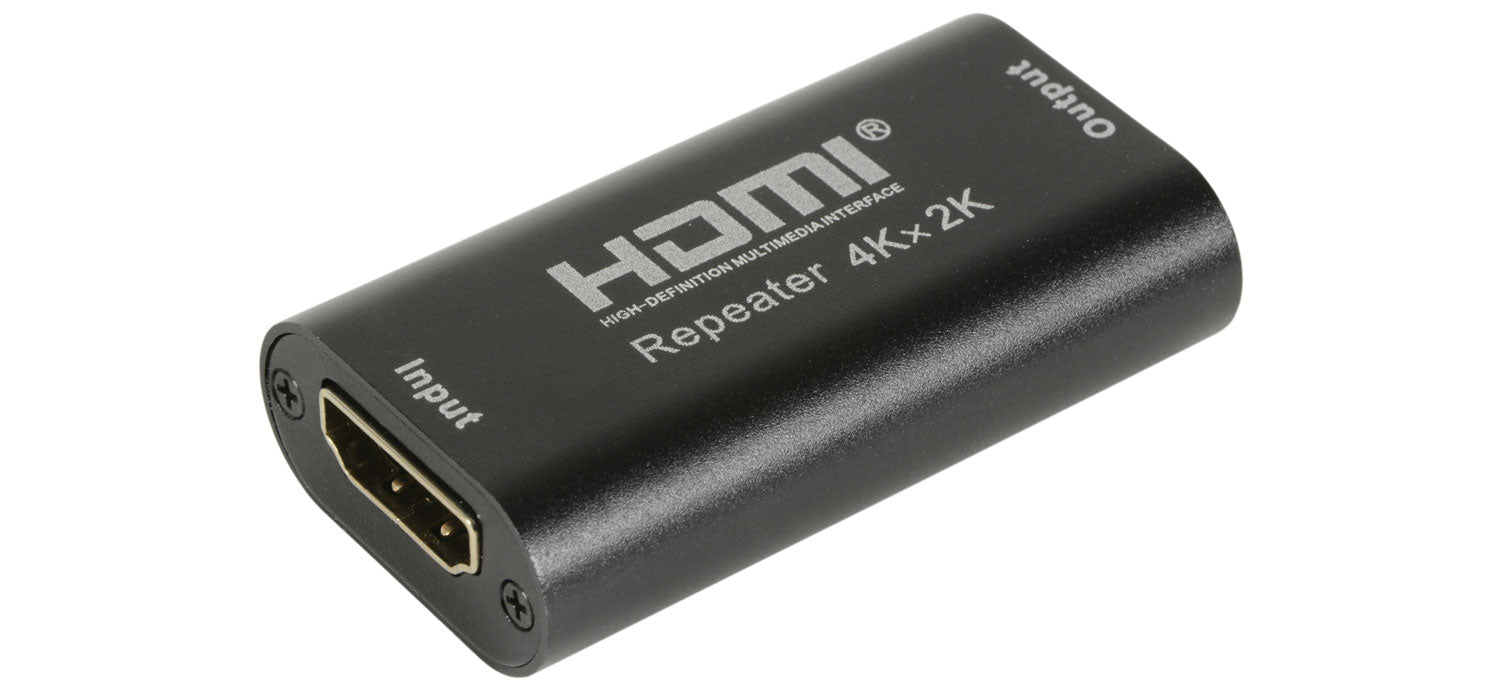

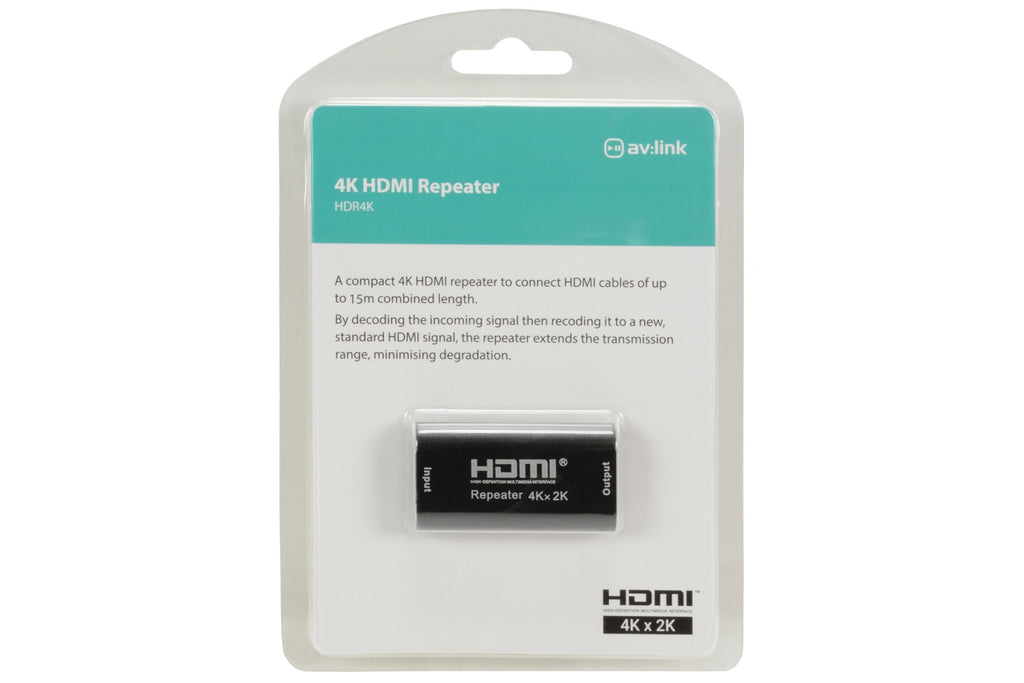

AV Link 4K HDMI Repeater
A compact 4K HDMI repeater to connect HDMI cables of up to 40m combined length with minimal signal degradation. Combine up to 15m cable for 4K resolution, or up to 40m for HD resolution.
Frequently bought together:
A compact 4K HDMI repeater to connect HDMI cables of up to 40m combined length. By decoding the incoming signal then recoding it to a new, standard HDMI signal, the repeater extends the transmission range, minimising degradation.
4K resolution is maintained with cables of up to 15m combined length. HD resolution results with cables of between 20 and 40m combined length.
- Maintains 4K resolution without signal loss over combined 15m cable length
- Maintains HD resolution without signal loss over combined 40m cable length
- Easy connection and installation
- Supports HDMI v1.4b resolutions up to 4096 x 2160 @ 30Hz
- Supports DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD audio formats
- No external power source required
- NOTE: poor quality HDMI cables will affect the maximum resolution and transmission distance
|Video resolution:||Up to 4096 x 2160P @ 30Hz|
|Audio format:||DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD|
40m max HD or 15m max 4K
(15m input/25m output at 1080p)
(7m input/8m output at 4K)
|Data transfer rate:||3.4Gbps (single link)|
|Operating frequency:||up to 340MHz|
|Dimensions:||28 x 13 x 51mm|
