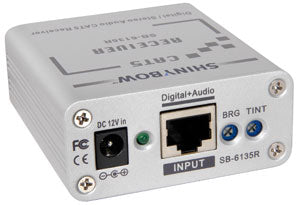

SB-6135R CAT 5 DIGITAL AUDIO/VIDEO + STEREO AUDIO RECEIVER
A compact receiver for accepting digital audio (PCM) or video + stereo audio signals from a CAT 5 transmitter up to 1000ft (300m) away.
- Outputs via gold plated, colour coded RCA phono sockets
- Easy to install and highly reliable
- RJ-45 input socket
- Brushed aluminium case with mounting brackets
- LED power ON indicator
- Supplied with mains adaptor
- Supports HDTV resolution 480p, 720p, 1080i
- Adjustable tint and brightness
| Power supply: | 12Vdc, 420mA |
| Audio output impedance: | 10k Ohms |
| Distortion: | -80dB total harmonic @ 1 MHz: Rl = 100 Ohms |
| Slew rate: | 1600V/µs |
| Video bandwidth: | 450MHz, -3dB |
| Video output: | 1.45V (p-p) max. |
| Dimensions: | 66 x 70 x 26mm |
| Weight: | 610g |
