Chauvet FX Par 9
Chauvet FX Par 9
Overview
- Compact effect par with multiple technologies in a single fixture
- RGB+UV in outer ring for increased color mixing and effects
- Separate control of center LED, outer ring and SMD strobes for dynamic effects
- Multiple zones allow for spectacular effects
- SMD strobe ring adds strobe effects to any setup big or small
On display in our
London Showroom
We are here to help!
020 8579 0144
Other Items to consider
Keep browsing or just give us a call: 020 8579 0144. We are here to help!

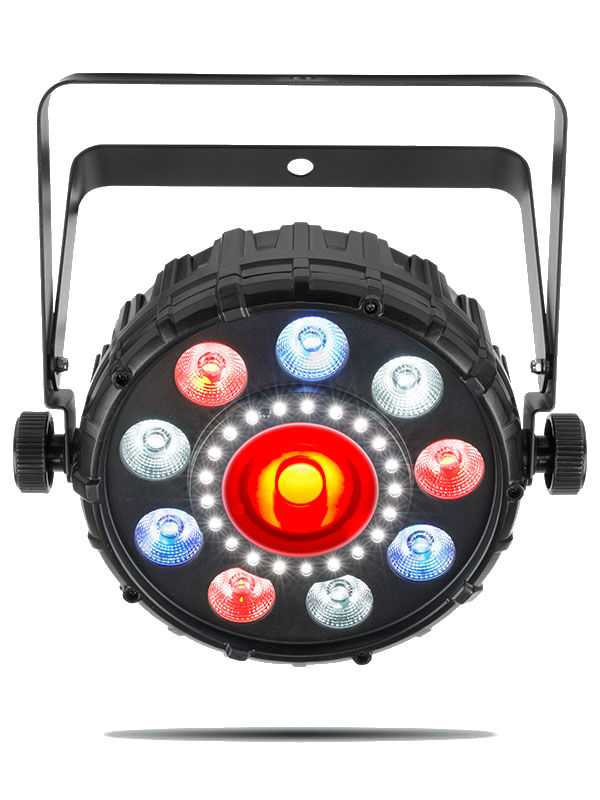

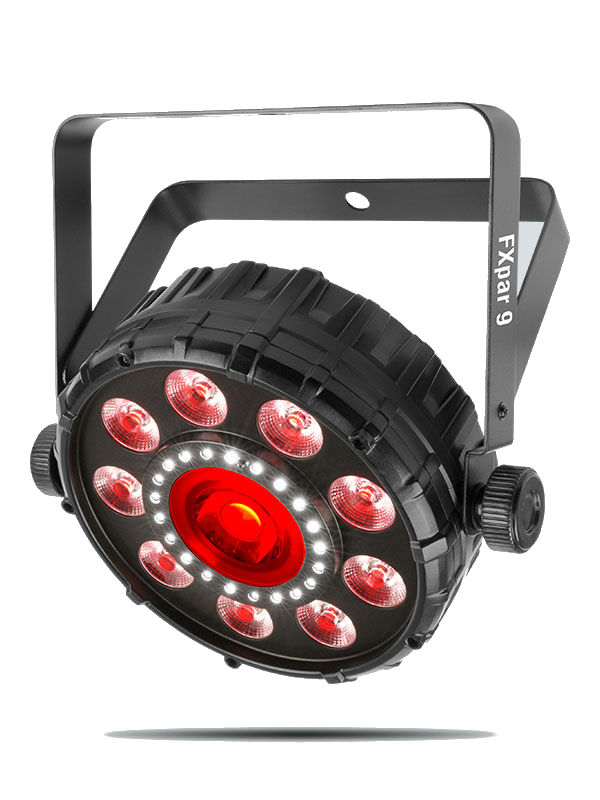

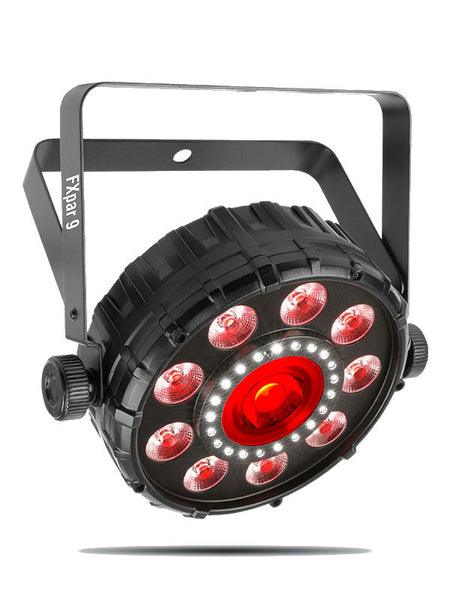

The Chauvet FX Par 9 is a dynamic and compact multi-effect fixture. It has an outer ring of RGB+UV LEDs, a centre LED, and SMD strobes, each featuring separate control. Multiple zones allow for spectacular effects via DMX. Sound activation, automated programs or easy control via the optional IRC-6 remote also let you easily achieve eye-catching effects. Save time setting up with power linking.
- Compact effect par with multiple technologies in a single fixture
- RGB+UV in outer ring for increased colour mixing and effects
- Separate control of centre LED, outer ring and SMD strobes for dynamic effects
- Multiple zones allow for spectacular effects
- SMD strobe ring adds strobe effects to any setup big or small
- Compatible with IRC-6 for improved control over the built-in functions
- Generate eye-catching effects with sound-activated and automated programs
- Power linking saves time setting up
| DMX Channels: | 3, 6, 9 or 23 |
| DMX Connectors: | 3-pin XLR |
| Light Source | |
| Outside: | 9 LEDs (quad-colour RGB+UV) 4 W, (1.4 A), 50,000 hours life expectancy |
| Centre: | 1 LED (tri-colour RGB COB) 18.4 W, (2 A), 50,000 hours life expectancy |
| Strobe: | 21 LEDs (cool white SMDs) 0.5 W, (0.2 A), 50,000 hours life expectancy |
| Strobe Rate: | 0 to 16.4 Hz |
| Beam Angle: | 25° |
| Field Angle: | 45° |
| Illuminance: | 1450 lux @ 2 m |
| Power Linking: | 13 units @ 230 V |
| Input Voltage: | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current: | 77 W, 0.6 A @ 230 V, 50 Hz |
| Weight: | 3.6 lb (1.6 kg) |
| Size: | 10.9 x 10.8 x 2.9 in (279 x 275 x 74 mm) |
| Approvals: | CE |
| Optional Controllers: | IRC - 6 |
