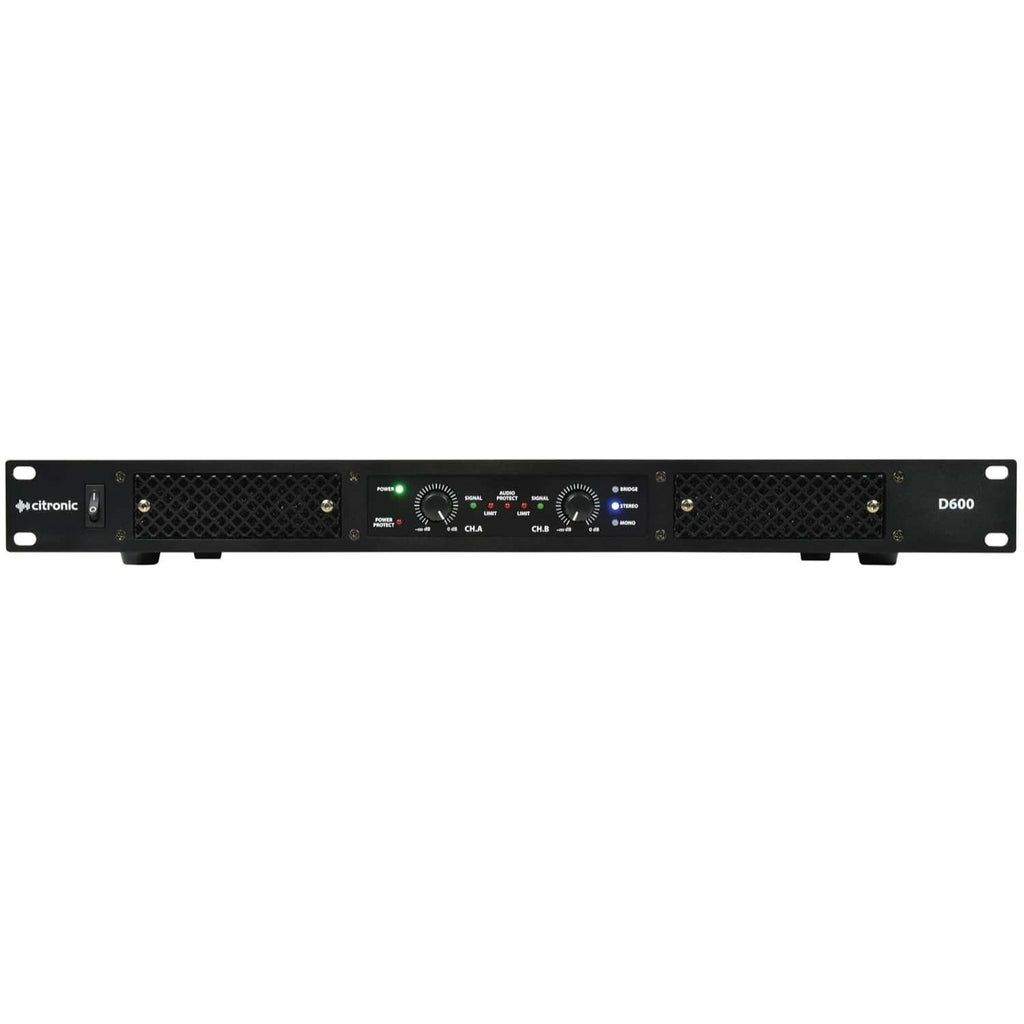

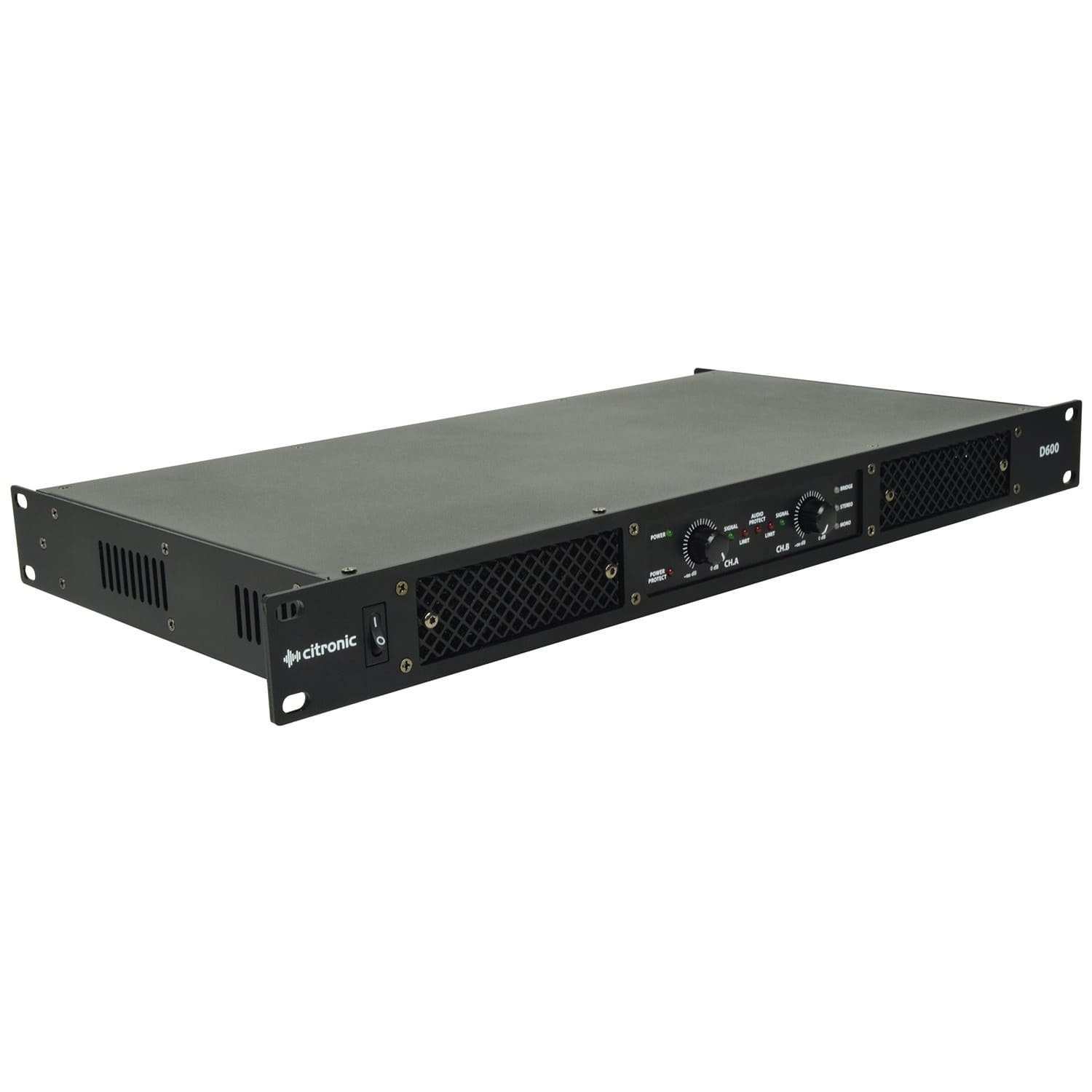

Citronic D600 D-Series Class-D Power Amplifier
Citronic D600 D-Series Class-D Power Amplifier
Highlights
- Cool and efficient operation even at high output
- Compact and lightweight 1U rack format
We are here to help!
020 8579 0144
Frequently bought together:
Keep browsing or just give us a call: 020 8579 0144. We are here to help!
Stereo power amplifier in a lightweight 1U rack-mountable housing. Class-D circuit architecture efficiently converts power into impactful audio for driving medium to large speaker cabinets.
Custom cool guide technology ensures consistent and reliable operation and an inbuilt limiter circuit engages at peak output to prevent speaker overload.
Options for parallel and bridge mode with selectable input levels and 75Hz low cut filter allow for different configurations to handle even the most demanding of sound reinforcement duties.
- Cool and efficient operation even at high output
- Compact and lightweight 1U rack format
- Switchable parallel and bridge modes
- 2 x 150W RMS at 8 Ohms
- 2 x 300W RMS at 4 Ohms
| Power RMS @ 4 Ohms: | 2 x 300W |
| Power RMS @ 8 Ohms: | 2 x 150W |
| Power BRIDGE @ 8 Ohms: | 1 x 600W |
| Fuse: | T8A (20 x 5mm) |
| Power supply: | 220-240Vac, 50/60Hz (IEC) |
| Modes: | Stereo, Parallel (mono), Bridge (mono) |
| Input sensitivity: | 0.775V - 1.0V - 1.44V switchable |
| Low-cut filter: | 75Hz switchable |

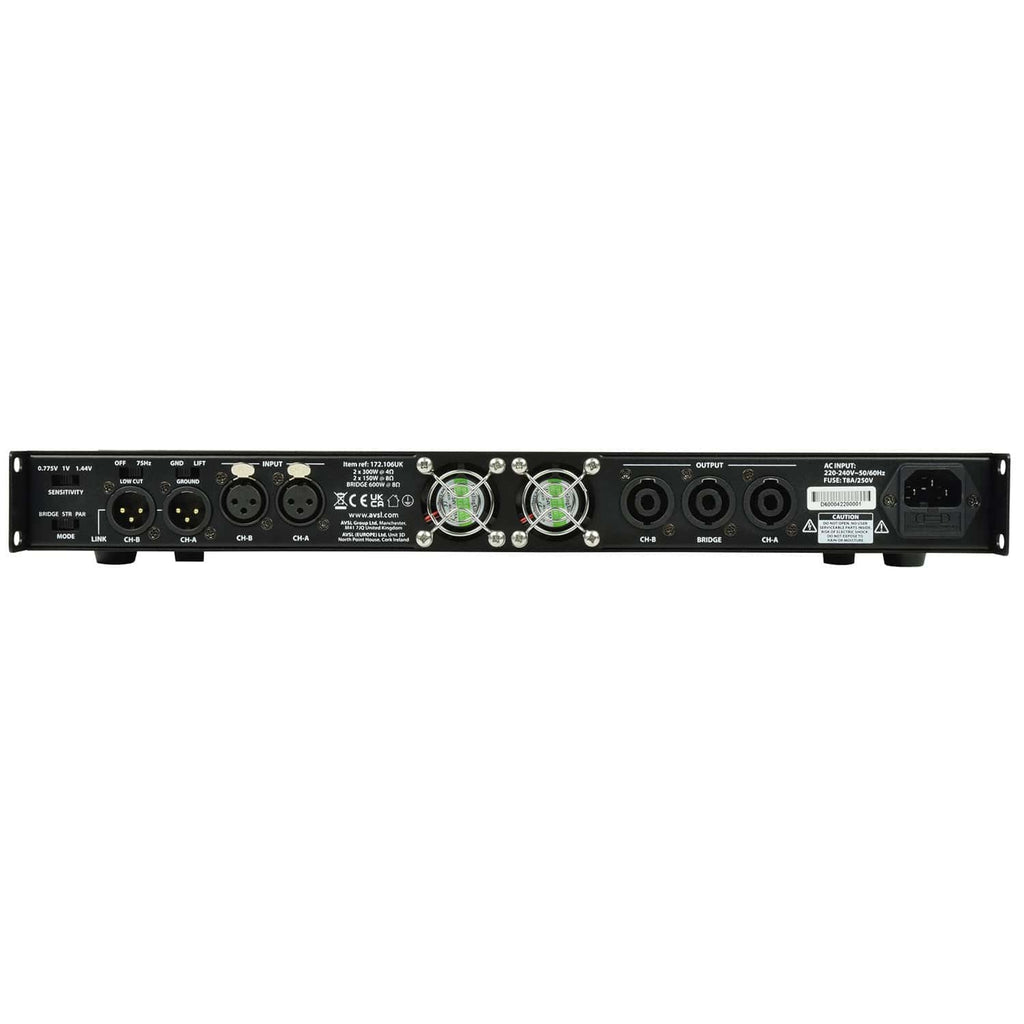

| Input connections: | L+R XLR female (L+R XLR male through) |
| Output connections: | L+R SPK connectors (+1 for bridge mode) |
| Dimensions: | 482 x 245 x 44mm |
| Weight: | 3.77kg |
