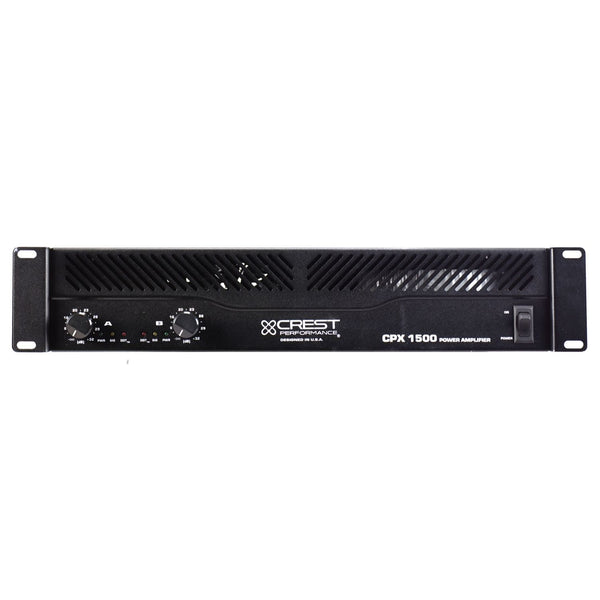

Crest CPX1500

Crest CPX1500

Crest CPX1500
Crest CPX1500
Overview
  • 750 Watts @ 2 ohms per channel
  • 500 Watts @ 4 ohms per channel
See more product details
We are here to help! 020 8579 0144
Regular price £599.00 £0.00 Unit price per
Out of Stock

Out of Stock

Call us for the
latest availability
020 8579 0144

Free next day delivery

On all orders over £100

Other Items to consider

Keep browsing or just give us a call: 020 8579 0144. We are here to help!

Professional Install & Touring Power Amplifier

The Crest CPX is an affordable line of amplifiers geared toward the install and MI markets. A tradition of great sound quality, flexibility and reliability is carried over into the Crest Performance series. Industry standard connectors and features make the Crest CPX a great backbone for mobile sound systems, project studios and many other applications. Musicians will also find Crest CPX as the power amp of choice.

With a comprehensive set of features including built-in signal limiting, low pass filters and low frequency crossovers with direct outputs, the Crest CPX line addresses several applications and serves as a low-cost solution for most power amplification needs.

  • 750 Watts @ 2 ohms per channel
  • 500 Watts @ 4 ohms per channel
  • 300 Watts @ 8 ohms per channel
  • 1000 Watts @ 8 ohms bridged
  • 1500 Watts @ 4 ohms bridged
  • GCL Gain Comparator Limiting system with rear panel defeat switch
  • Built-in crossover 150 Hz, -24 dB per octave Linkwitz-Riley filter, tuned for subs, individual in/out switches for channels A and B
  • 1/4” daisy chain outputs
  • Built-in low cut filter -18 dB per octave at 80 Hz, individual in/out switches for channels A and B

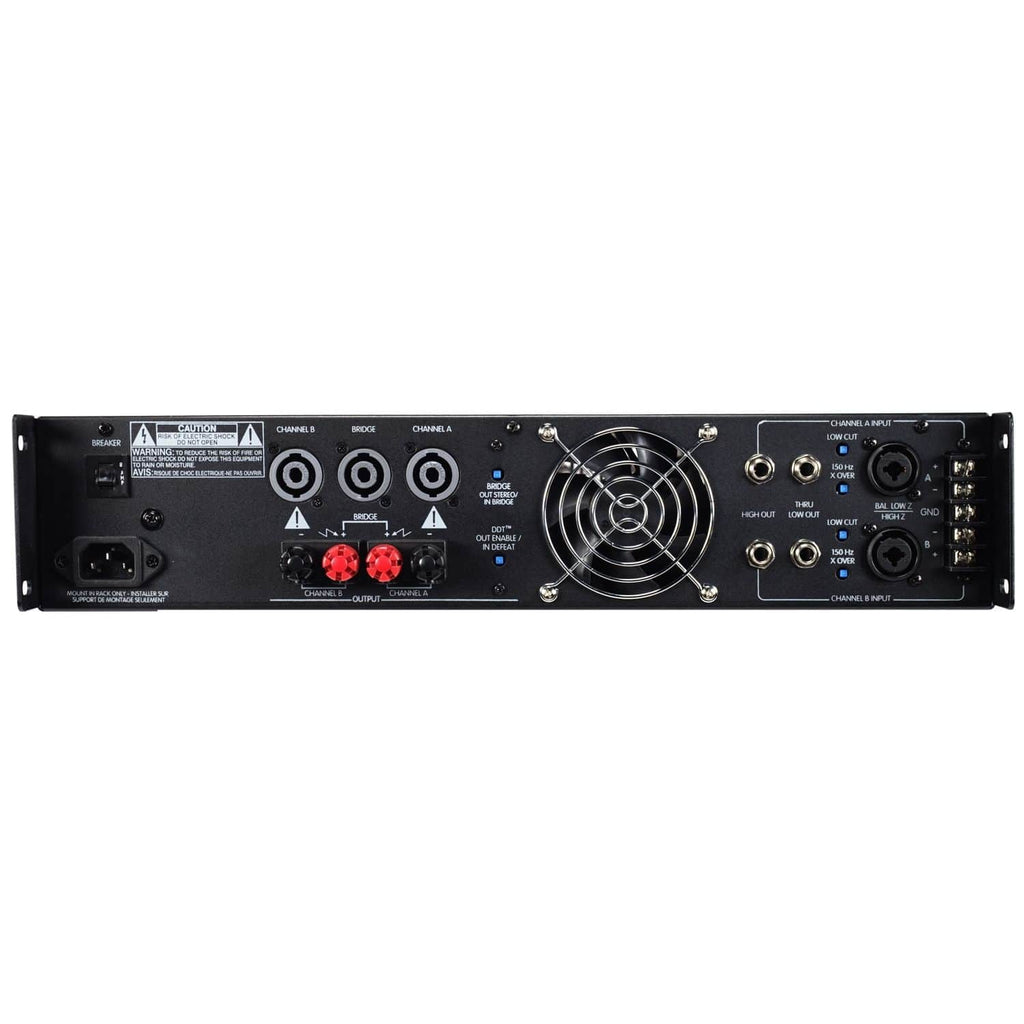

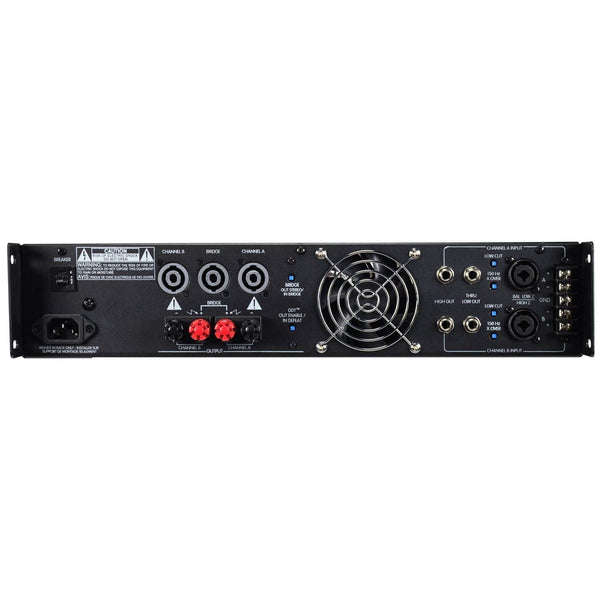

  • Input connectors – Barrier strip, Female XLR-1/4” Combo TRS
  • Outputs connectors Speakon for channels A and B and bridged mono, binding posts for bridge mode
  • Mode selector switch for stereo and bridged-mono operation
  • Two speed DC fan
STEREO POWER
8 ohms: 300W
4 ohms: 500W
2 ohms (1% THD): 750W
BRIDGED MONO POWER
8 ohms: 1000W
4 ohms (1% THD): 1500W
HUM & NOISE: 100 dB
Stereo mode Below rated output power, 4 ohms
INPUT SENSITIVITY & IMPEDANCE: 1.12V RMS (+1dBv)
(@ rated output power, 4 ohms)
Unbalanced, 1/4" phone jack / Balanced, XLR: 10K / 20K Ohms
Overall system gain per channel: 40X (+32 dB)
DISTORTION
SMPTE-IM: Less than 0.01% (THD, typical value)
Stereo mode, both channels driven, 4 ohms
20 Hz to 20 KHz, 10dB below rated power: Less than 0.03%
20 Hz to 2 KHz, at full rated power: Less than 0.03%
FREQUENCY RESPONSE: 20 Hz to 20 kHz (+0,-1 dB @ 1W RMS, 4 ohms)
5 Hz to 50 kHz (+0,-3 dB @ rated output, 4 ohms)
DAMPING FACTOR: >300 (Typical value - 8 ohms, 1 KHz)
POWER CONSUMPTION: 8.0 A (Stereo mode, both channels driven)
@ 1/3 rated output power, 4 ohms 120 VAC
TOPOLOGY: Class AB
WEIGHT: 45 lbs (20.5 kg)
DIMENSIONS: Height: 3.5" (8.9 cm), Width: 19" (48.3 cm), Depth: 14" 35.6 cm)
