The DAP SPA-100 is a versatile casting media player that is suitable for different playback applications as it allows multi-room and stereo pairing with the best audio quality. Easy to set up, it is capable of playing a wide variety of audio files via the built-in USB port, or audio can be streamed via Bluetooth or played through the line input.
It can be connected to the internet through LAN or Wi-Fi and it can also act as a Wi-Fi hotpsot that other devices can cast to. It's equipped with Bluetooth 5.0 that supports aptX HD and the USB port supports audio files in the following formats: AAC, AAC+, ALAC, APE, FLAC, MP3 and WAV. It also supports gapless playback to ensure the integrity of original recordings.

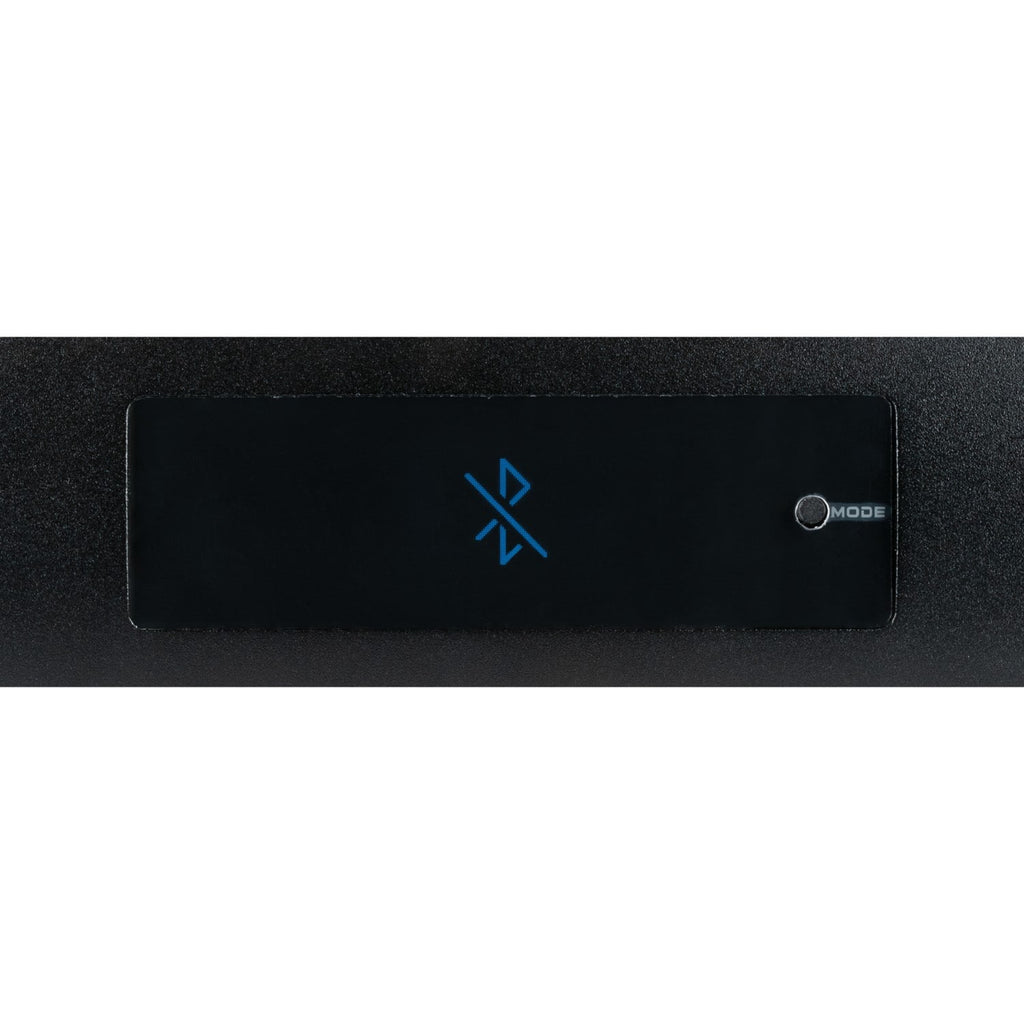

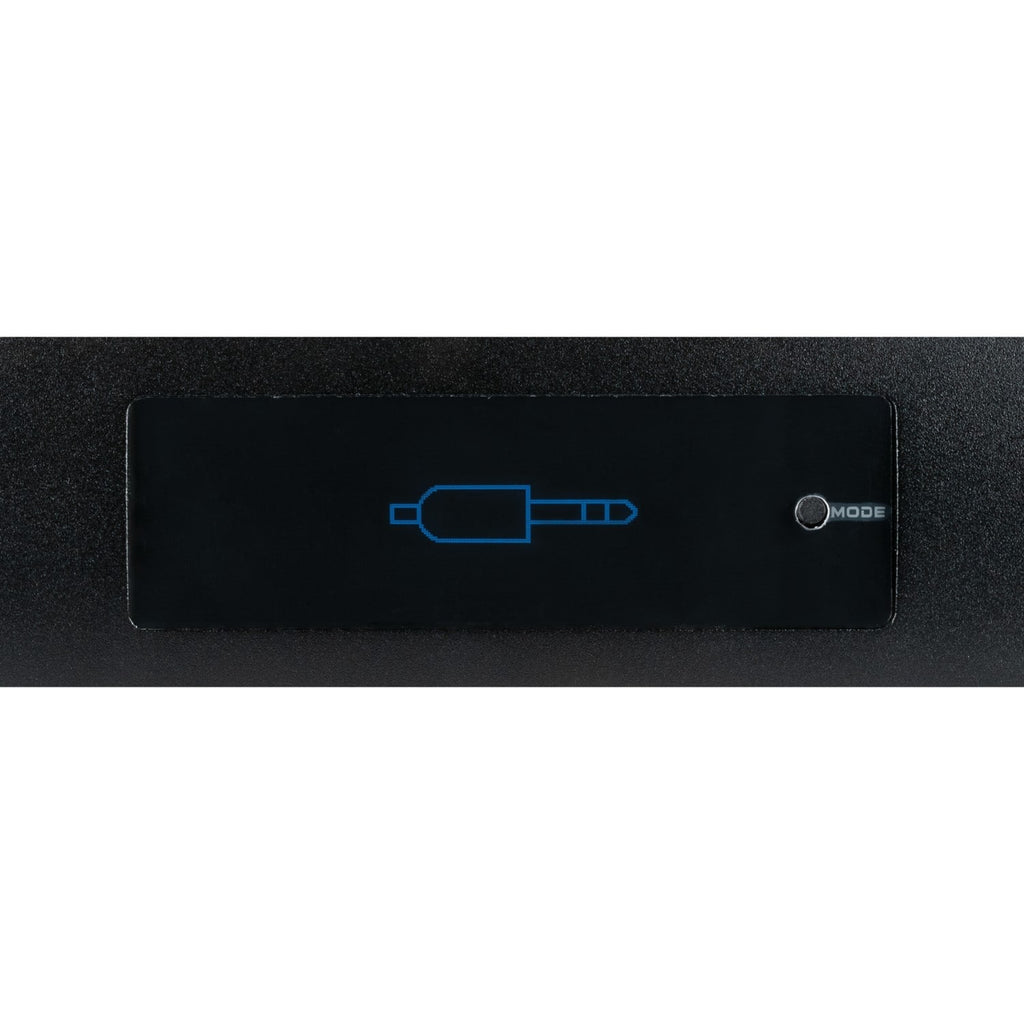

In addition to the on-board controls and OLED screen, the device can be operated with the included remote control or the 4stream app, which supports Spotify, Tidal, TuneIn, Amazon music and more.
The app can even be used to assign radio channels or playlists to the 6 preset buttons found on the remote control for quick and easy access. You can also browse through and select USB files via the app.

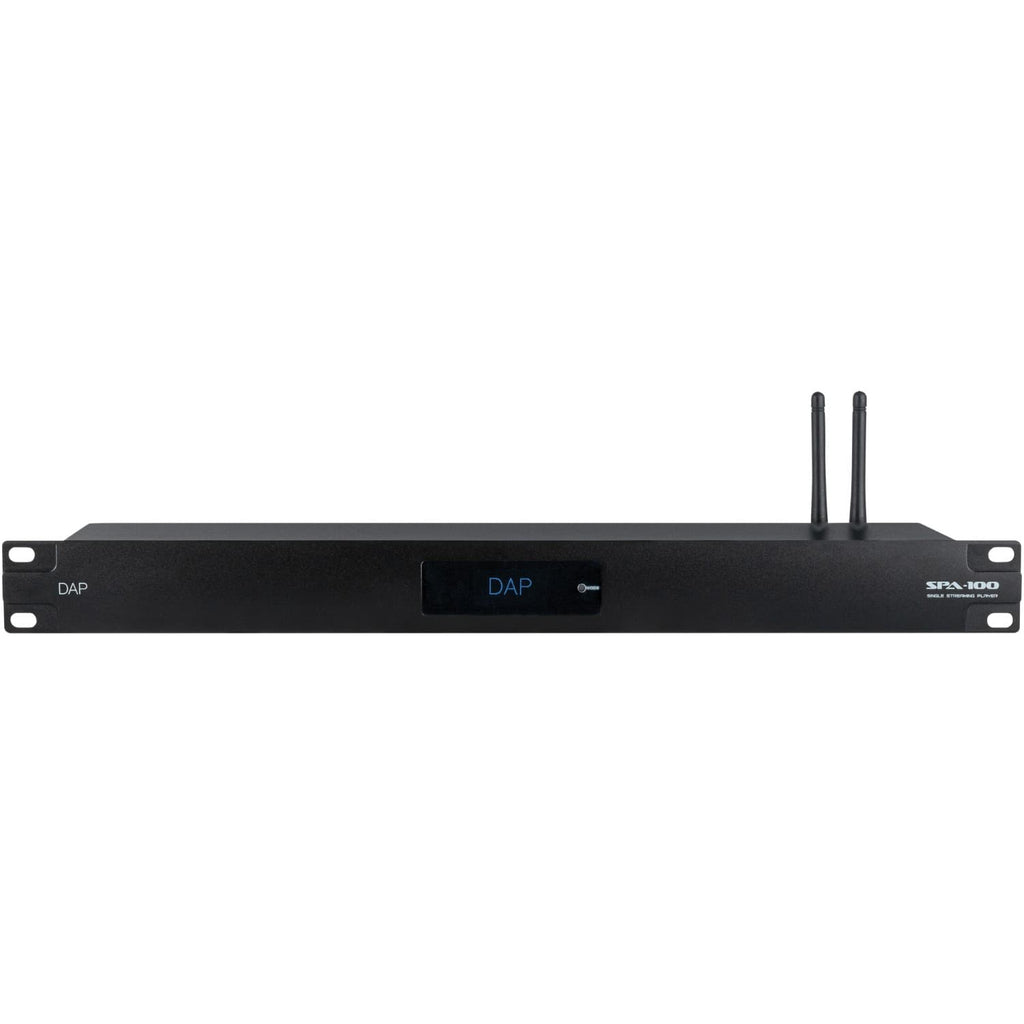

- 1U 19" Media Player
- Supports LAN / Wi-Fi streaming via Airplay and Android casting
- USB port with AAC, AAC+, ALAC, APE, FLAC, MP3 and WAV support
- BT 5.0 with aptX HD
- Control via remote and 4stream app

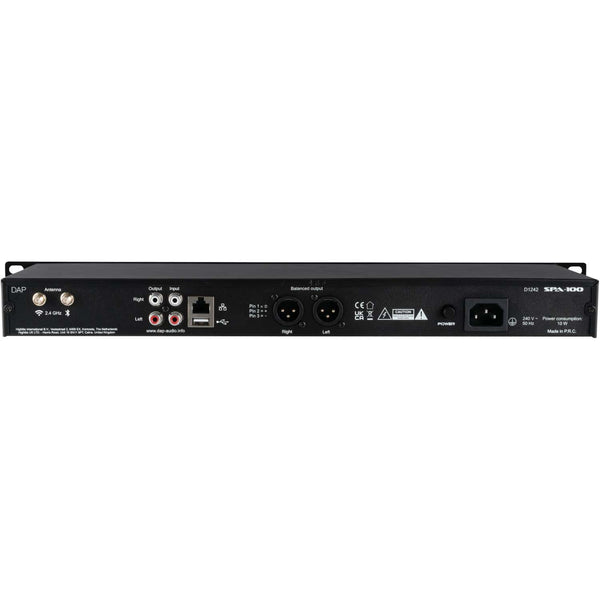

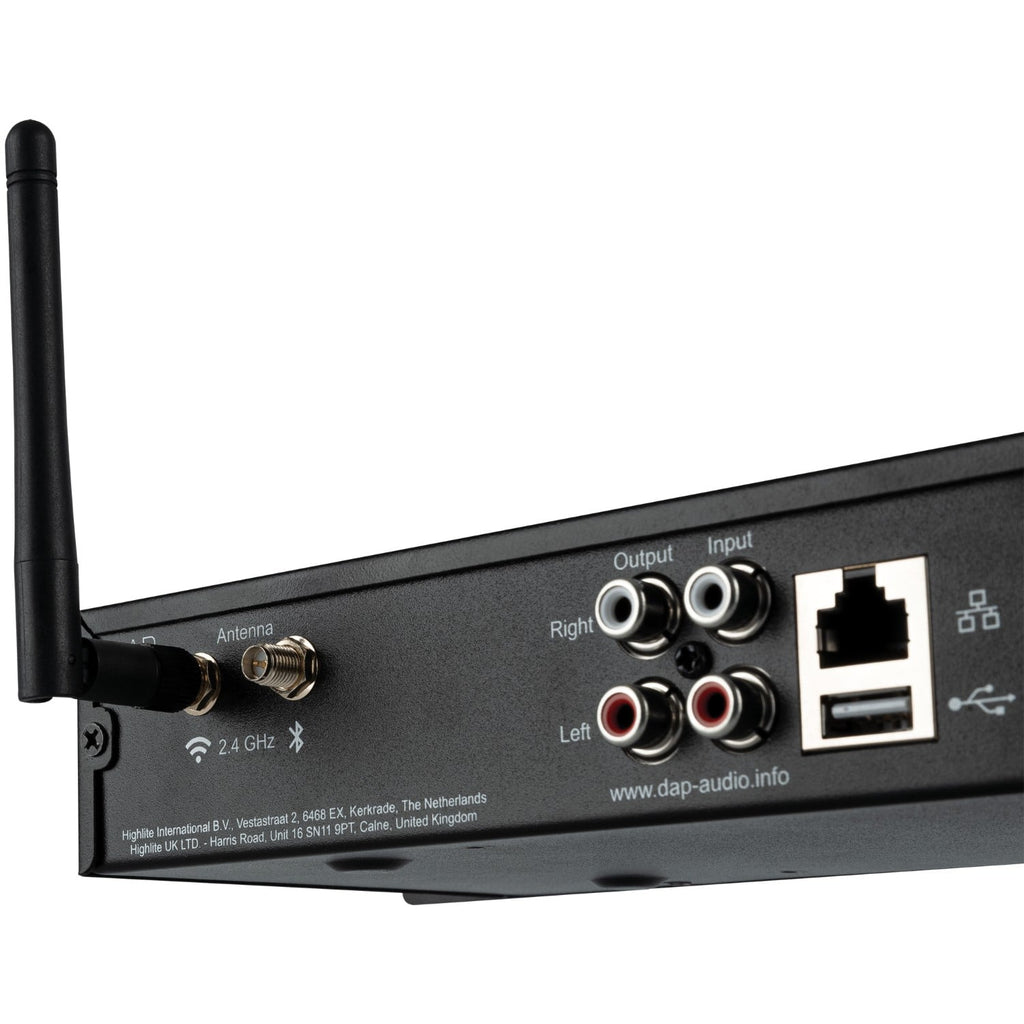

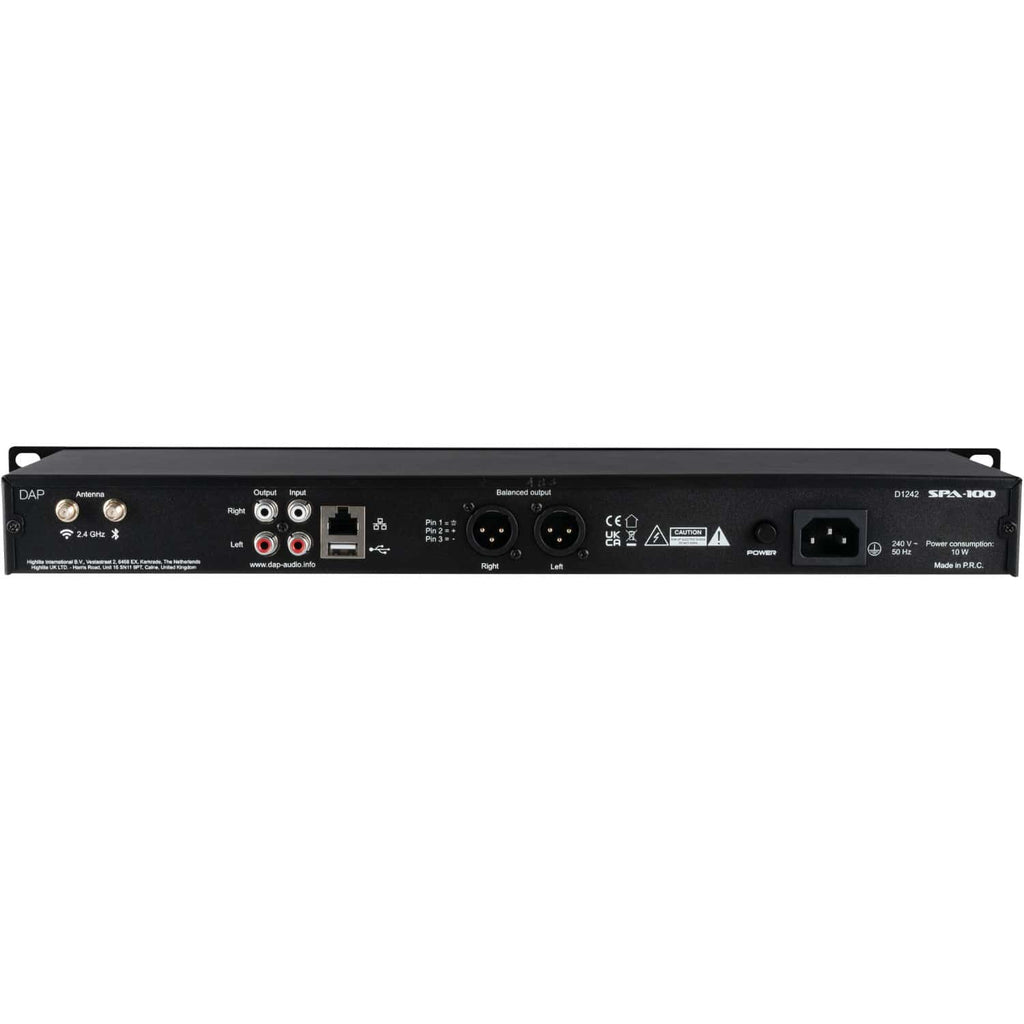

| ANALOG INPUTS | |
| Stereo Inputs: | 1 |
| Stereo Input Connector: | RCA |
| OUTPUTS | |
| Main Outputs: | 1 |
| Main Output Connector: | 3-pin XLR, RCA |
| PLAYBACK | |
| Supported Audio Files: | AAC/AAC+ , ALAC, APE, FLAC, MP3, WAV |
| Supported Format: | exFAT, FAT16, FAT32 |
| Maximum Storage Size: | 128 GB |
| Media Input/Output: | USB-A |
| USB Type: | 2.0 |
| Playback Functions: | Up (Skip), Down (Skip), Play, Pause, Stop |
| AUDIO SPECIFICATIONS | |
| THD Level: | < 0.03 % |
| Signal-to-noise Ratio: | > 110 dB |
| Frequency Response Minimum: | 20 Hz - 20000 Hz |
| WIRELESS SPECIFICATIONS | |
| Bluetooth Version: | 5.0 |
| Bluetooth Classification: | 2 |
| Bluetooth Audio Profile: | aptX HD |
| Bluetooth Range: | 15 m (49.213 ft) |
| Carrier Frequency: | 2.4 GHz |
| CONTROL AND PROGRAMMING | |
| Control Mode: | App |
| Display: | OLED |
| Display Size: | 1.4" |
| ELECTRICAL SPECIFICATIONS AND CONNECTIONS | |
| Power Supply: | 240 V AC 50/60 Hz |
| Power Consumption: | 10 W |
| SMPS: | No |
| Power Connector In: | IEC |
| Data Connector In: | RJ45 |
| MECHANICAL SPECIFICATIONS | |
| Height (mm): | 44 mm (1.732") |
| Depth (mm): | 110 mm (4.331") |
| Width (mm): | 483 mm (19.016") |
| Flightcase Size: | 19" |
| Rack Units: | 1 U |
| Housing: | Steel |
| Colour: | Black |
| Weight: | 1.51 kg (3.329 lb) |
| IP Rating: | IP20 (indoor use only) |
| Included Items: |
IEC cable IR Remote (battery not included) |
