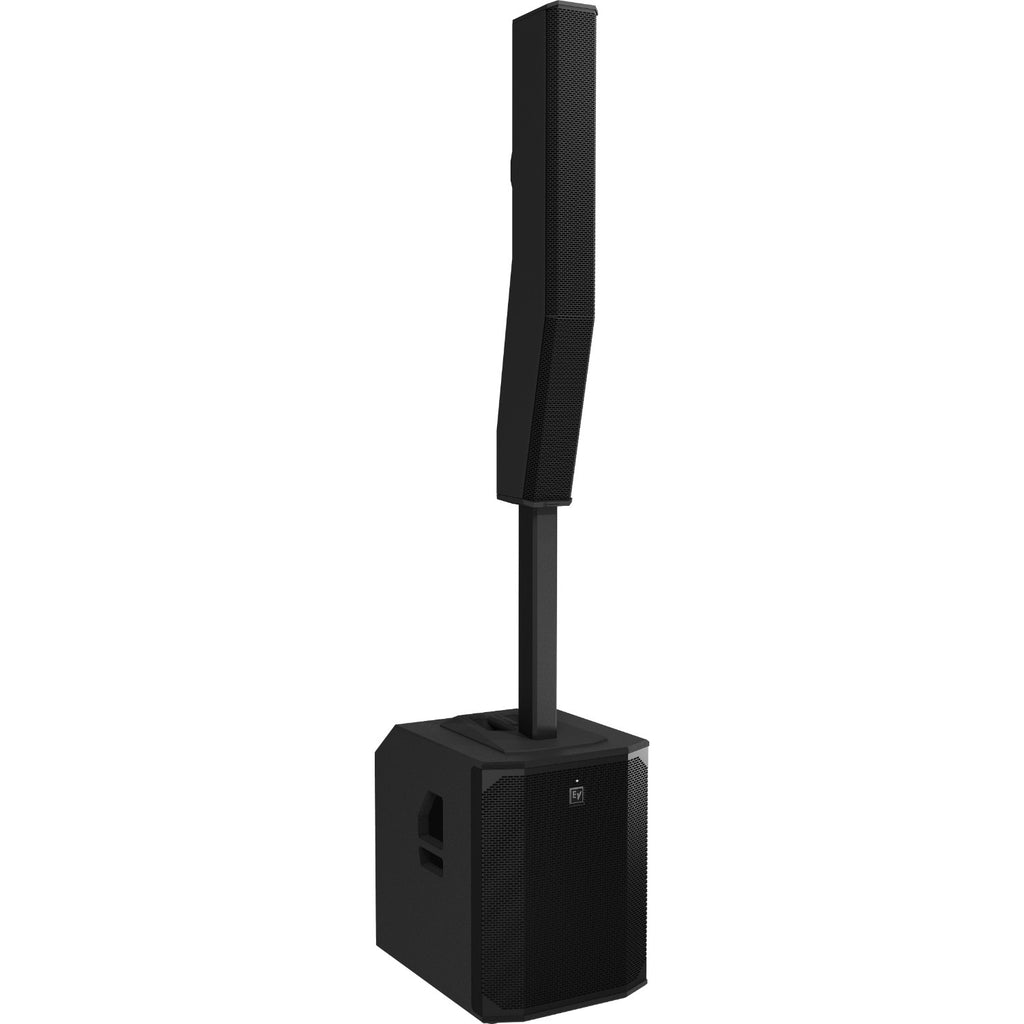

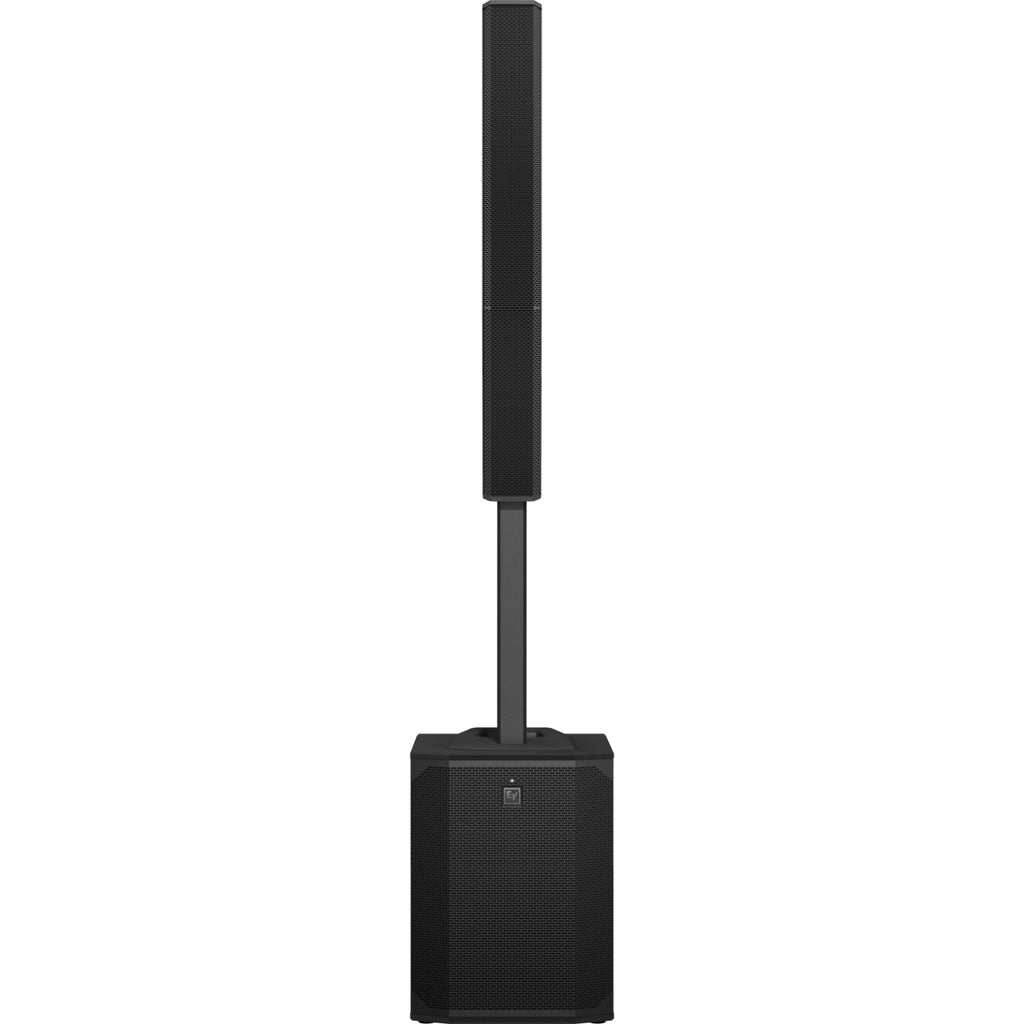

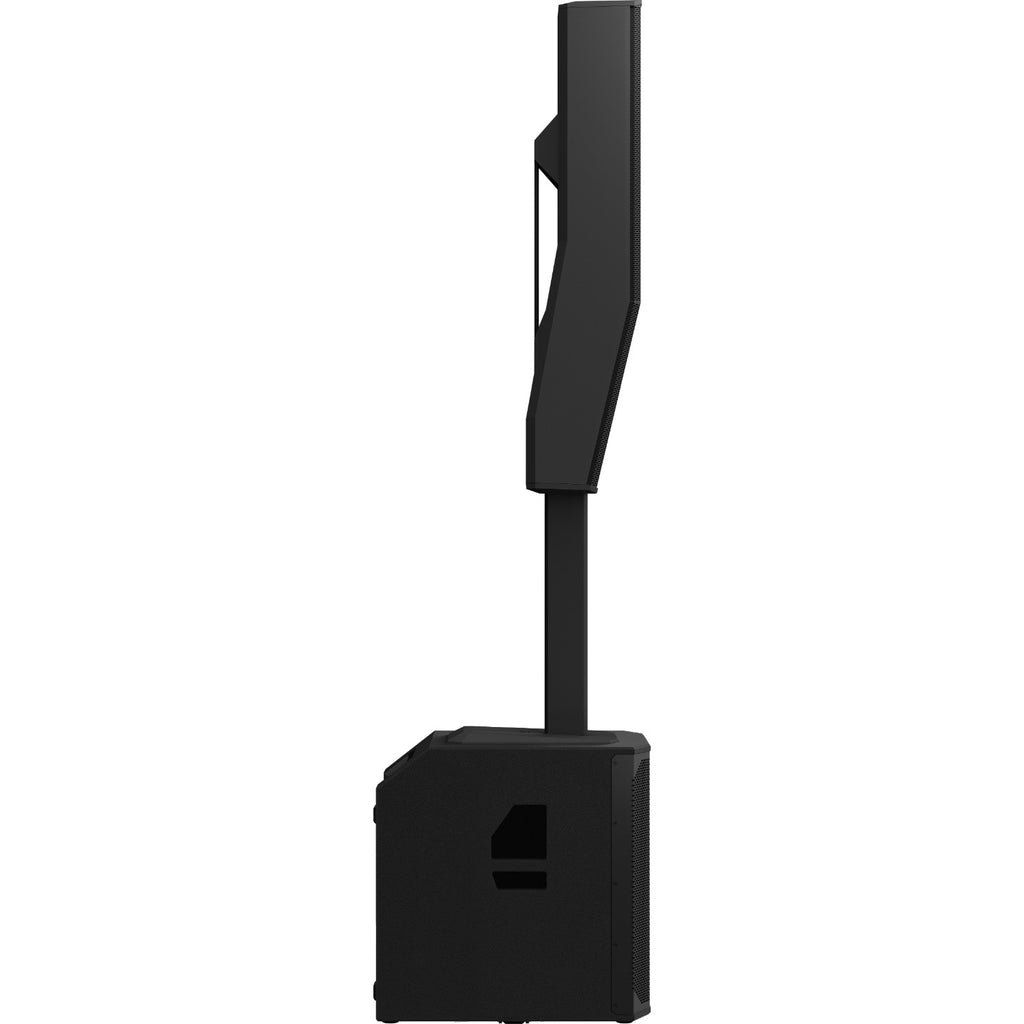

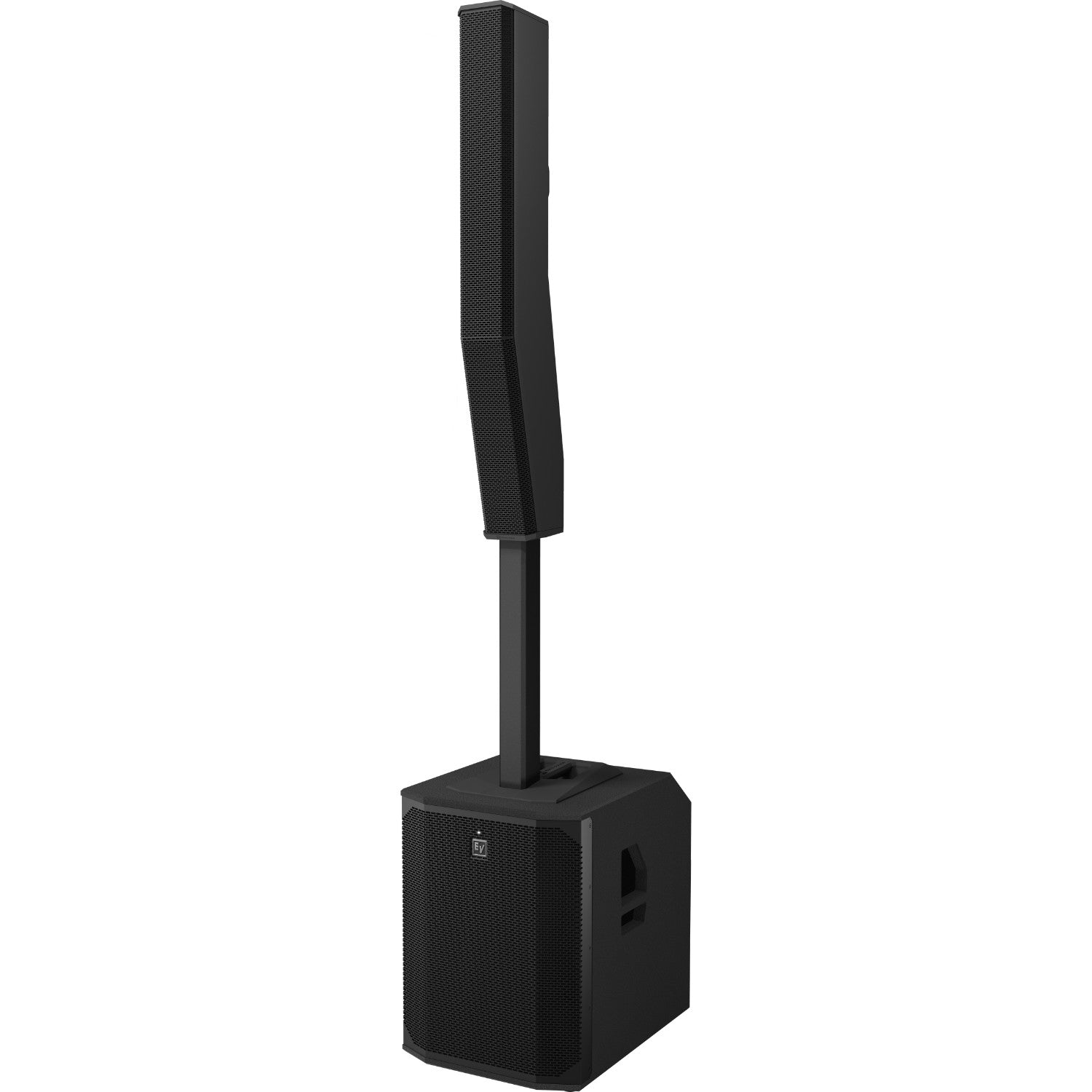

Electrovoice Evolve 70 Column Loudspeaker System
The Electrovoice Evolve 70 is a 2000W portable column loudspeaker system featuring eight 4.7-inch neodymium drivers, a 15-inch subwoofer, 133 dB max SPL, and 120° x 25° coverage.
With advanced FIR processing, Bluetooth connectivity, versatile inputs, and lightweight construction, it delivers premium sound quality and portability for professional events.
Frequently bought together:
The Electrovoice EVOLVE 70 Column Loudspeaker System is a powerful yet portable addition to the EVOLVE family. It has been designed to bring impeccable audio quality and extreme output alongside ease of use and portability to professionals looking to cover larger gigs.
The EVOLVE family is a proven leader in portability and the Electrovoice EVOLVE 70 follows this tradition. Advanced materials combined with ergonomic design principles have been used throughout the system, ensuring that the acoustic performance exceeds customer expectations while also being the lightest and most portable model in its class.
Delivering a maximum SPL of 133 dB, EVOLVE 70 features eight 4.7” neodymium drivers for clear, powerful 120°-wide consistent coverage via propriety waveguides, with array-formed asymmetrical 25° vertical coverage. Advanced FIR processing ensures linear frequency response and phase alignment. The 15” subwoofer takes low frequency extension down to 35 Hz. This massive bass output, combined with the highly efficient laminar-flow vent design and punchy, 3” voice coils ensures premium, audio performance and the perfect balance between high power, high output, and portability.

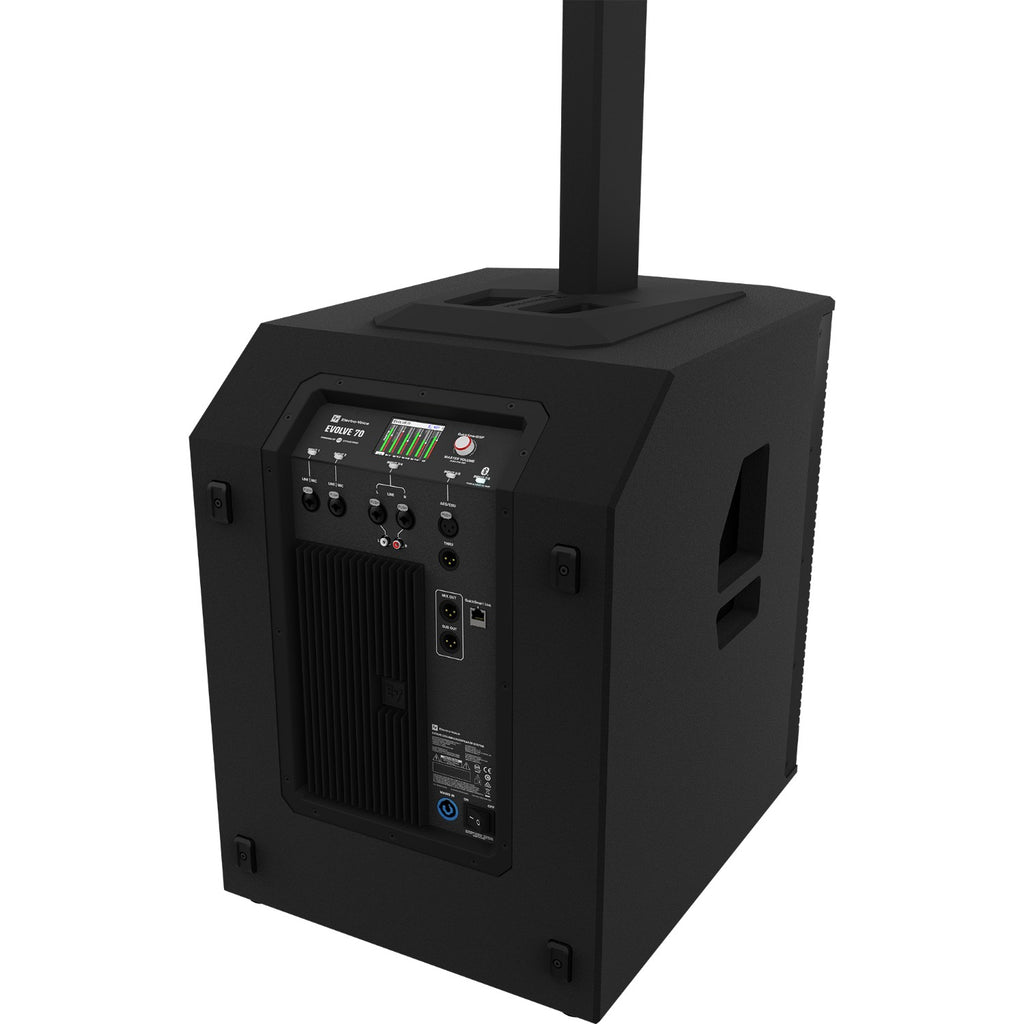

The new column loudspeaker system includes ample connections for microphones, line level, bluetooth and digital signals increasing flexibility for accommodating nearly any professional situation. These include XLR/TRS combo Mic-Line inputs, XLR and RCA line level inputs, and digital AES/EBU. EVOLVE 70 is also integrated into the recently updated QuickSmart Mobile App ecosystem, which allows the user to control it as part of a system with other Bluetooth-enabled EV portable speakers.
EVOLVE 70 has been created to cater to the evolving needs of professional users including pro DJs, bands, production companies, event organisers, and venues. Designed for rapid deployment, EVOLVE 70 features the EVOLVE 3-2-1 approach for assembly, which has set the standard in the industry for fast setup and teardown. As 3-2-1 promises, the three pieces fit together in two clicks to form one system.
Available in black or white, EVOLVE 70 elevates the design of the EVOLVE family, relying on lightweight materials and ergonomic design principles to ensure maximum portability and the familiar striking look. An aluminium distance pole separates the tops from the subs, while the neodymium drivers and advanced materials keep the weight low. The included carrying case for the array and distance pole combined with an available accessory transport dolly ensure that EVOLVE’s reputation for portability is maintained.
- Impactful sonic performance for larger, high-energy events
- 120° Wide, wave guide formed even coverage delivers crystal-clear audio everywhere

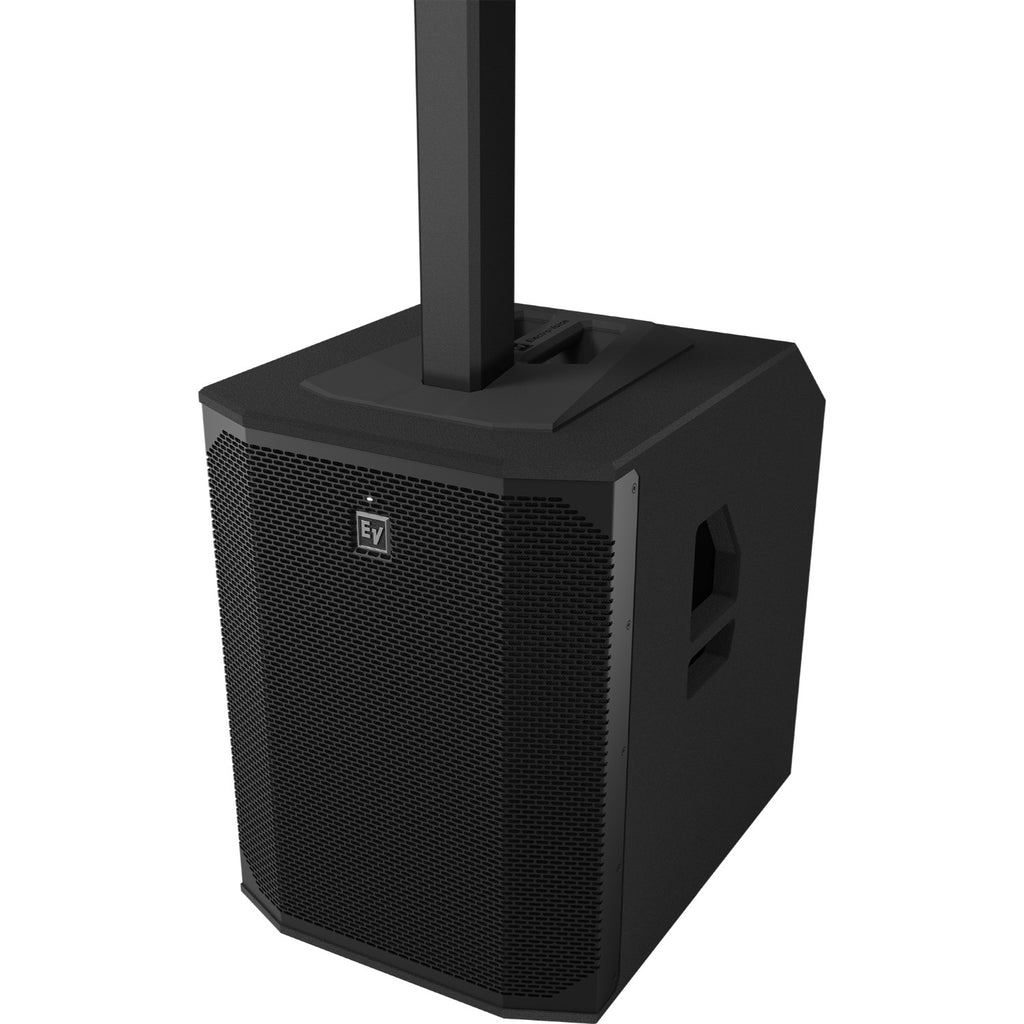

- 15" subwoofer with industry-leading laminar vent design unleashes powerful bass
- Lightweight construction from advanced materials for unbeatable portability
- Rapid deployment thanks to simple transport and setup gets the party started faster
- QuickSmart link and Bluetooth Stereo for the ultimate connectivity
- Iconic design, available in black or white to suit any aesthetic
| Column: | (8) 4.7-inch neodymium drivers |
| Subwoofer: | (1) 15-inch woofer with 3-inch voice coil |
| Frequency response (-3 dB) (Hz): | 40 Hz - 18000 Hz |
| Frequency range (-10 dB) (Hz): | 35 Hz - 20000 Hz |
| Maximum sound pressure level at a distance of 1 m (dB): | 133 dB |
| Coverage angle H x V (°): | 120° x 25° |
| Amplifier rating (W): | 2000 W |
| Power consumption (V, Hz, A): | 100 - 240 VAC, 50 - 60 Hz, 2.1 ~ 0.9 A |
| LF channel rating (W): | 1000 W |
| HF channel rating (W): | 1000 W |
| Crossover frequency (Hz): | 160 Hz |
| Connector type: | powerCON® power input; Dual XLR/TRS combo jack mic/line inputs with switchable 48V phantom power; Stereo XLR/TRS combo jack line input; Stereo RCA line input; XLR AES/EBU input; XLR AES/EBU thru; XLR Mix out; XLR Sub out; RJ45 QuickSmart Link connector; Bluetooth Stereo input with TWS |
| Material: | Plywood with polyurea coating (subwoofer), Composite (column), Aluminum (pole) |
| Grille material: | Steel with black or white powder coat |
| Color: | Black or white |
| Dimensions (H x W x D) (in): | 24.5 in x 17.7 in x 23.9 in (subwoofer); 42.9 in x 5.2 in x 10.2 in (column); 29.3 in x 2.6 in x 3.8 in (pole) |
| Dimensions (H x W x D) (mm): | 623 mm x 450 mm x 607 mm (subwoofer); 1090.1 mm x 131.4 mm x 259 mm (column); 745 mm x 66 mm x 95.8 mm (pole) |
| Assembled dimensions (H x W x D) (in): | 88.9 in x 17.7 in x 23.9 in |
| Assembled dimensions (H x W x D) (mm): | 2259 mm x 450 mm x 607 mm |
| Shipping dimensions (H x W x D) (in): | 27.3 in x 20.4 in x 26.7 in (subwoofer); 45.2 in x 7.6 in x 14.4 in (column and pole) |
| Shipping dimensions (H x W x D) (mm): | 693 mm x 520 mm x 677 mm (subwoofer); 1150 mm x 193 mm x 365 mm (column and pole) |
| Weight (lb): | 78.3 lbs |
| Weight (kg): | 35.5 kg |
| Shipping weight (lb): | 72.8 lb (subwoofer); 25.1 lb (column and pole) |
| Shipping weight (kg): | 33 kg (subwoofer); 11.4 kg (column and pole) |
