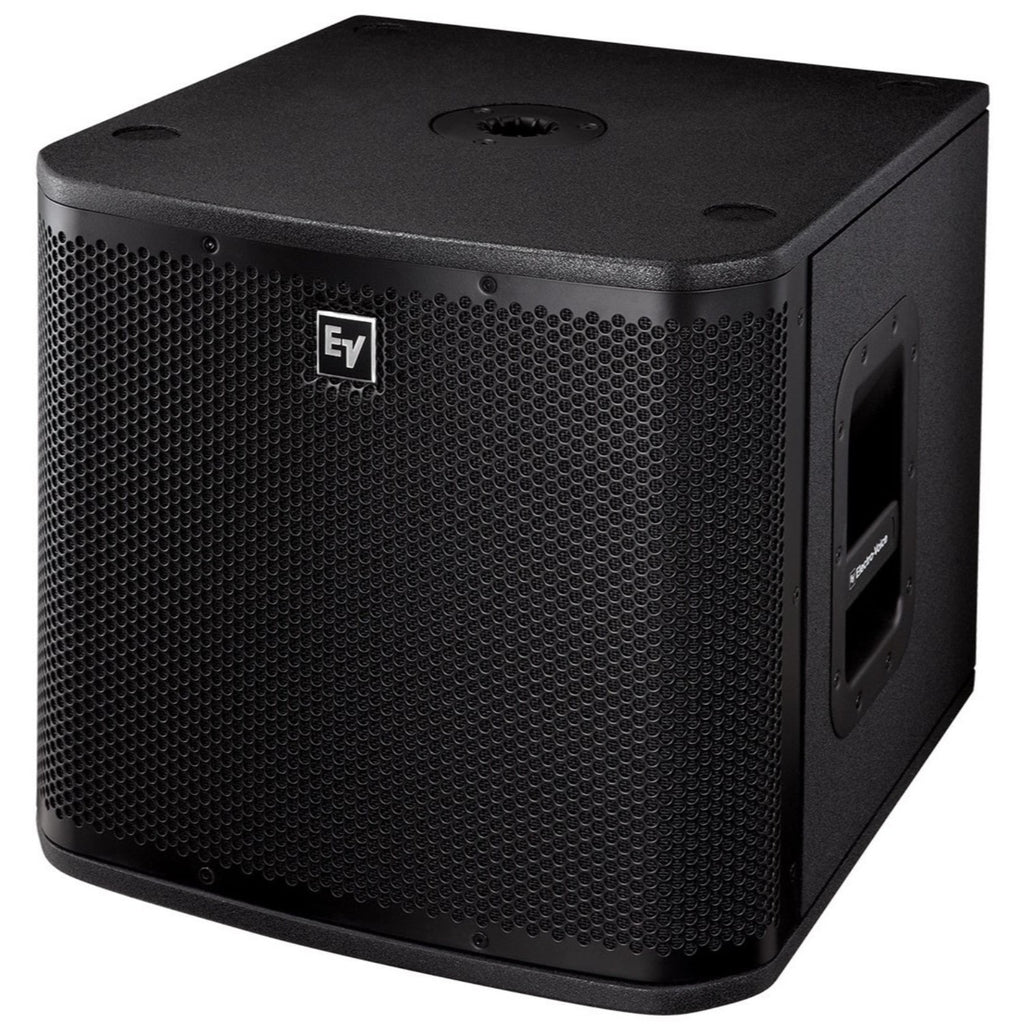

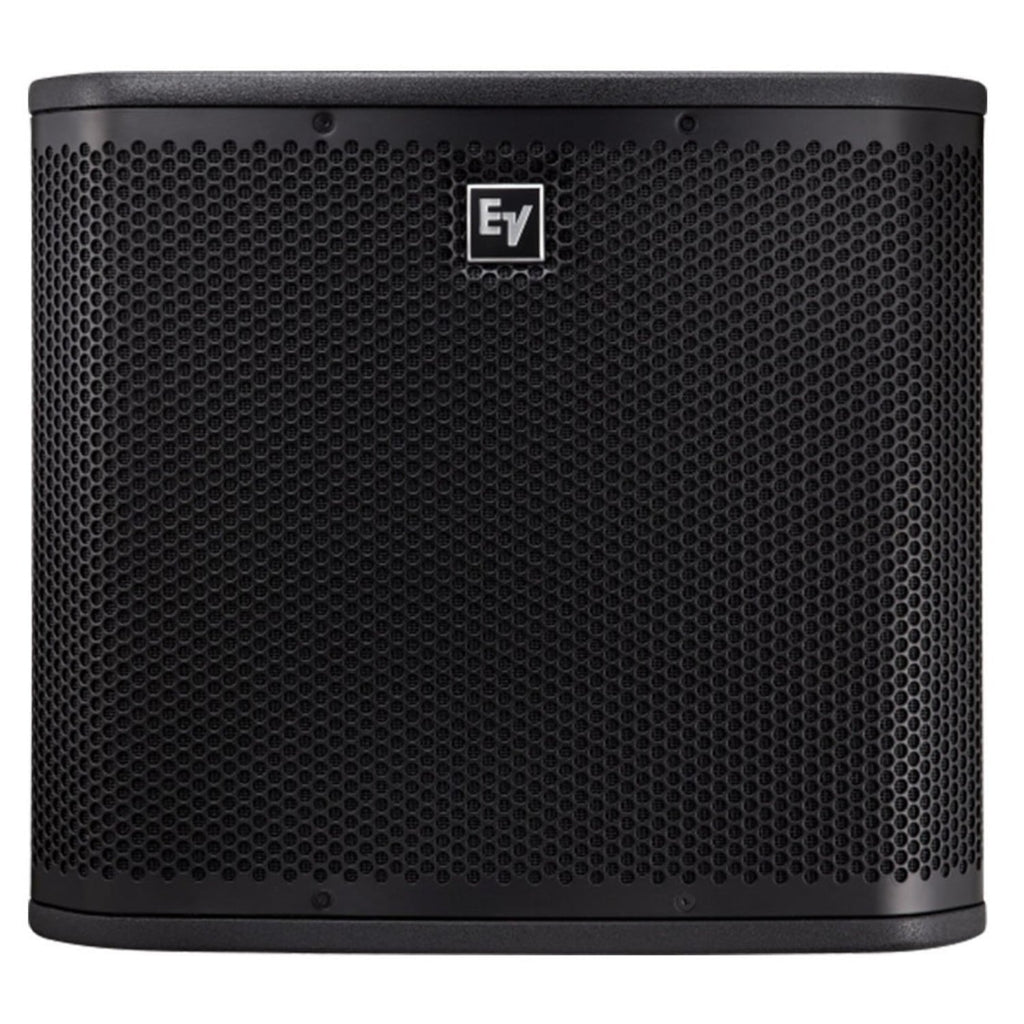

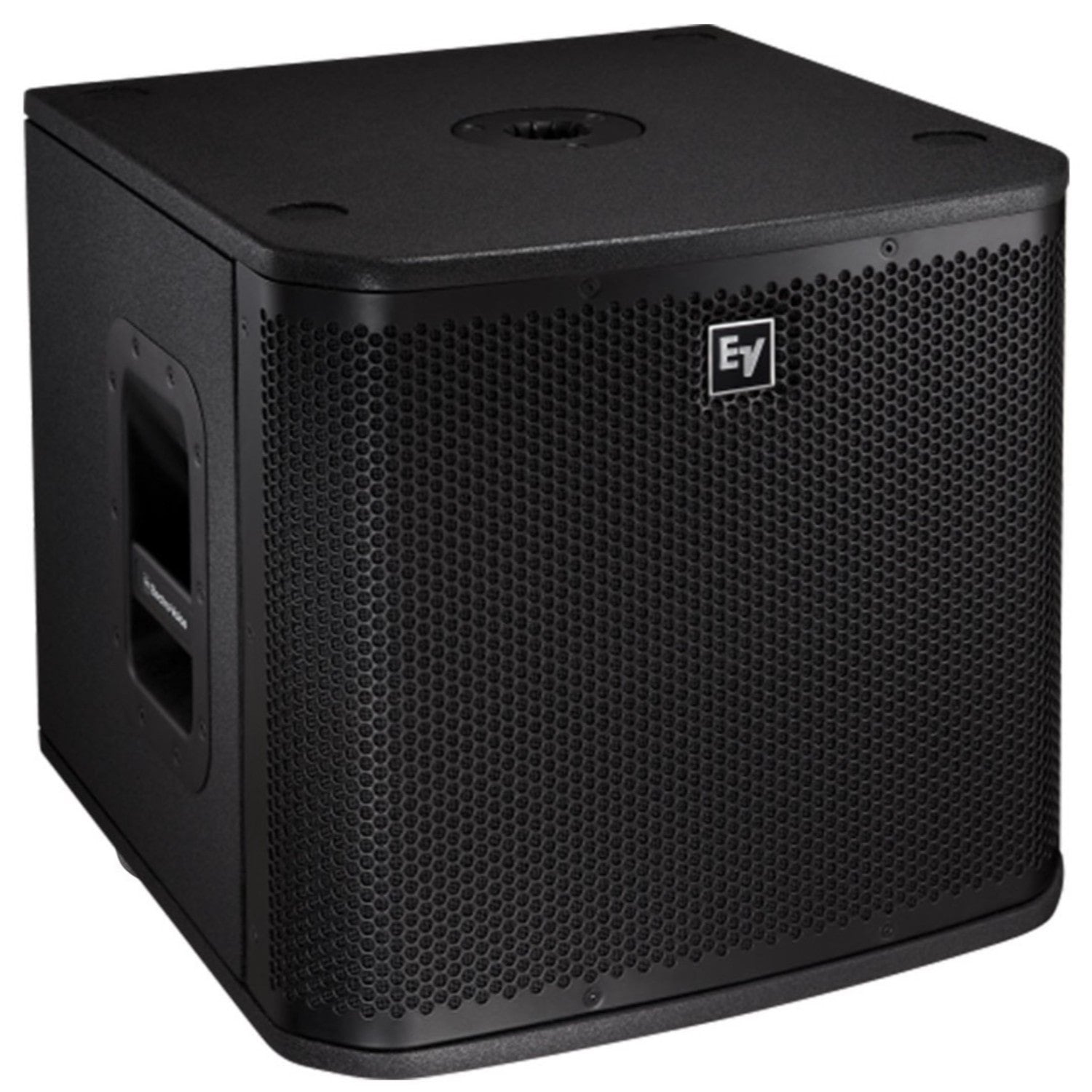

Electrovoice ZX1-Sub Passive 12" Subwoofer
- 400 watts continuous power handling with 1600 watt peak.
- Ideal for ZX1, EVID, and EVU models.
- Adds a deep low-frequency punch.
- Ideal for smaller fixed installations or live sound systems.
Frequently bought together:
Only to be expected from Electro-Voice, the Zx1-Sub packs a big-stage punch. Electro-Voice drivers and components are legendary—all proven at the highest levels of live performance. Zx1-Sub wraps Electro-Voice technology in a durable, lightweight cabinet, resulting in the most powerful and versatile compact subwoofers available today. Match Zx1-Sub with the Zx1 to create a truly exceptional professional sound system.
The Electro-Voice Zx1 Series loudspeakers have carefully matched electronics and transducers that sound great right out-the-box. These products make it easy to set up a high quality sound system quickly, with a minimum amount of cables and external processing. The Electro-Voice Zx1-Sub is a compact, loudspeaker system, which is designed for portable and permanent sound reinforcement applications that require maximum space saving.
The Electrovoice Zx1-Sub utilises EVS-12S, a high output, low distortion, 305 mm (12 inch) woofer. The Zx1-Sub plywood enclosure is made for lasting durability and lightweight requirements. Solid, easy-to-grip handles on each side and pole mounts make the Zx1-Sub ideal for many applications.
- 400 watts continuous power handling with 1600 watt peak
- Ideal for pairing with smaller full-range models such as the EV ZX1
- 15 mm Plywood Enclosure, Internally Braced, with Textured Paint
- EVS-12S 305 mm (12 in) Woofer for Powerful, Engaging Bass Response
- Pole Mount for Full-Range Systems
- In-built handles for easy transport
Freq. Response (-3dB): | 53 Hz – 125 Hz |
Freq. Range (-10dB): | 42 Hz – 200 Hz |
Rec. Hipass Frequency: | 38 Hz |
Axial Sensitivity: | 94 dB |
Max. Measured SPL: | 127 dB |
Coverage (Horiz. x Vert.): | Omnidirectional |
System Type: | passive subwoofer |
RMS Power: | 400W |
Peak Power: | 1600W |
LF Transducer: | EVS-12S, 305 mm (12 in) Woofer |
Nominal Impedance: | 8 ohms |
Minimum Impedance: | 7.5 ohms |

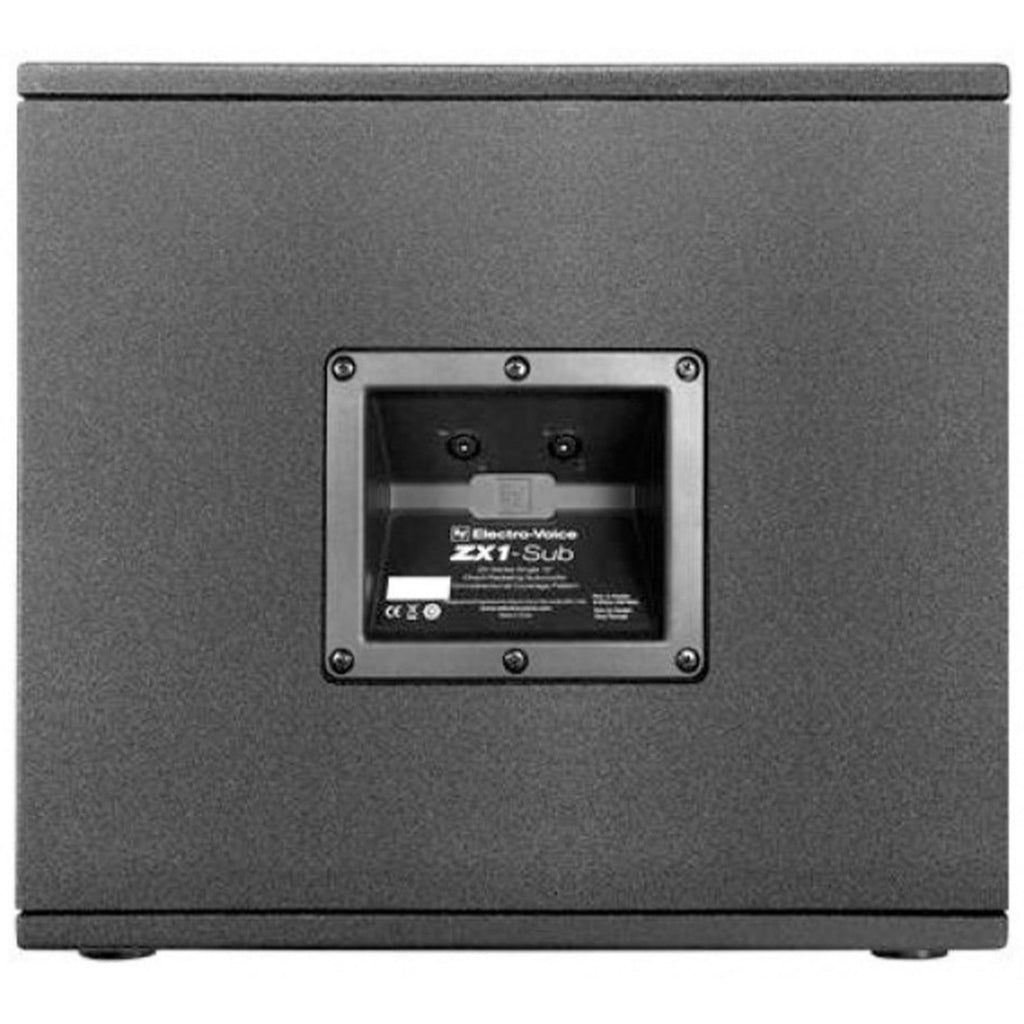

Connectors: | NL4 (x2) |
Enclosure Material: | 9-ply 15 mm Plywood, Internally Braced, with Textured Paint |
Grille: | 16 GA Steel with Black Powdercoat |
Dimensions (H x W x D): |
400 mm x 444.5 mm x 457.2 mm (15.75 in x 17.50 in x 18.00 in) |
Net Weight: | 19.8 kg (43.6 lb) |
Shipping Weight: | 25.4 kg (56.0 lb) |
