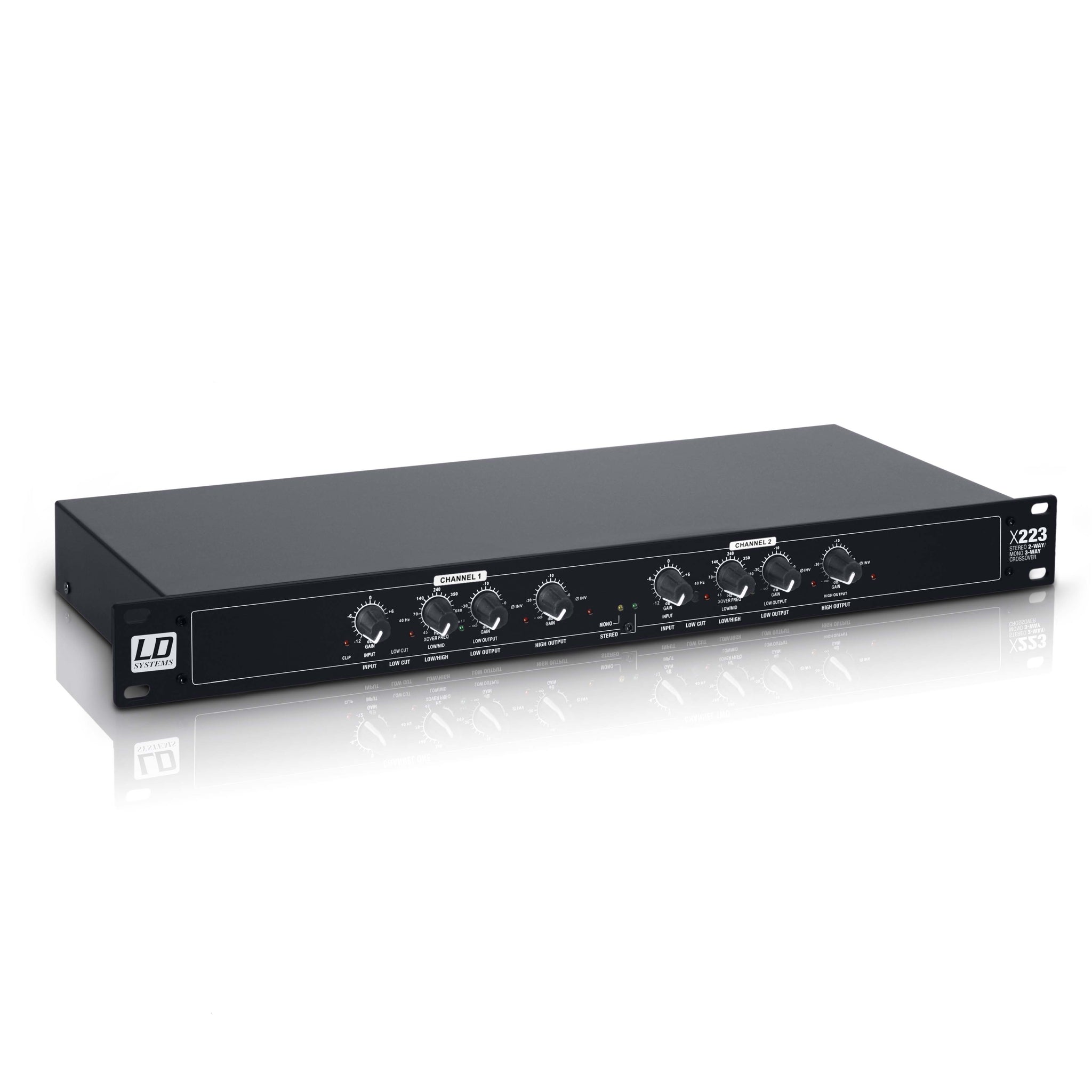

The LD Systems X223 is a stereo 2 way / mono 3 way crossover in standard 19"/1U rack format. Its rugged construction, high quality and robust knobs as well as the integrated power unit are rarities in this price range.

It provides a mono sub output, an adjustable crossover frequency for each channel, adjustable LF/HF and input gains, phase reverse controls, switchable 40 Hz High-Pass filters and symmetrical XLR In- and Outputs. With the LD Systems X223 you get a crossover fulfilling the professional standards and offering great quality and sound characteristics.

  • Stereo 2-Way Crossover
  • Mono 3-Way Crossover
  • 40Hz High Pass Filter
  • Mono Sub Output
  • Rugged 1U Rack Housing
  • Balanced XLR Inputs
  • Adjustable LF/HF Volumes
  • Phase Reverse Controls
  • Great Value For Money
Product number: LDX223
Product type: active crossover
Type: analog, 2-way stereo/3-way mono
Frequency response: 20 - 20,000Hz
Dynamic range: 106dB
Signal-to-noise ratio: > 93dB
THD: < 0.004 %
Crosstalk: < - 80 (20 - 20.000 Hz)dB
Max. input level: +21 (balanced or unbalanced)dBu
Max. output level: +21 (balanced or unbalanced)dBu
Input impedance (kOhms): 50000kOhm
Output impedance: 200 Ohm(s)
Controls: LF sum, mono/stereo mode, 2 x low gain, 4 x inv switch, 2 x crossover low/mid, 2x frequency switch x1/x10, 2 x high gain, 2 x highpass (40 Hz), 2 x crossover frequency low/high, 2 x input gain
Indicators: mono, 2 x clip, 2 x highpass, stereo, 2 x crossover x 10, 4 x inv.
Line inputs: 2
Line input connectors: XLR
Line outputs: 4
Line output connectors: XLR
Mains connector: IEC socket
Operating voltage: 220 V AC - 240 V AC
Width: 482mm
Height: 44.5mm
Depth: 153mm
Weight: 2.6kg
