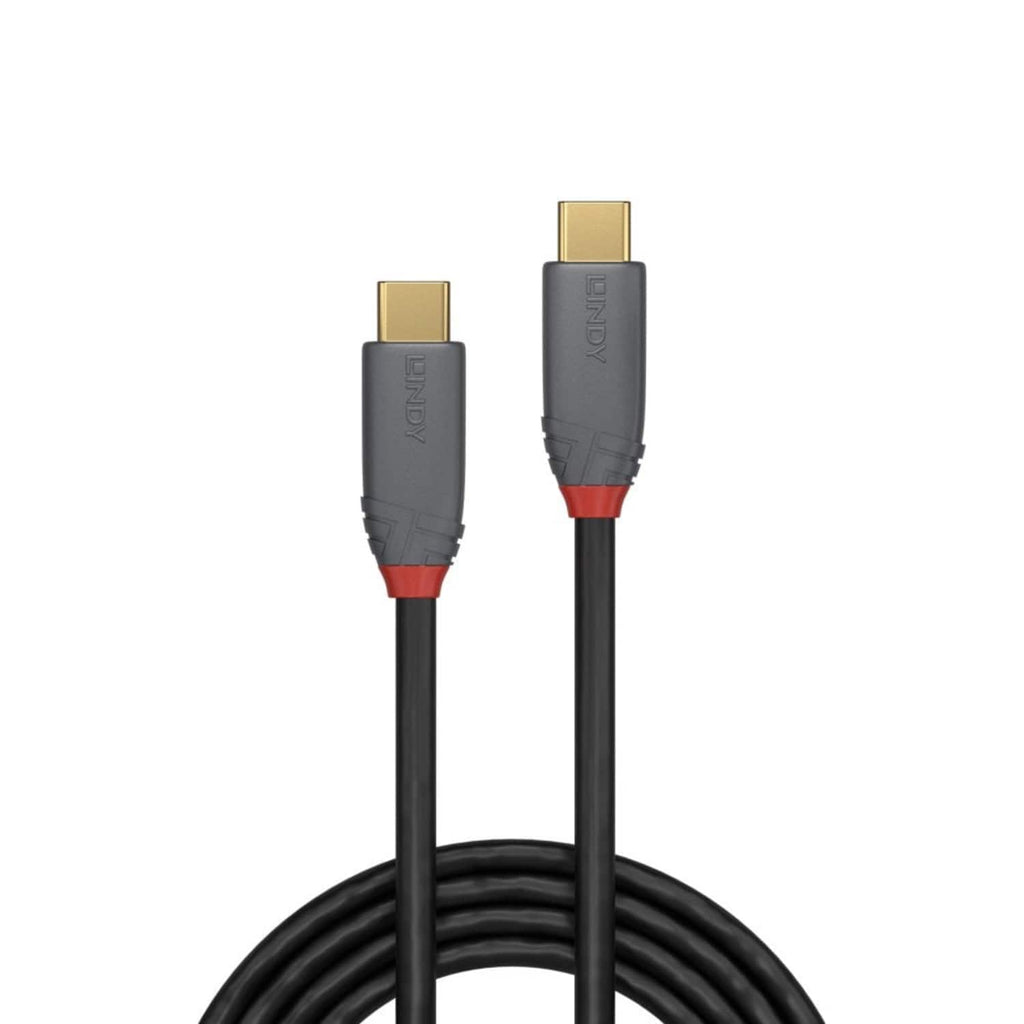

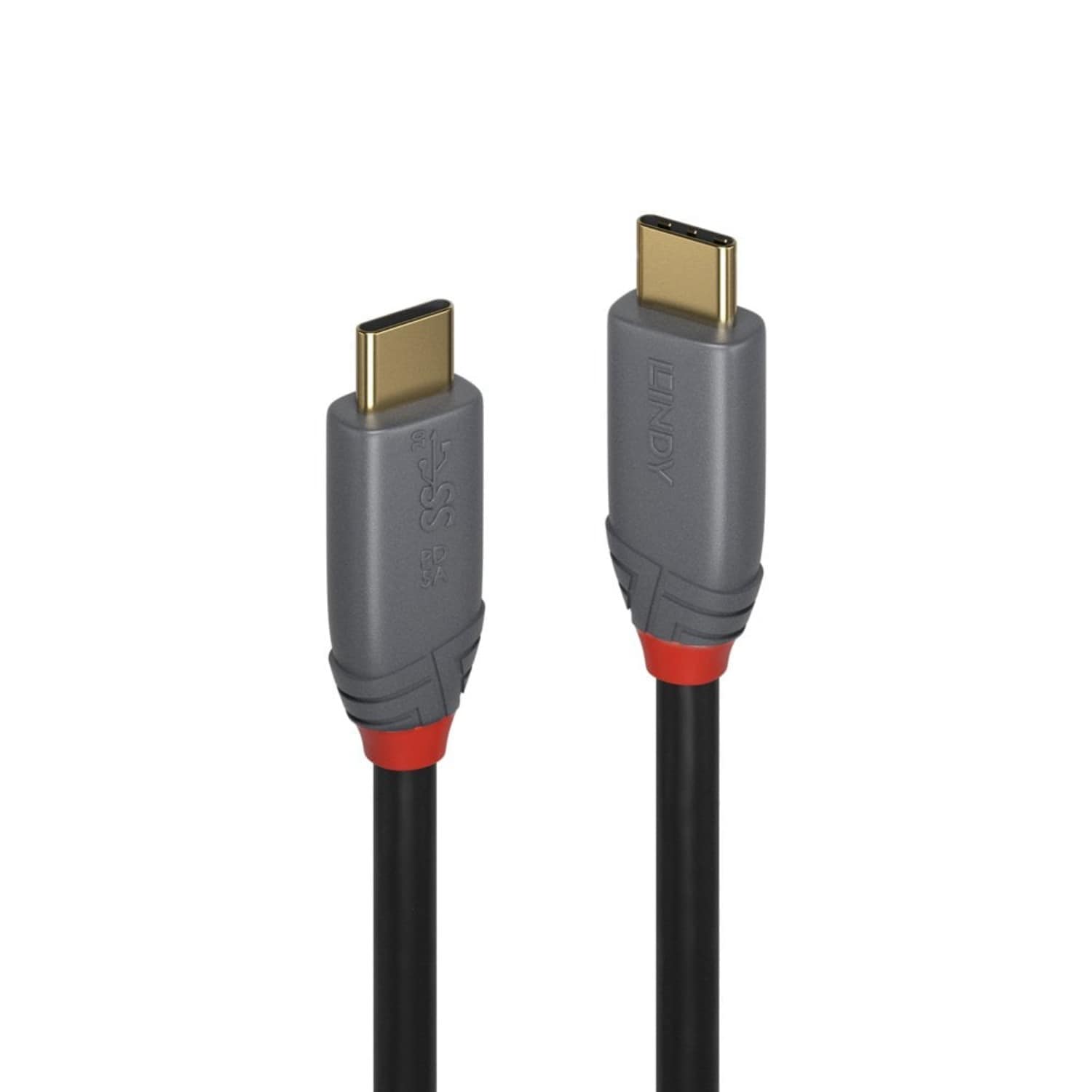

Lindy USB 3.2 Gen 2 (C-C) Cable 2.0m (20Gbps / 100W / PD)
Lindy USB 3.2 Gen 2 (C-C) Cable 2.0m (20Gbps / 100W / PD)
- Professional choice USB 3.2 Gen 2x2 Type C to C, 5A (100W), cable for commercial and high performance AV and IT installations
- SuperSpeed USB 20Gbps - supports data transfer speeds up to 20Gbps, Power Delivery and DisplayPort Alternate Mode
Frequently bought together:
The full-featured Lindy Anthra Line USB 3.2 Type C to C, 5A, cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.
Lindy Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 20Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 100W (20V 5A) of power to devices using the most efficient power delivery profiles. The cable supports DisplayPort Alternate mode at max. 4K 60Hz.
USB Type C features a new reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Lindy have adapted the naming of their USB 3 cables to follow the updated USB specification:
- USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps
- USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps
- USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
- USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
- Professional choice USB 3.2 Gen 2x2 Type C to C, 5A (100W), cable for commercial and high performance AV and IT installations
- SuperSpeed USB 20Gbps - supports data transfer speeds up to 20Gbps, Power Delivery and DisplayPort Alternate Mode
- Robust TPE housing, gold plated connectors and contacts
- Triple shielded cable, corrosion resistant tinned copper conductors
| CONNECTORS | |
| Connector A: | USB 3.2 Type C Male |
| Connector B: | USB 3.2 Type C Male |
| Housing Material: | TPE |
| Shielding in head shell: | Copper Foil |
| Connector Plating: | Gold |
| Pin Construction: | Copper |
| Pin Plating: | Gold |
| Dimensions (approx.) WxDxH: | 13x41x7.75mm (0.51x1.61x0.31in) |
| CABLE CONSTRUCTION | |
| Length: | 2m (6.56ft) |
| Standard: | USB 3.2 Gen 2x2 |
| Power Delivery: | PD 3.0 |
| Max. Power: | 100W (20V 5A, Standard Power Range (SPR)) |
| Colour: | Black |
| Type: | Round |
| Jacket Diameter: | 5.4mm (0.21in) |
| Jacket Material: | TPE |
| Conductor Material: | Tinned Copper |
| Conductor Gauge Power: | 22AWG |
| Conductor Gauge Data: | 29AWG/32AWG |
| Shielding: | Tinned Copper 85% |
| SPECIFICATIONS | |
| Supported Bandwidth: | 20Gbps |
| Maximum Resolution: | 4K 4096x2160@60Hz |
| Nominal Attenuation: | 0.5Mhz-15Ghz<40dB |
| Minimum Bend Radius: | 27mm (1.06in) |
| Operating Temperature: | 0°C - 40°C (32°F -104°F) |
| Storage Temperature: | -20°C - 60°C (-4°F -140°F) |
| MISCELLANEOUS | |
| Packaging Type: | Polybag |
| Warranty (Years): | 10 |
| Product Compliance: | RoHS, REACH, California Proposition 65 & UL |
