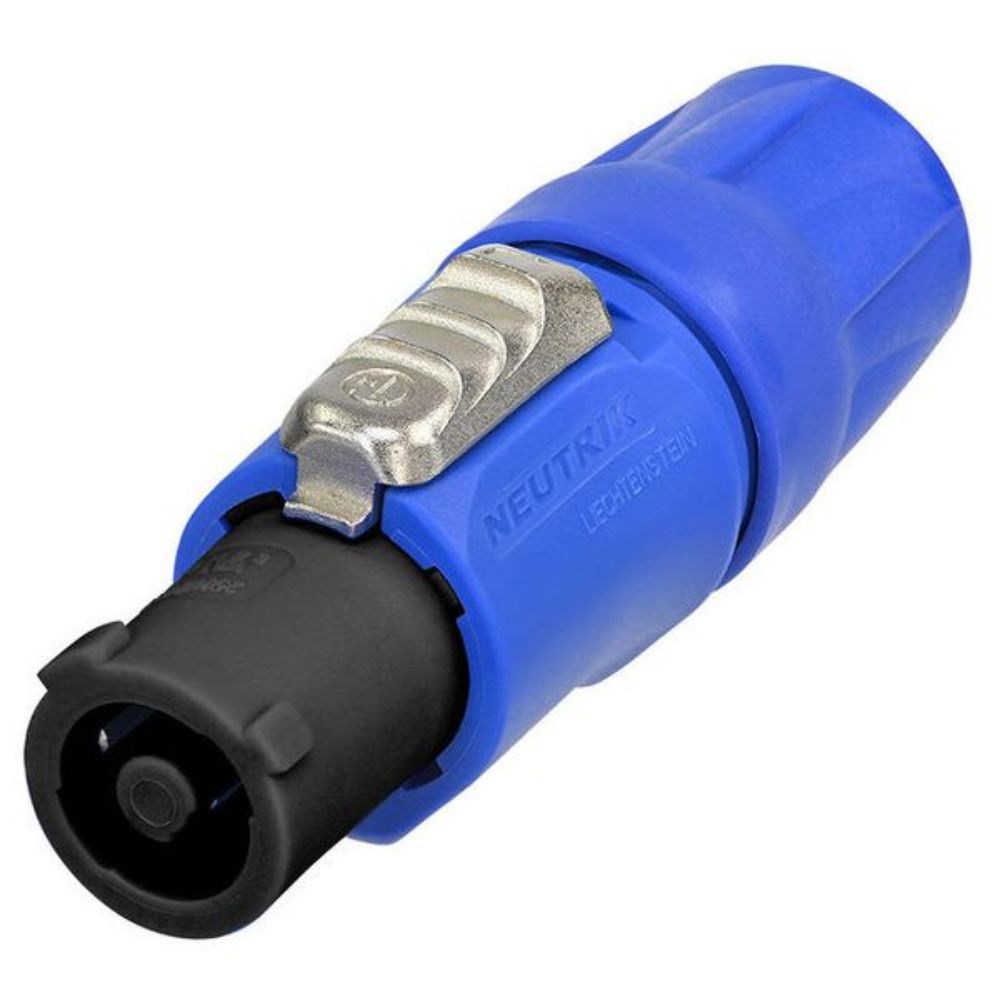

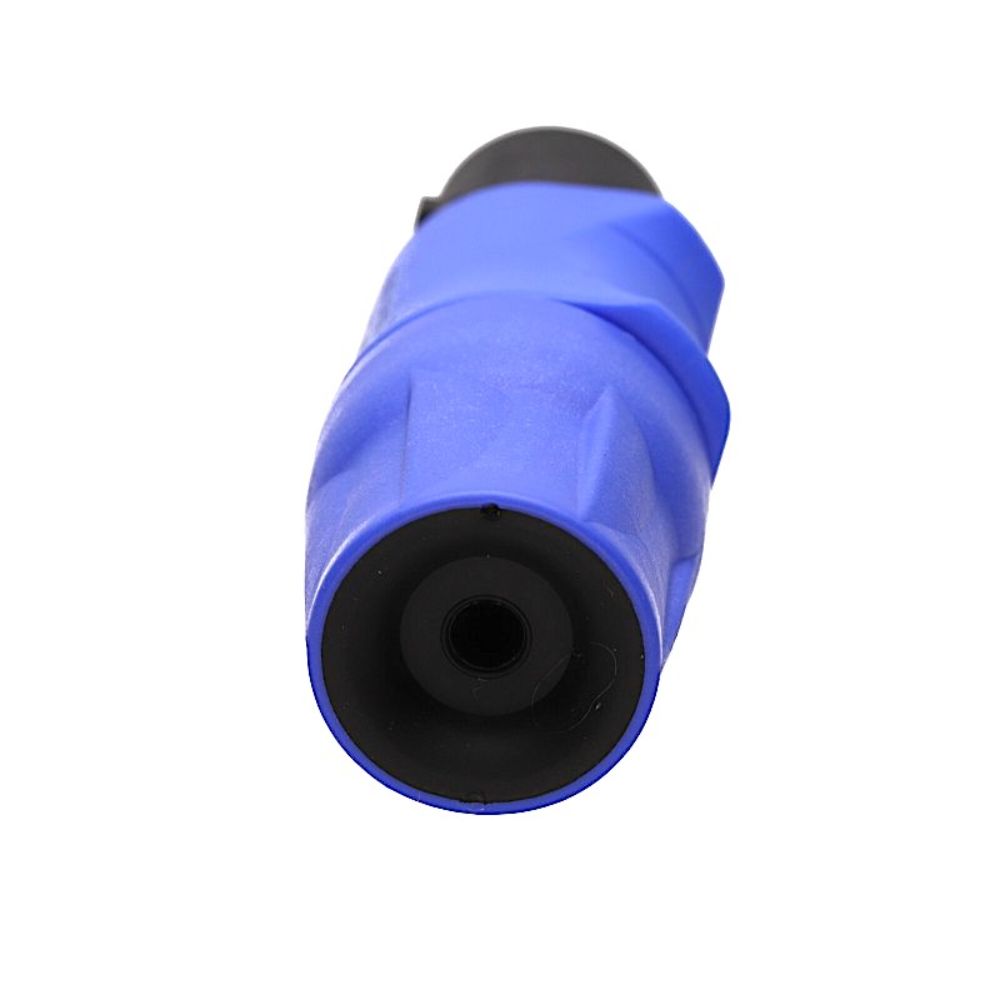

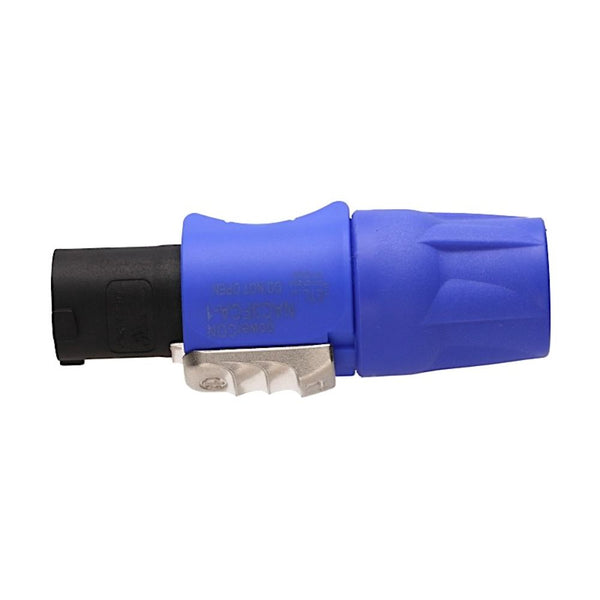

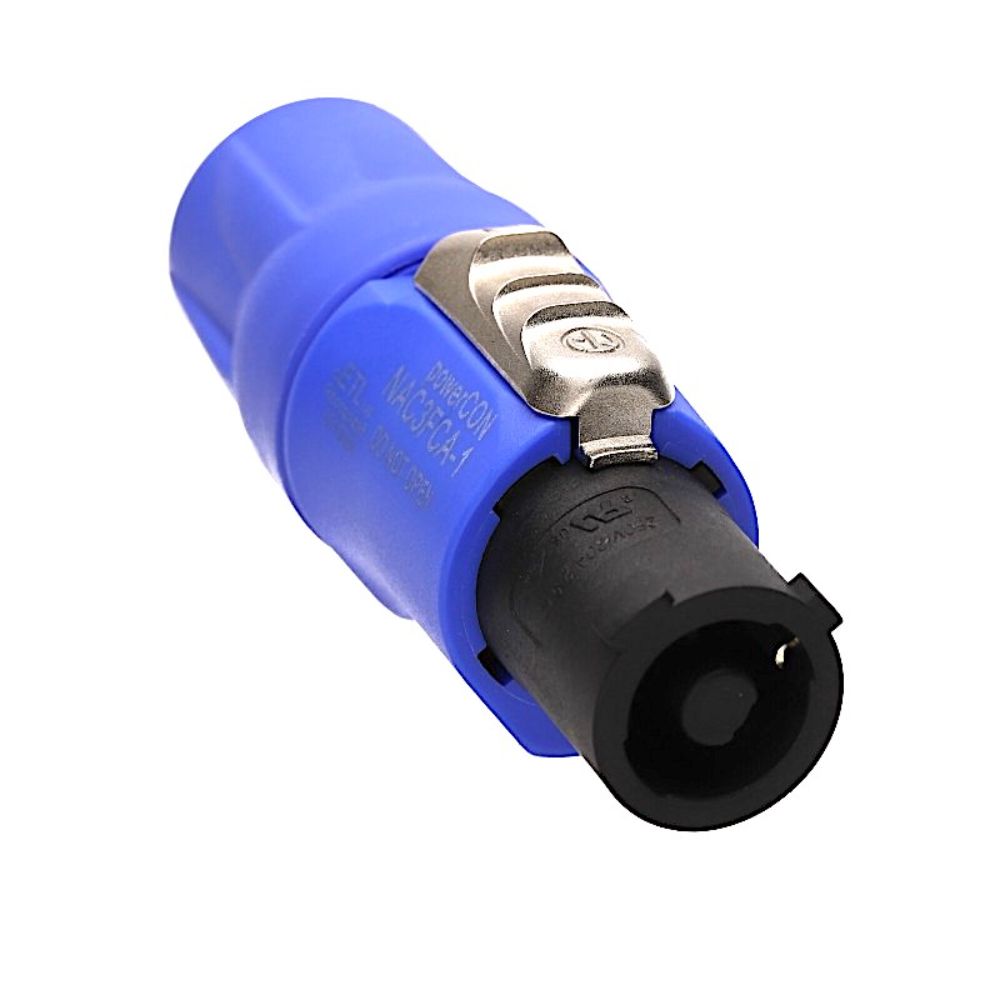

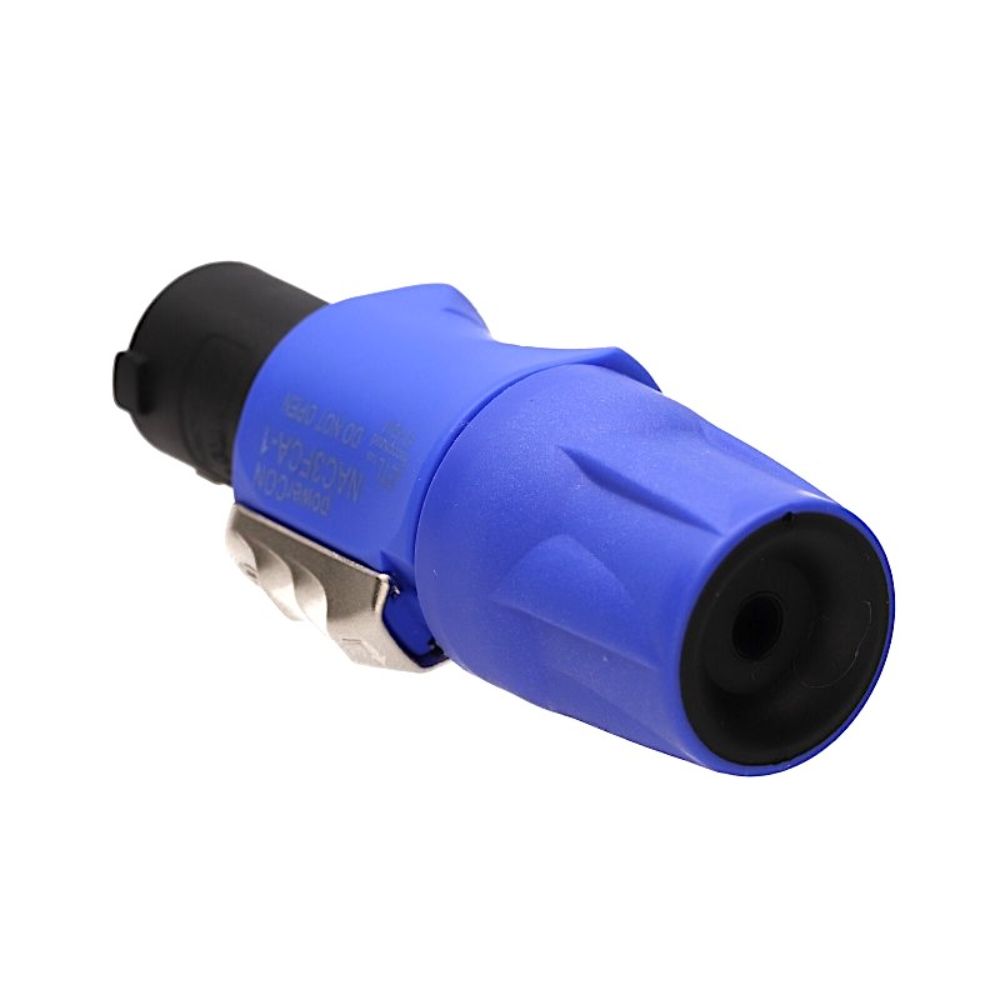

Neutrik PowerCON Mains Input 3 Pin 20A Cable Connector NAC3FCA-1

See more product details
We are here to help! 020 8579 0144
Regular price £6.99 £0.00 Unit price per
In Stock

In Stock

Free next day delivery

On all orders over £100

Other Items to consider

Keep browsing or just give us a call: 020 8579 0144. We are here to help!

Lockable cable connector, for power-in, with screw terminals, blue

The Neutrik PowerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Attention: The Neutrik PowerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!

  • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Fast and easy twist lock latching system
  • Extremely robust and reliableErgonomic design

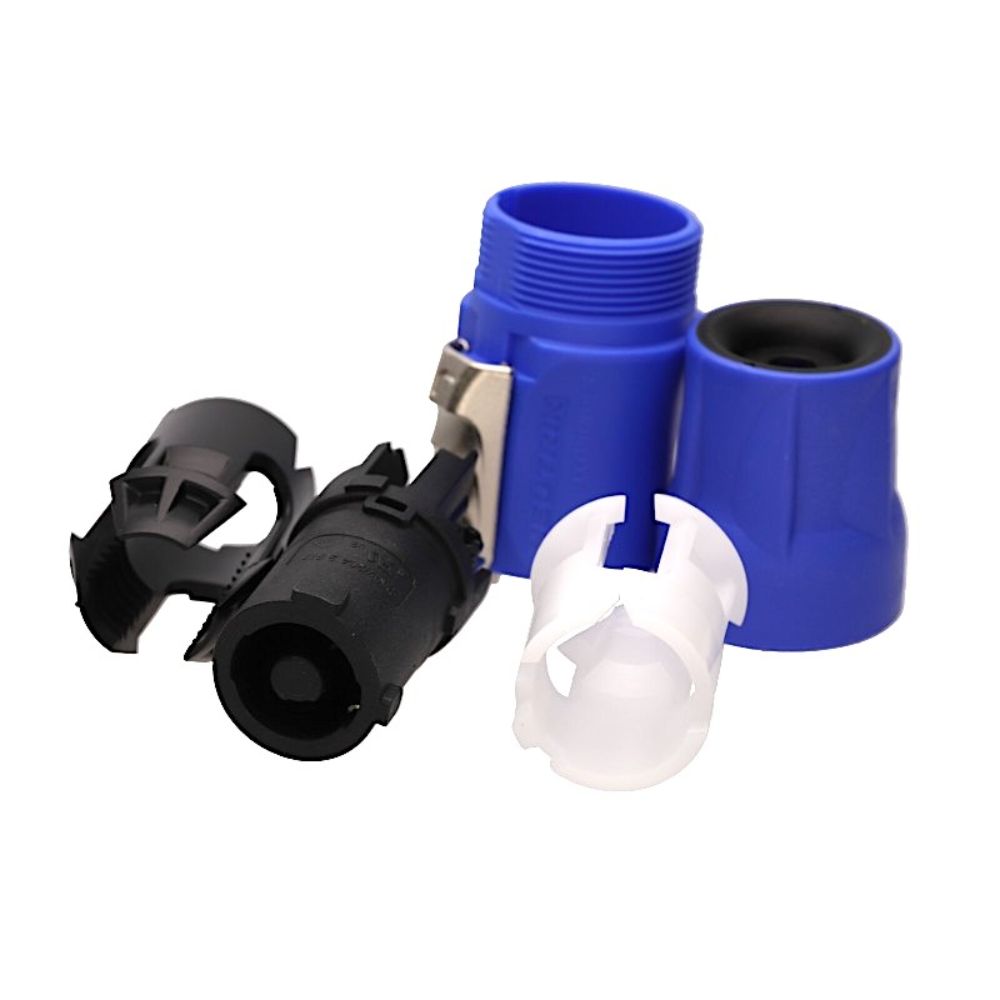

  • Unique Neutrik chuck type strain relief
  • Improved kink protection by two-component bushing
  • UL, cUL recognised components
  • VDE certified
  • SEV approved
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product
Product
Title: NAC3FCA
Gender: female
Electrical
Contact resistance: <= 3 m ohms
Dielectric strength: 4 kVdc / 2.8 kVac
Insulation resistance: > 0.1 G ohms (after damp heat test IEC 68-2-30)
Number of electrical contacts: 2 + PE
Rating Europe: EN 61984:20 A 250 V AC
Rating USA: UL 1977:20 A 250 V AC
Mechanical
Cable O.D.: 6 - 15 mm*
*Cable O.D. range limited to 6 mm - 14 mm acc. VDE
Lifetime: > 1000 mating cycles
Wiresize: 2.5 mm²
Wiresize: 12 AWG
Locking device: Quick Lock
Material
Contact plating: 4 micrometre Ag
Contacts: Bronze (CuSn6)
Insert: Polyamide (PA 6 30 % GR)
Locking element: Zinc diecast (ZnAl4Cu1)
Shell: Polyamide (PA 6 30 % GR)
Strain relief: Polyacetal (POM)
Environmental
Temperature range: -30 °C to +80 °C
Protection class: IP20
Flammability Rating: UL 94 HB
