Palmer PAN01 Passive Single DI Box
Palmer PAN01 Passive Single DI Box
Highlights
- 6.3mm Large Jack input
- Parallel "THRU" output (6.3mm Large Jack)
We are here to help!
020 8579 0144
Frequently bought together:
Keep browsing or just give us a call: 020 8579 0144. We are here to help!

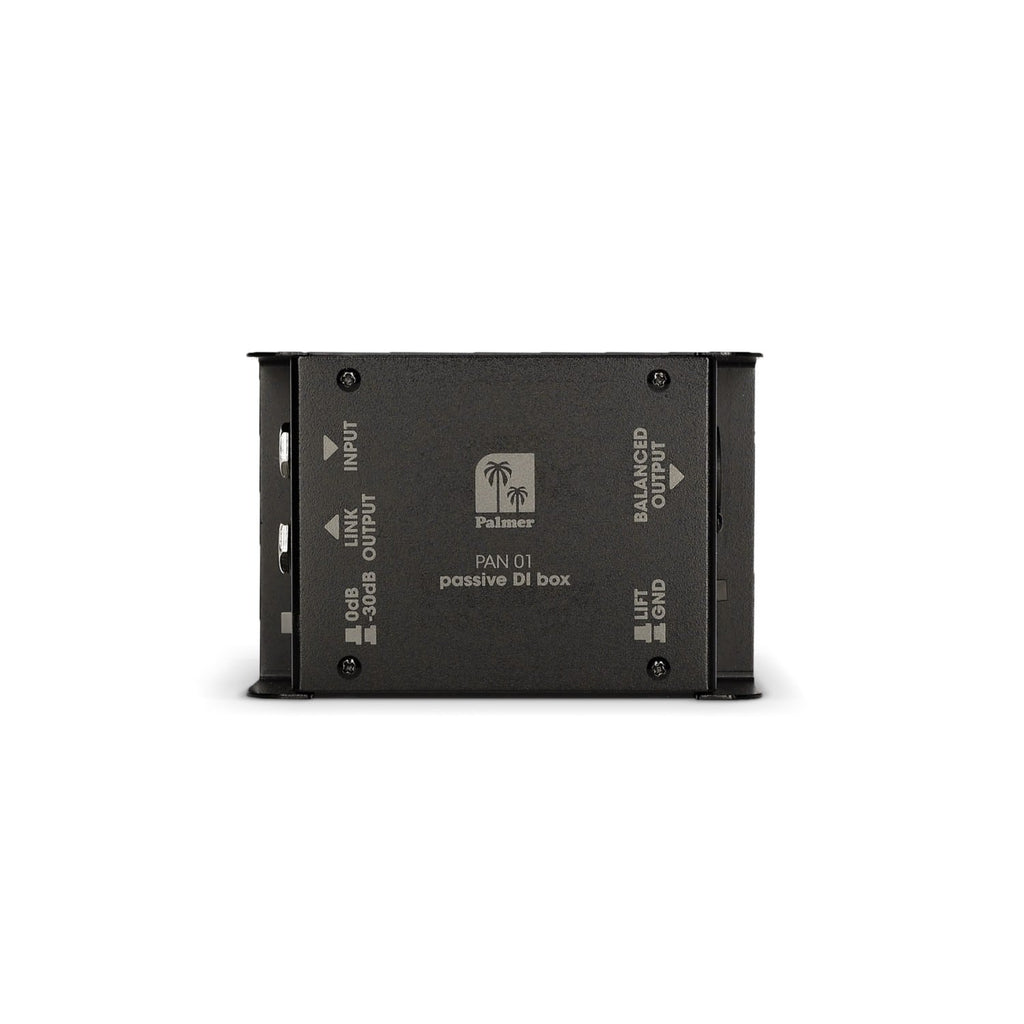

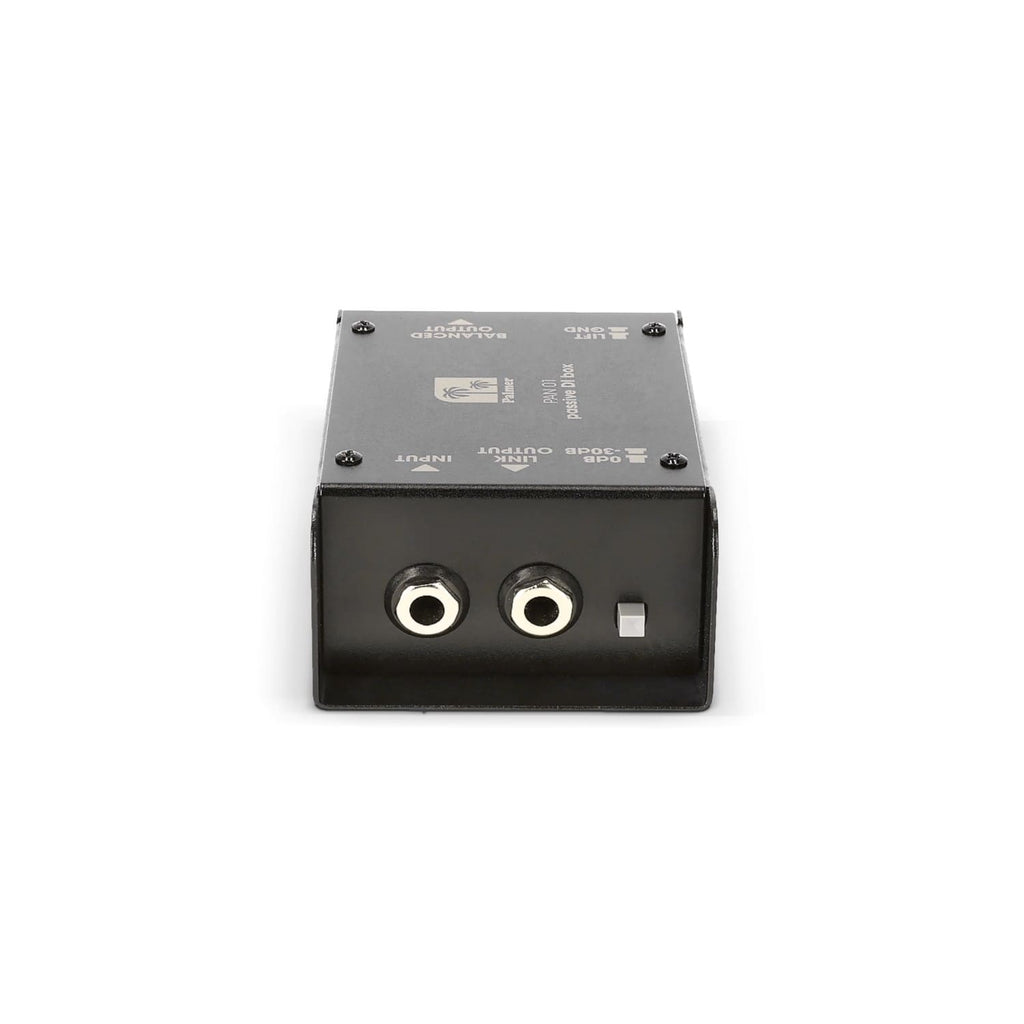

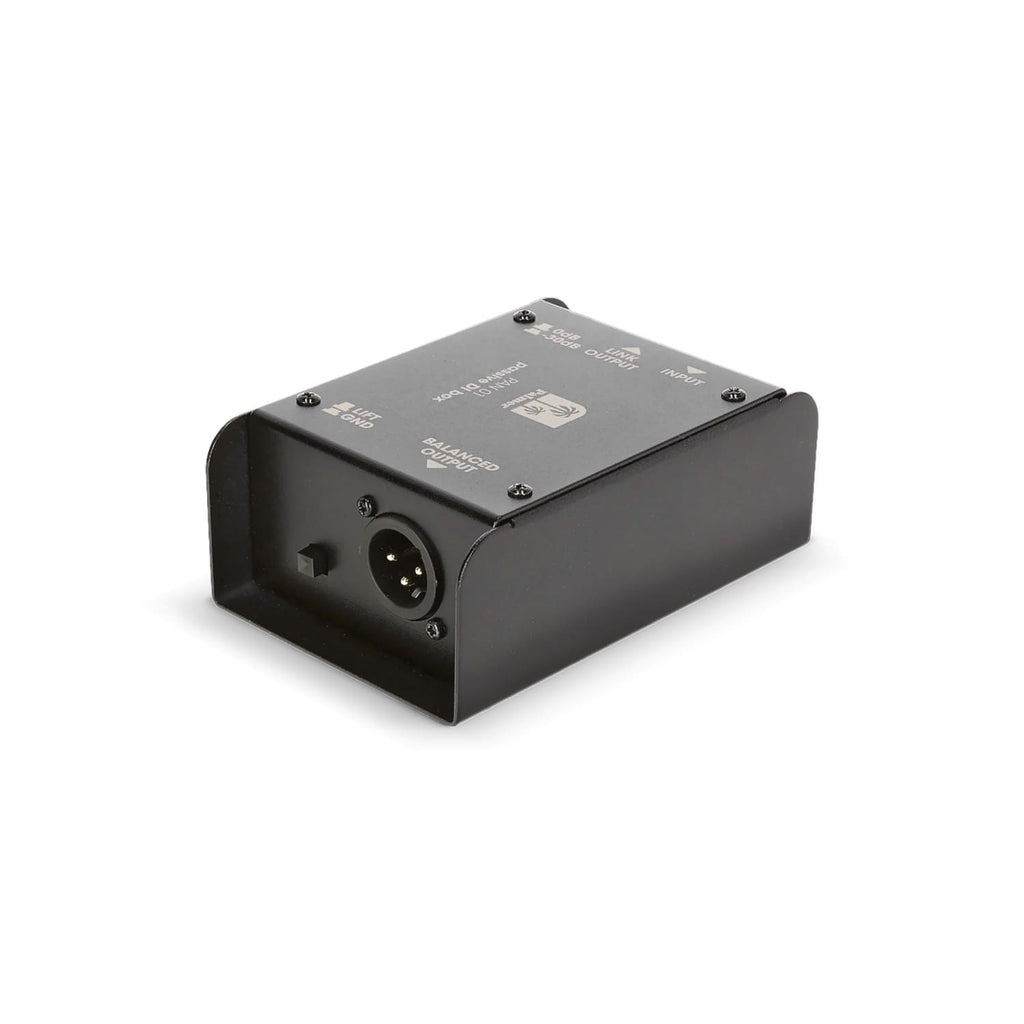

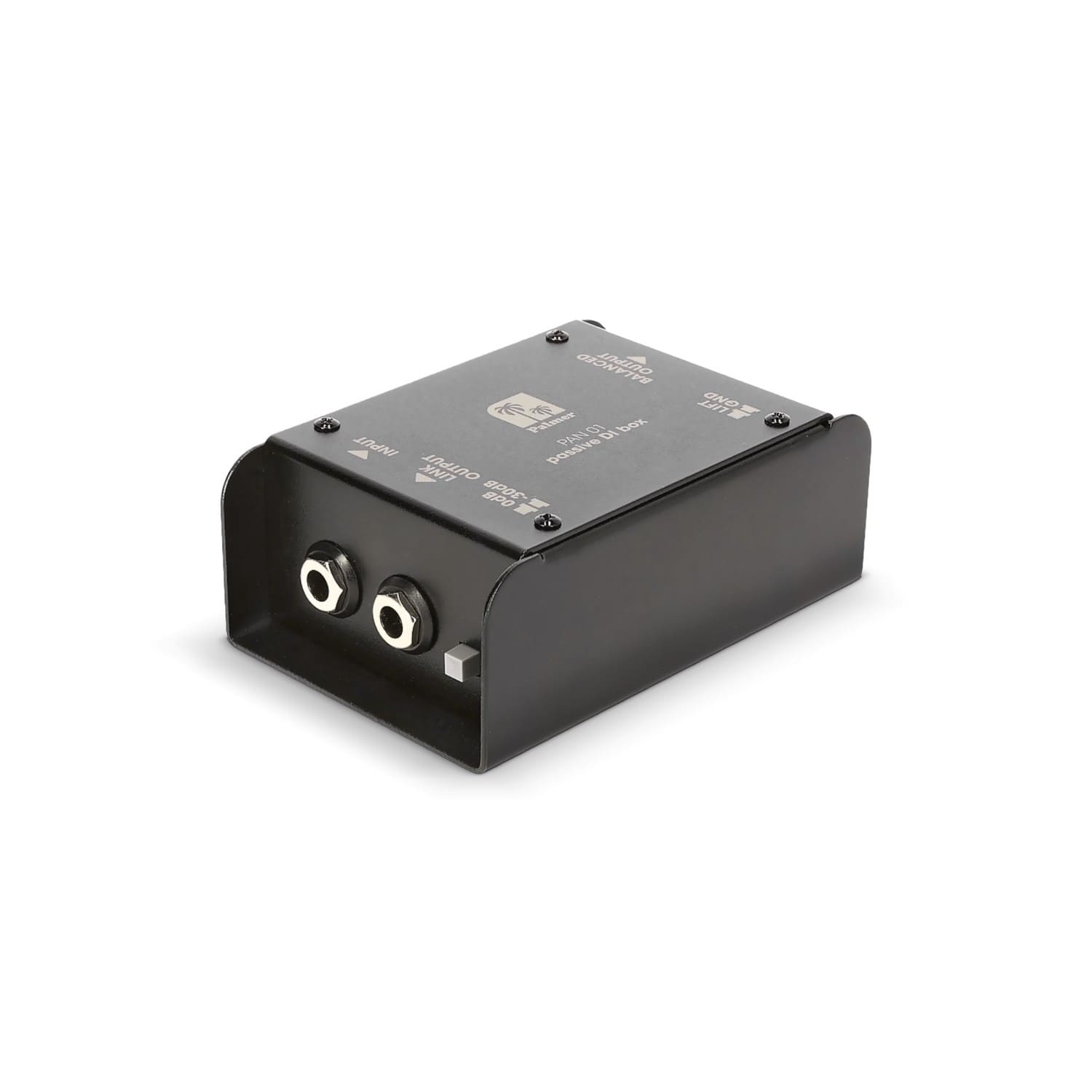

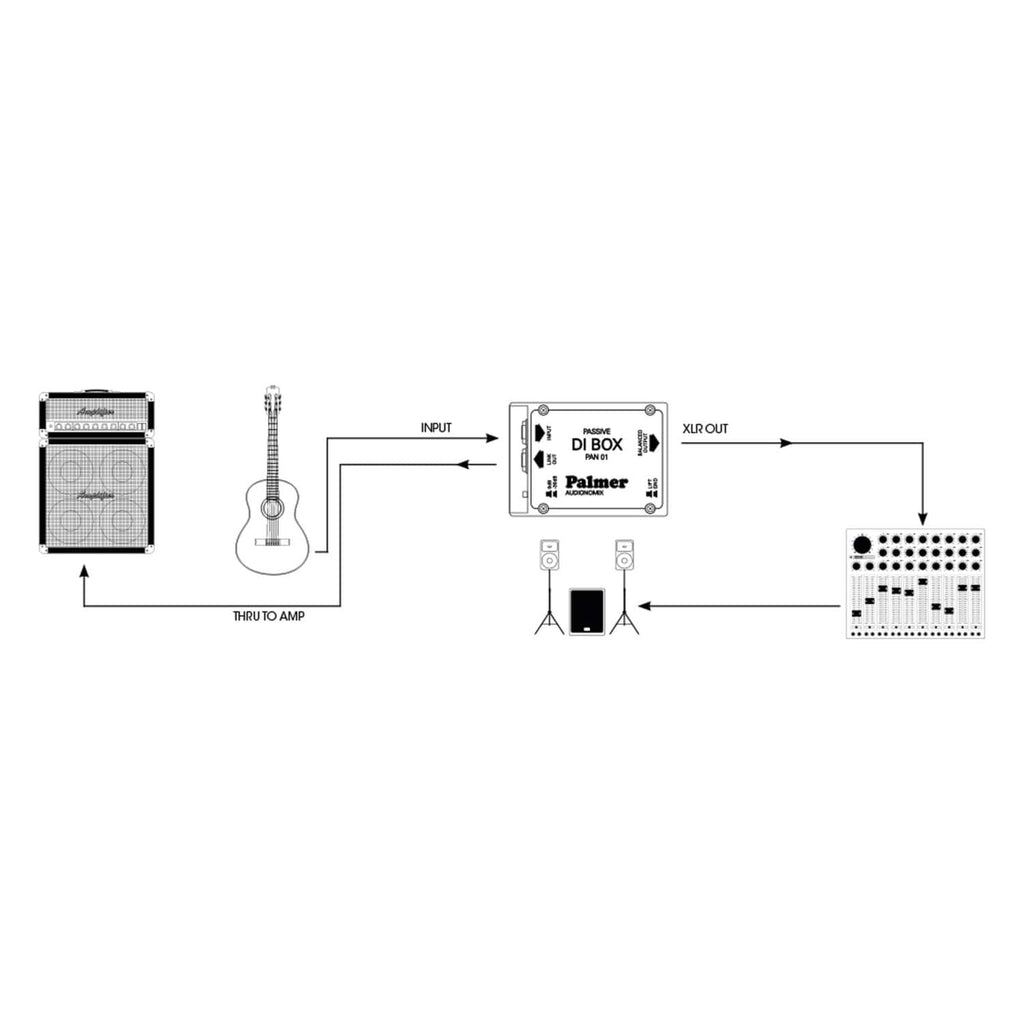

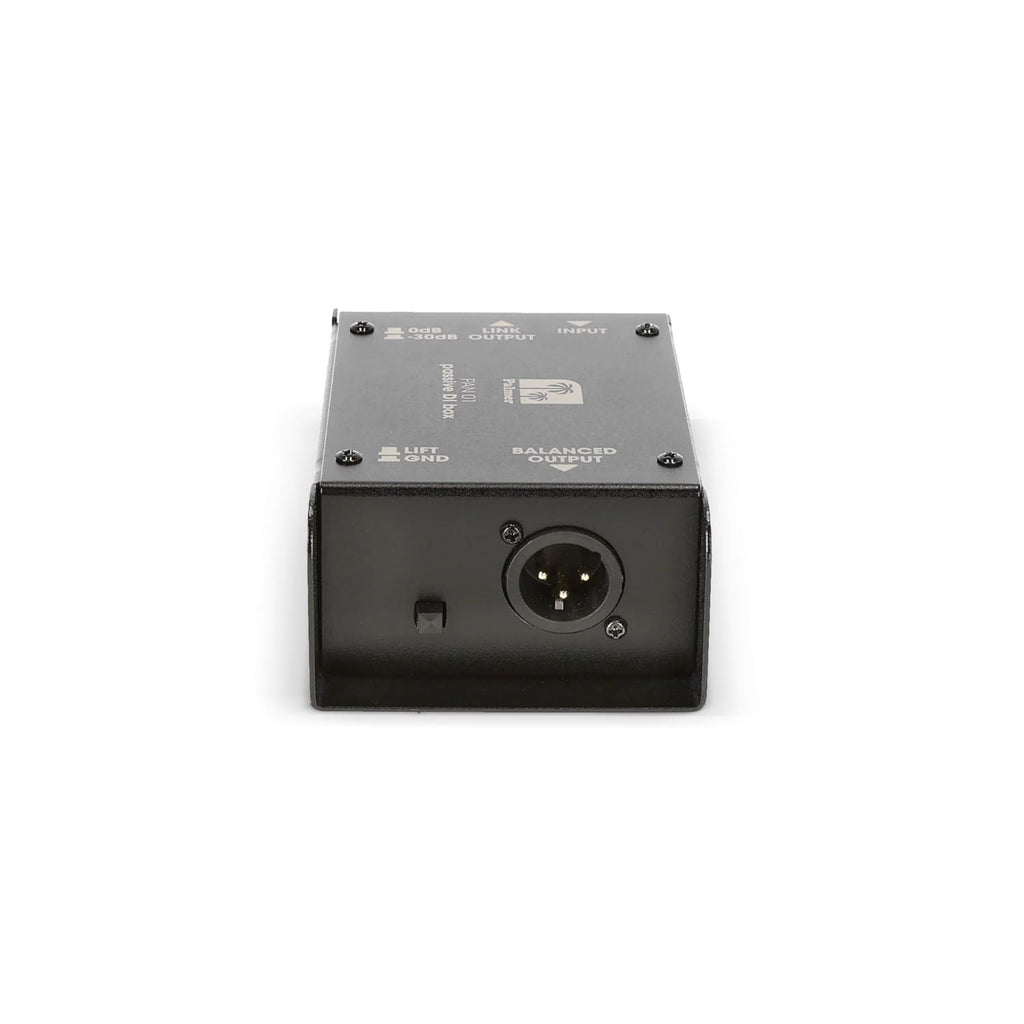

Passive DI box. Jack input with parallel "THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.
- 6.3mm Large Jack input
- Parallel "THRU" output (6.3mm Large Jack)
- Transformer balanced XLR output
- Attenuable input sensitivity
- Can handle both line level and speaker level signals
| Product type: | DI boxes |
| Type: | passive |
| Channels: | 1 |
| Inputs: | 1 |
| Input connectors: | 6.3 mm jack |
| Max. input level: | + 54 dBu |
| Input impedance: | (@ 60 Hz) 60k Ohm(s) |
| Input pad: | 0 / -30 dB |
| Number of outputs: | 1 |
| THRU outputs/channel: | 1 |
| Output connectors: | 6.3 mm jack, XLR |
| Max. output level: | + 4 dBu |
| Output impedance: | 600 Ohm(s) |
| Frequency response: | 20 - 20000 |
| Transformer balanced: | Yes |
| Ratio: | 10 : 1 |
| Controls: | attenuator, ground lift |
| Cabinet material: | sheet steel |
| Cabinet surface: | Powder coated |
| Width: | 110 mm |
| Depth: | 73 mm |
| Height: | 42 mm |
| Weight: | 0.34 kg |
