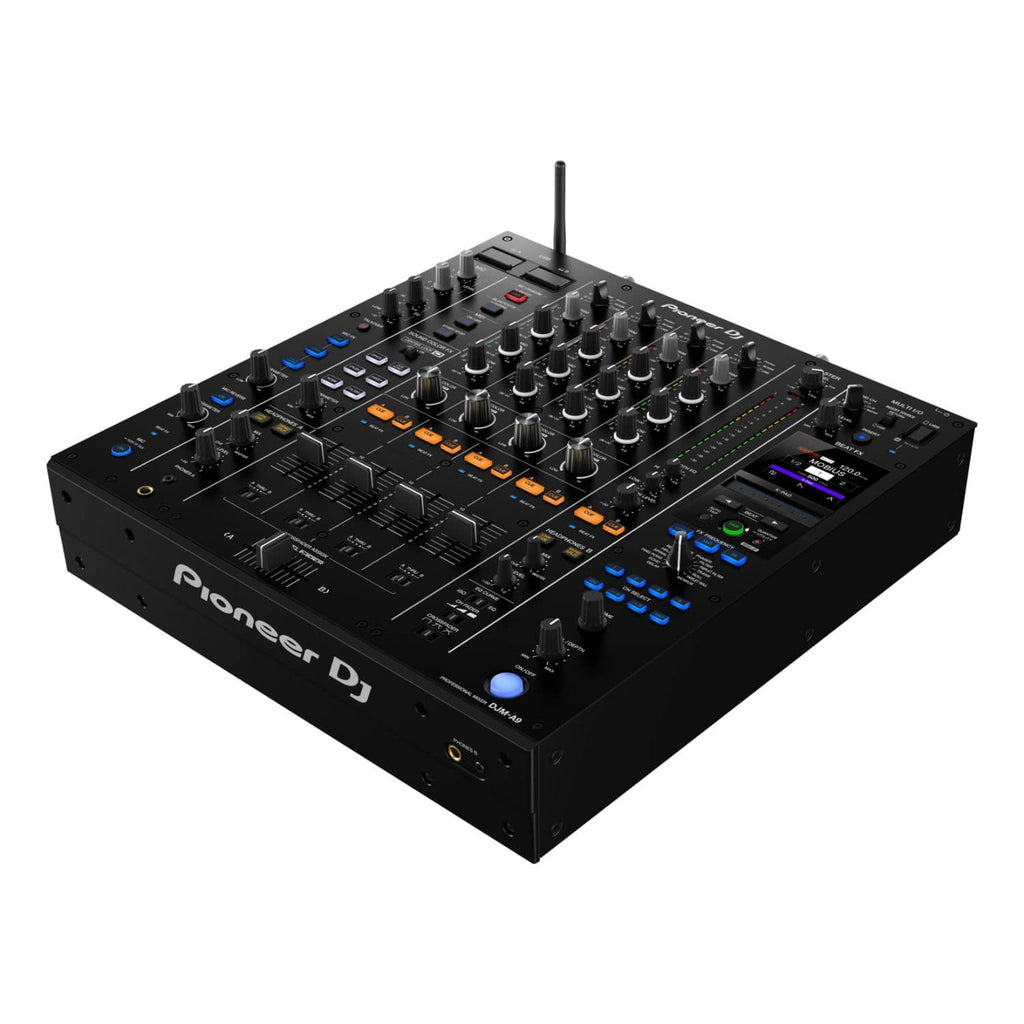

Pioneer DJ DJM-A9
The Pioneer DJM-A9 is a top-of-the-line 4-channel DJ mixer and the new club standard for DJs seeking stunningly clear sound quality. With advanced components such as ESS Technology 32-bit high-quality A/D and D/A converters, this Pioneer DJ mixer is the next-generation club sound.
With expanded connectivity including dual USB Type-B and USB Type-C ports and a Bluetooth input, the Pioneer DJ DJM-A9 allows you to connect two different PC/Mac systems and route audio to any channel.
The enhanced mic section of this new club standard DJ mixer features a phantom-powered input and three new microphone effects with a dedicated reverb effect, enabling DJs to tune the sound of their voice as they wish, without the need for additional hardware.
Beat FX have a new colour display to help DJs control the 14 Beat FX, which include three new ones: Mobius, Triplet Filter, and Triplet Roll. Sound colour FX now have the world's first centre lock feature, making this 4-channel Pioneer DJ mixer an excellent choice for any DJ looking for a feature-rich and versatile mixing solution.
Frequently bought together:
STUNNINGLY CLEAR SOUND QUALITY
The next-generation club sound comes from extensive development and fine-tuning of existing technology, plus brand-new components including ESS Technology 32-bit high-quality A/D and D/A converters in the channel section and outputs respectively.

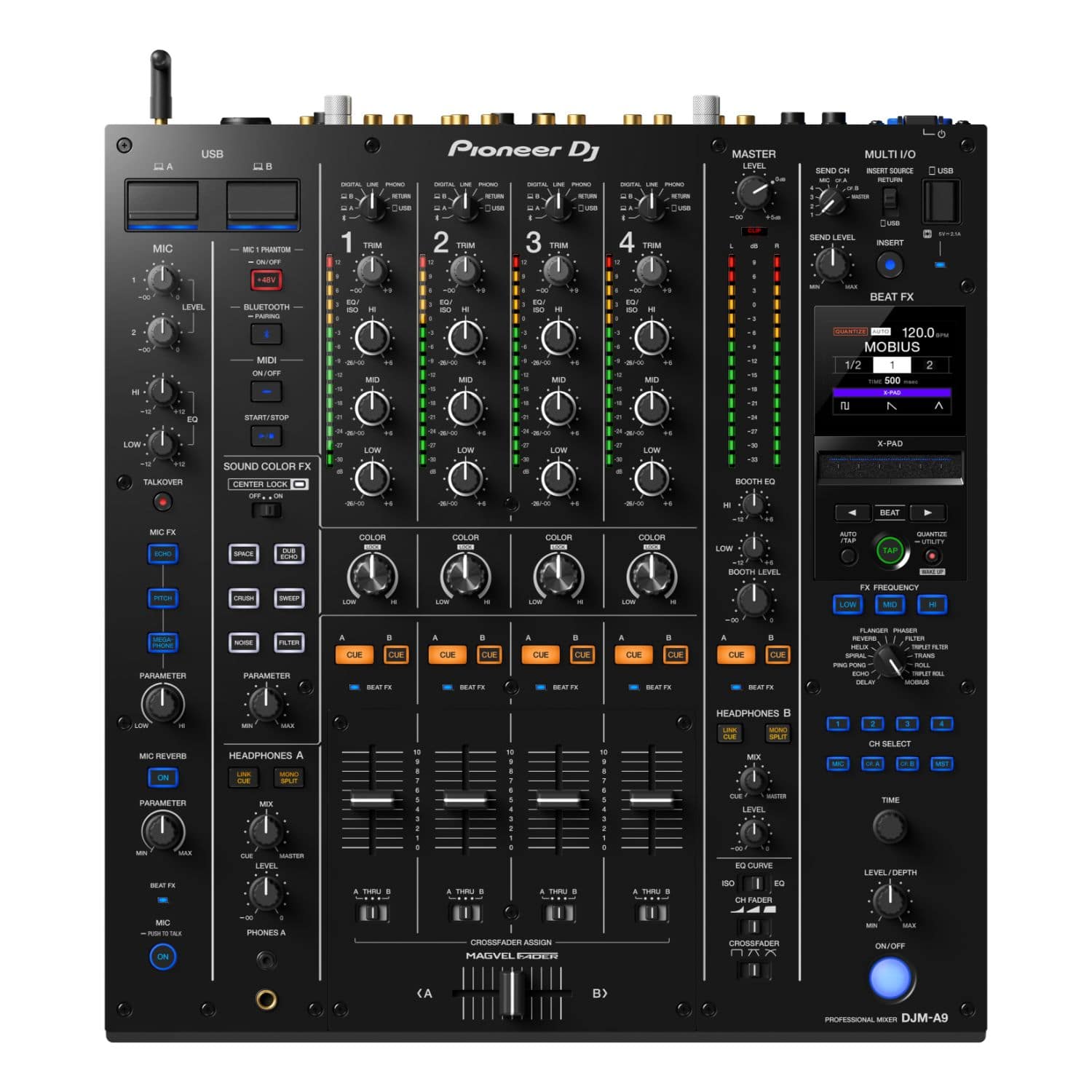

The Pioneer DJ DJM-A9 features increased spacing around the EQ knobs, bright LEDs in the channel section, optimised frequency response on the isolators, slicker channel faders than the DJM-900NXS2, plus the third-generation MAGVEL FADER crossfader.
SOUND COLOUR FX WITH WORLD’S FIRST CENTRE LOCK
Turn on the brand-new Centre Lock feature and, when you’re using the popular Sound Color FX, each knob will stop turning when you reach the centre position so you can’t go too far and accidentally switch from the hi/low to the opposite parameter.
NEWLY ADVANCED BEAT FX
A new colour display helps you to quickly and accurately understand the status of the selected Beat FX, and it features lighting that corresponds with the X-Pad’s horizontal arrangement, enabling more intuitive control with a simple finger slide. There are 14 Beat FX to play with including 3 new ones: Mobius, Triplet Filter, and Triplet Roll.
ENHANCED MIC SECTION
The phantom-powered input means you can connect a high-quality condenser mic directly to the Pioneer DJ DJM-A9, and there are 3 new microphone effects with a dedicated reverb effect so you can change the sound of your voice and hype up the crowd.
EXPANDED CONNECTIVITY AND DUAL INDEPENDENT HEADPHONE OUTPUTS
Connect 2 different PC/Mac systems at the same time thanks to the dual USB Type-B and USB Type-C ports (there are 2 of each) and route wireless audio to any channel via the Bluetooth* input. The Multi I/O section has an independent channel selector, giving the Pioneer DJ DJM-A9 true send capabilities. There are dual headphone outputs too, each with their own cue buttons, volume knobs, and mix balance knobs, so you can monitor tracks independently from another DJ.
* Bluetooth transmission distances are a guideline. Transmission distances may change depending on the surrounding environment.
- Stunningly clear sound quality
- Evolved playability
- Sound Color FX with world’s first Center Lock
- Newly advanced Beat FX
- Expanded connectivity
- Enhanced mic section
- Dual independent headphone outputs and booth EQ
- Support for the Stagehand app and built-in Sound Check function
- Support for rekordbox and Serato DJ Pro
- DJM-REC app support for reliable recording
- Video and lighting app support

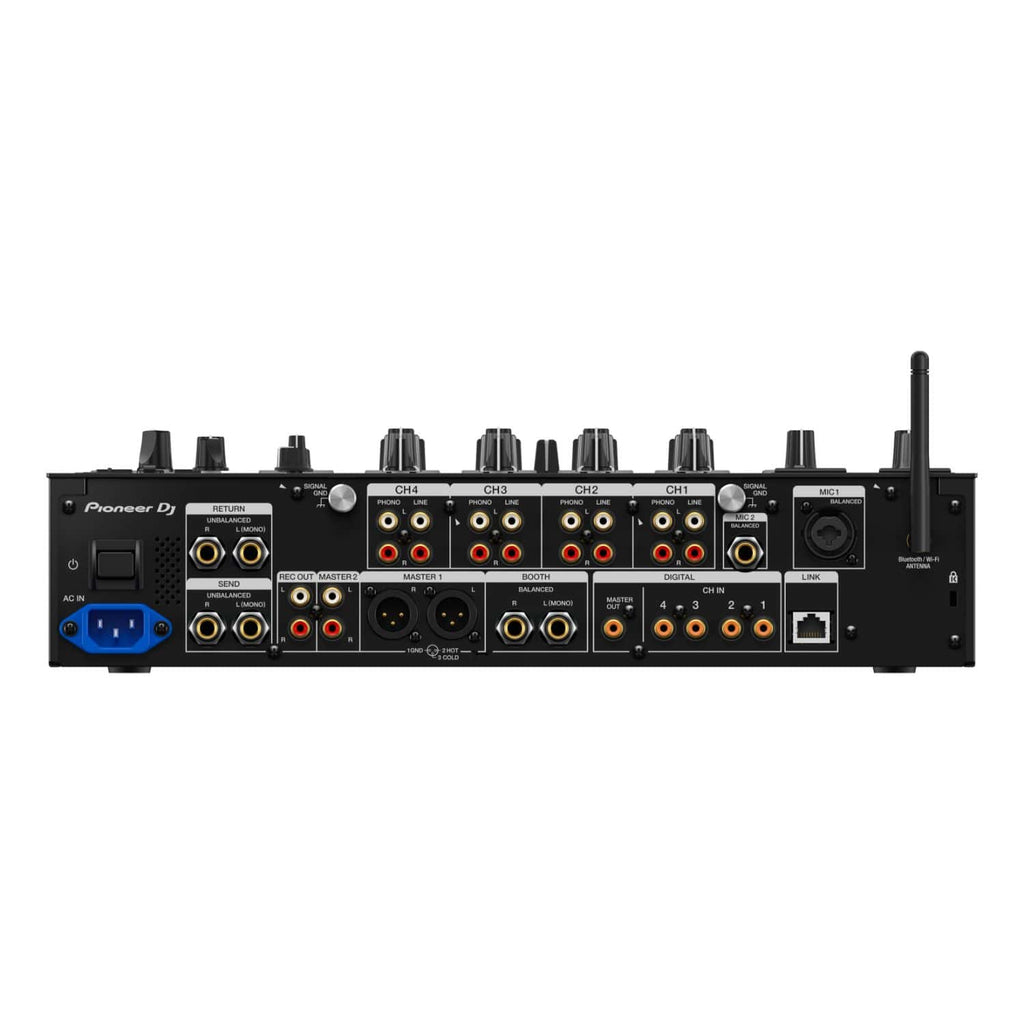

DIGITAL x 4 (coaxial)
LINE x 4 (RCA)
PHONO x 4 (RCA)
MIC x 2 (XLR & 1/4" TRS Jack x 1, 1/4" TRS Jack x 1)
MASTER x 2 (XLR x 1, RCA x 1)
BOOTH x 1 (1/4" TRS jack)
REC x 1 (RCA)
DIGITAL MASTER x 1 (coaxial)
PHONES x 4 (1/4" stereo jack x 2, 3.5-mm stereo mini jack x 2)
USB Type-A x 1
USB Type-B / USB Type-C x 2
SEND (1/4" TS jack) x 1
RETURN (1/4" TS jack) x 1
LAN terminal (100BASE-TX) x 1
|Frequency Response:||20 Hz – 40 kHz (LINE)|
114 dB (USB, Digital IN)
88 dB (PHONO)
105 dB (LINE)
79 dB (MIC 1, MIC 2)
|Total Harmonic Distortion:||0.005 % (LINE-MASTER1)|
|Power Consumption:||46 W|
|Maximum Dimensions (W × D × H):||
407.4 × 458.3 × 107.9 mm (with the wireless antenna 140.7 mm)
16.4" x 18.4" x 4.25" (with the wireless antenna 5.54”)
|Weight:||10.2 kg / 22.5 lb|
