PreSonus AudioBox USB 96 Studio (25th Anniversary Edition)
PreSonus AudioBox USB 96 Studio (25th Anniversary Edition)

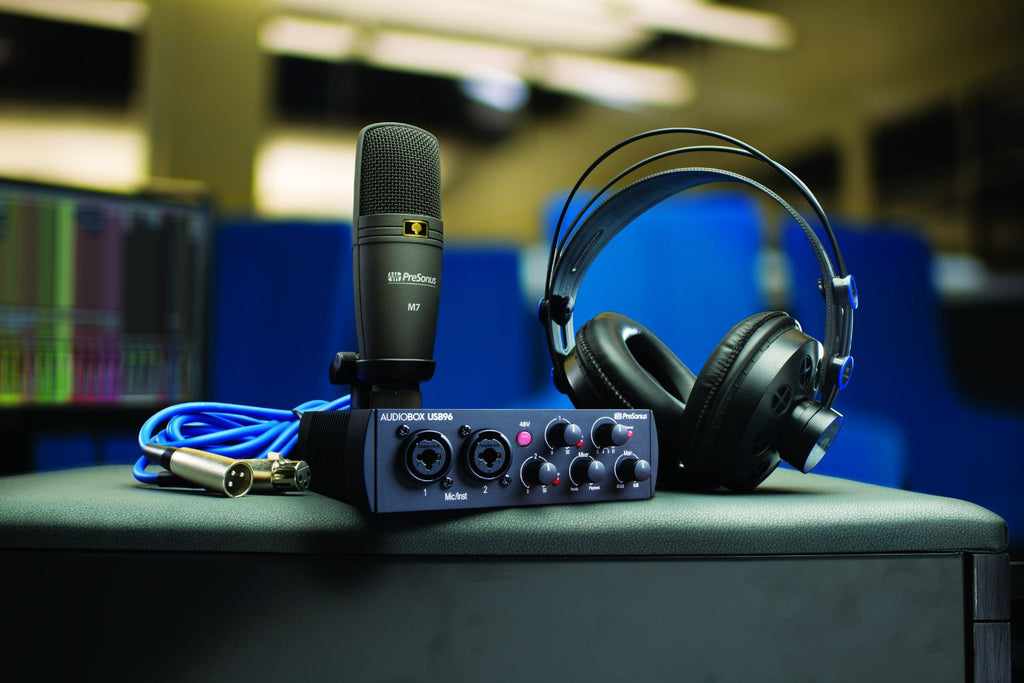

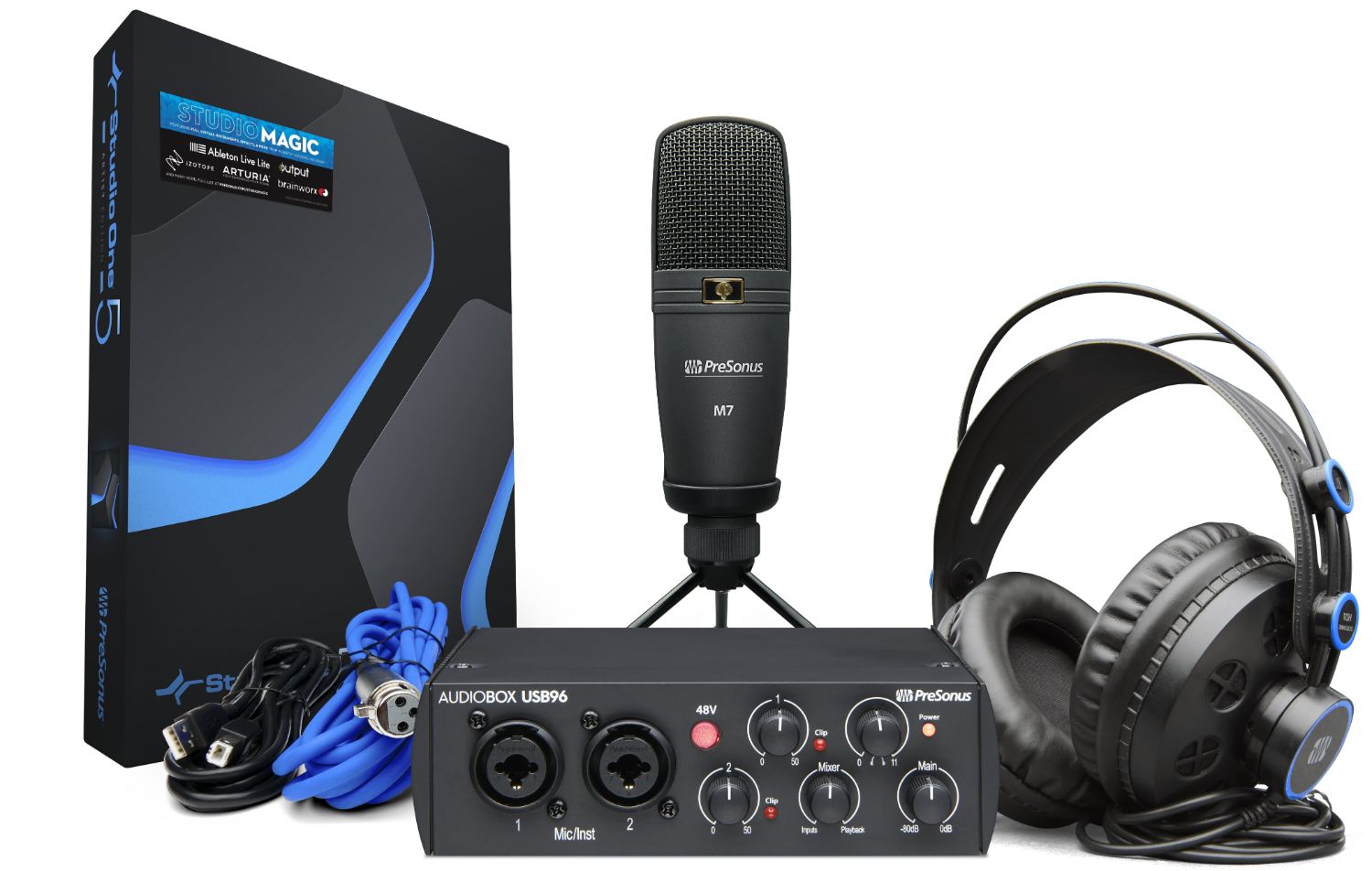

Start recording at up to 96 kHz today with this complete, all-PreSonus package! Record with the ultra-mobile PreSonus AudioBox USB 96 bus-powered, 2-channel USB 2.0 audio/MIDI interface and easy-to-use Studio One Artist DAW software. Capture sound with the M7 large-diaphragm condenser mic and monitor with high-definition HD7 headphones.
Frequently bought together:
Simple, reliable, and portable

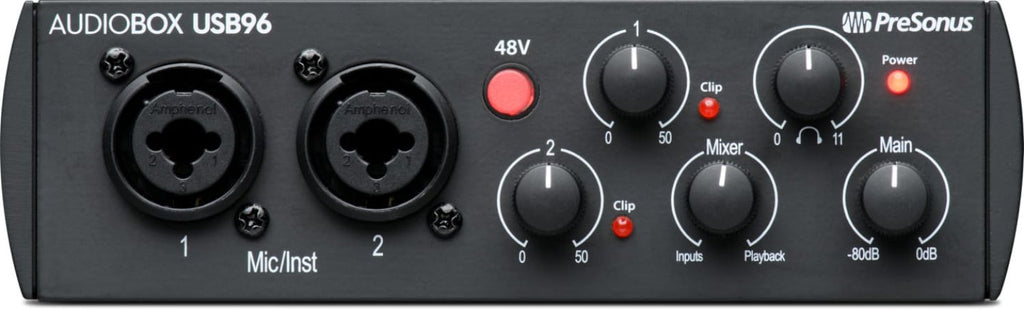

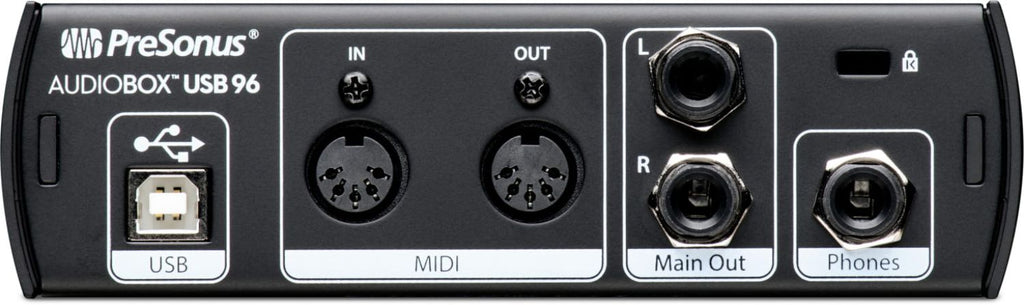

The AudioBox USB 96 is the heart of the AudioBox 96 Studio. This simple, handy little audio/MIDI interface has just the right features for basic recording needs, including two combo mic/instrument inputs and zero-latency monitoring, so you can simply plug in and start recording right away. Bus-powered, built to travel, compatible with most recording software for Mac and Windows, and equipped with high-performance microphone preamplifiers and professional-quality, 24-bit, 96 kHz converters, the AudioBox USB 96 makes high-definition recording easy.
Make recording a breeze
No other entry-level recording and production software is this easy to learn and use, yet is capable of creating studio-quality output. Studio One® Artist lets you work quickly and stay focused on your inspiration, offers unlimited tracks and plug-ins, and delivers features not normally found in entry-level DAWs. Access powerful editing tools without wading through menus. Load and save audio clips, MIDI files, and effects by drag-and-drop. Studio One makes it easy!
Capture every nuance with the M7 condenser microphone.
Get your mic collection off to a good start with the M7 large-diaphragm condenser microphone. Condenser mics are the overwhelming choice of recording studio professionals, enabling you to capture musical details, harmonics, and subtle nuances that would get lost with dynamic mics. Large-diaphragm condenser microphones, like the M7, tend to “warm up” a sound, making them the go-to microphone for recording vocals and a wide range of instruments.
Hear every detail with HD7 professional headphones.
PreSonus’ high-definition HD7 headphones take advantage of a patented, semi-open sound chamber to deliver exceptionally deep low frequencies with a balanced and yet powerful bass punch. Accurate midrange and extended treble response let you pick out the fine details of a mix or track. The lightweight, ergonomic design adjusts to any head size, offering a comfortable listening experience during long recording sessions.
A classic that deserves celebration.
The AudioBox USB96 has been responsible for the great sound on countless albums, podcasts, live streams, and Zoom calls and here at PreSonus, we wanted to honour that with this special 25th Anniversary Edition featuring a sleek, black enclosure!
Make your own magic.
PreSonus wanted to make sure that their audio interfaces come with everything you need to craft your own mesmerising spells in the studio. That’s why they include Studio One Artist with every audio interface product they make. But in PreSonus' home of Louisiana, they have a word: lagniappe. It means "a little something extra," and it’s in that spirit that PreSonus also include the Studio Magic Suite of software with their audio interface products.
The 2020 Studio Magic is a major step up from the 2019 edition, and includes Ableton Live Lite, tutorials from Melodics, 6 virtual instruments, and 9 effects plug-ins in VST, AU, and AAX formats... all unlocked for use inside Studio One Artist with a retail value of over $1000 (US).
- PreSonus AudioBox USB 96
- Bus-powered USB audio and MIDI interface
- Perfect match with Studio One Artist software for Mac® and Windows®
- 24-bit resolution, 44.1, 48, 88.1, and 96 kHz sampling rate
- 2 combo mic/instrument inputs with Class A mic preamplifiers
- 48V phantom power (for included M7 microphone or other condenser microphones)
- Zero-latency monitoring via internal analog mixer
- Headphone jack with level control (for included HD7 headphones or other headphones)
- 1/3U rack-mountable
- Computer-to-interface connection cable included
- Studio One Artist software
- Elegant single-window work environment
- Powerful drag-and-drop functionality
- Unlimited audio tracks, MIDI tracks, virtual instruments, buses, and FX channels
- Content browser with convenient sort options and preview player
- Most intuitive MIDI-mapping system available
- Real-time audio time-stretching and resampling
- Multitrack comping and MIDI editing
- Transient detection and editing and groove extraction
- Automatic delay compensation
- Advanced automation
- Integrates tightly with Celemony Melodyne
- Instantly configures to PreSonus interfaces
- Compatible with ASIO-, Windows Audio-, and Core Audio-compliant interfaces
- 26 Native Effects 32-bit effects and virtual instrument plug-ins
- 10+ GB of third-party software, loops, and instruments
- Mac- and Windows-compatible
- PreSonus M7 Microphone
- Large-diaphragm design
- Captures far more detail than a dynamic mic
- Mic stand adaptor
- Phantom-powered via AudioBox USB
- 9' / 3 m cable included
- Cloth carry bag included
- PreSonus HD7 Headphones
- High neodymium resolution drivers
- Precision-tuned acoustic chamber
- Extended bass response
- Built tough to withstand abuse
- Auto-fit head pads
- Comfortable and long-lasting ear pads
- 98" / 2.5m single-side cable
- Optimised pressure
- Lightweight
| Below are the minimum computer-system requirements for Studio One: | |
| Windows: |
Windows 7 x64 SP1 + platform update, Windows 8.1 x64, Windows 10 x64 Intel Core Duo processor (Intel Core i3 or better recommended) 4 GB RAM (8 GB or more recommended) |
| Mac: |
macOS 10.11 or higher (64-bit only) Intel Core Duo processor (Intel Core i3 or better recommended) 2 GB RAM (4 GB or more recommended) |
| Windows and Mac Systems: |
USB 2.0 Port Internet connection for registration and download of included software Internal or external 7200 RPM storage drive highly recommended Monitor with at least 1280x800 resolution |
| Apple iPad: |
iPad Pro, iPad Air, iPad mini with Retina display, iPad (4th generation) iOS 10 or later |
| Note: The minimum system requirements may differ for DAWs other than Studio One. | |
| Please check the requirements for your DAW of choice with its manufacturer. | |
| TECHNICAL SPECIFICATIONS | |
| PreSonus AudioBox USB 96 Specifications | |
| Microphone Preamp | |
| Type: | XLR Female Balanced |
| Frequency Response: |
20 Hz to 20 kHz (±3.0 dB) |
| Input Impedance (Balanced): |
1200 ohms (Balanced) |
| THD+N: |
< 0.008% (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) |
| S/N Ratio: |
> 95 dB (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) |
| Common Mode Rejection Ratio: |
> 45 dB (1 kHz, 55 dB Gain) |
| Gain Control Range: |
0 dB to 35 dB (± 1 dB) |
| Max Input Level: |
-3 dBu (Unity Gain, 1 kHz @ 0.5% THD+N) |
| Phantom Power: |
+48 VDC (±2 VDC) |
| Instrument Input | |
| Type: | 1/4" |
| TRS Female Unbalanced Input Impedance: | 0.5 M ohms |
| Line Outputs | |
| Type: | 1/4" |
| Balanced Output Impedance: | 51 ohms |
| Headphone Output | |
| Type: | 1/4" TRS Active Stereo |
| Maximum Output: | 60 mW/Ch @ 60 ohm Load |
| Frequency Response: |
20 Hz - 30 kHz (±1.0 dB) |
| MIDI I/O | |
| Type: | Dual 5-pin Female DIN |
| Digital Audio | |
| ADC Dynamic Range: |
105 dB (A-wtd, 48 kHz Sample Rate) |
| DAC Dynamic Range: |
105 dB (A-wtd, 48 kHz Sample Rate) |
| Bit Depth: | 24 |
| Reference Level for 0 dBFS: | +4 dBu |
| Internal Sample Frequency Selections (kHz): | 44.1, 48, 88.2, 96 |
| Power: | USB 2.0 Bus-powered |
| Physical | |
| Dimensions: | 1/3U (steel chassis) |
| Height: | 5.5” (139.7 mm) |
| Depth: | 1.75" (44.45 mm) |
| Width: | 5.5” (139.7 mm) |
| Weight: | 1.4 lbs (0.64 kg) |
| PreSonus M7 Microphone Specifications | |
| Type: | Large-diaphragm condenser microphone |
| Element: | Electret |
| Polar Pattern: | Cardioid |
| Frequency Response: | 40 Hz - 18 kHz |
| Sensitivity: | -39 dBV/pa (12.2 mV/pa) |
| Rated Impedance: | 200 ohms |
| Equivalent Input Noise (EIN): | 20 dB |
| Maximum SPL: | 136 dB SPL |
| Phantom Power Required: | +12 to +52 VDC, 3 mA |
| S/N Ratio: | 74 dB |
| Dynamic Range: | 11 dB |
| Current Consumption: | 3.5 mA |
| Physical | |
| Diameter: | 2.13" (54 mm), maximum |
| Length: | 6.69" (170 mm) |
| Weight: | 11.3 oz. (320g) |
| PreSonus HD7 Headphone Specifications | |
| Acoustic Design: | Dynamic, semi-open |
| Driver: | 50 mm, neodymium |
| Frequency Response: | 10 Hz to 30 kHz |
| Sensitivity: | 98 dB SPL (1 mW) |
| Maximum Power: | 300 mW |
| Rated Impedance: | 56 ohms |
| Earpad: | Leather |
| Physical | |
| Weight: | 7.8 oz (222g) without Cable |
| Cable: | 8' 2" (2.5m) straight, single-sided |
| Plug Adapter: | 1/8" to 1/4" (3.5 to 6.3 mm), screw-on, gold-plated, stereo mini-plug |
