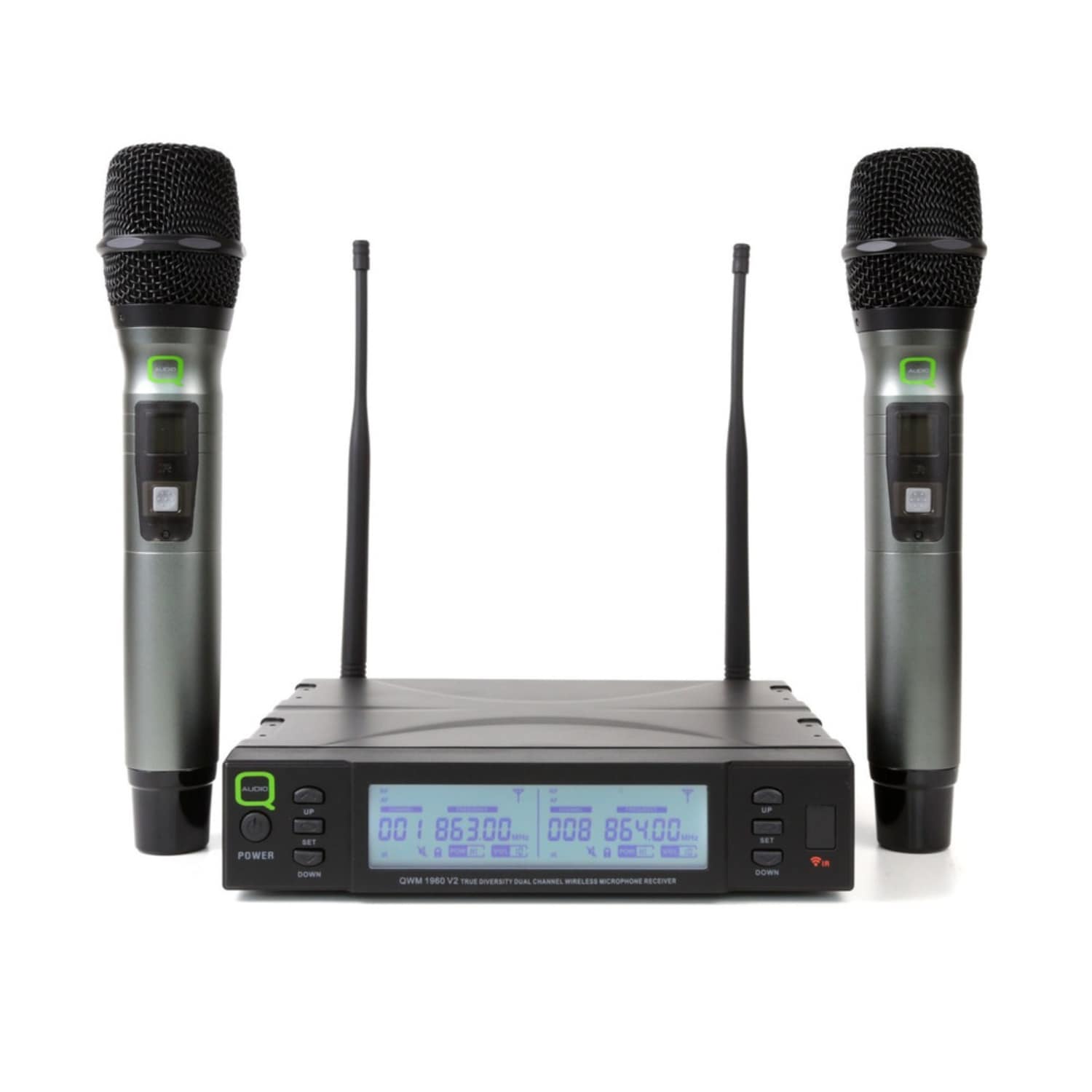

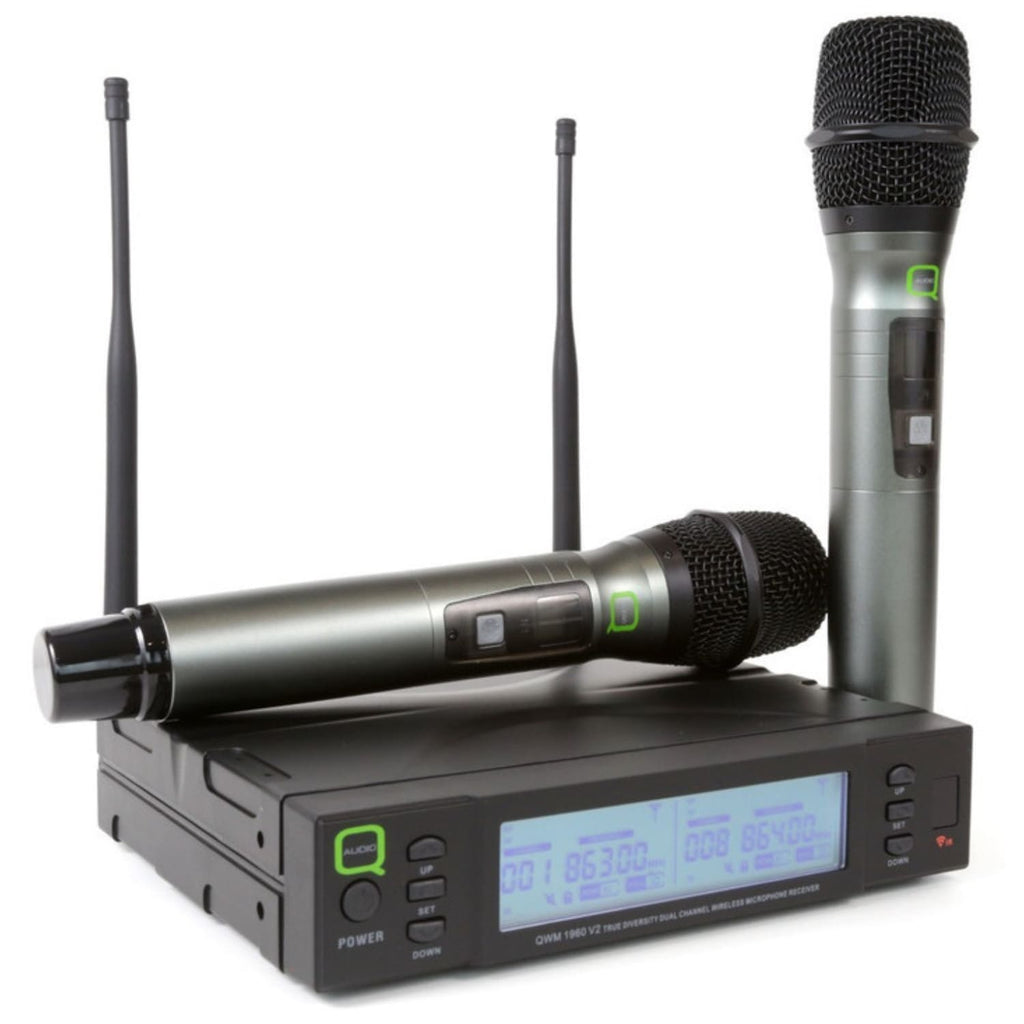

Q-Audio QWM1960 HH V2 Dual Handheld UHF Wireless System (863-865 MHz)
Q-Audio QWM1960 HH V2 Dual Handheld UHF Wireless System (863-865 MHz)
Highlights
- Multi-channel UHF PLL receiver and 2 mic transmitters
- Large backlit display with multiple status indicators
We are here to help!
020 8579 0144
Frequently bought together:
Keep browsing or just give us a call: 020 8579 0144. We are here to help!
UHF Dual Channel True Diversity Handheld Wireless Microphone System
VERY IMPORTANT - if you wish to run 2 receivers and 4 transmitters together and to avoid interference between the two systems, it is recommended you use the following setup:
- Unit 1 - set channel A to frequency 1 and set channel B to frequency 14.
- Unit 2 - set channel A to frequency 5 and set channel B to frequency 15.
Features
- UHF receiver
- Handheld microphone transmitters
- 16 UHF frequencies from 863.0 to 865.0 MHz
- Balanced output sockets (3-pin XLR)
- Unbalanced 6.3mm jack for mixed audio output
- Twin adjustable antenna system
- Multi-channel UHF PLL receiver and 2 mic transmitters
- Large backlit display with multiple status indicators
- ACT infrared pairing of mics to receiver
- 2 x balanced XLR outputs
- 1 x unbalanced 6.35mm jack mixed output
- Includes receiver, 2 x mics, batteries, PSU and audio cable
- High efficiency battery consumption design
- 2 x adjustable/removable high gain antenna
- Two systems can be connected for 19 inch rackmount
- Working distance: 50 meters
- Continuous usage: 5 hours
| Frequency Range: | UHF 863-865 MHz (Channel 70) |
| RECIEVER | |
| Frequency response: | 40Hz-15Hz±3dB |
| Power Consumption: | 5W |
| Audio Output Level: | 400mV |
| Power Supply: | DC 17V/300mA5w |
| Dynamic range: | >90dB |
| Signal To Noise Ratio: | >90dB |
| Total harmonic distortion: | <0.5% |
| HANDHELD TRANSMITTER | |
| Transmitter power: | 10mW |
| Deviation: | +/-25KHz |
| Battery: | 3V (2 x 1.5V AA batteries) |
| Continuous usage: | up to 5 hours |
| Working distance: | up to 50m |
| Dimensions: |
Receiver: 210 x 185 x 45mm (WxDxH) Handheld Transmitter: 55 x 55 x 260mm (WxDxH) |
