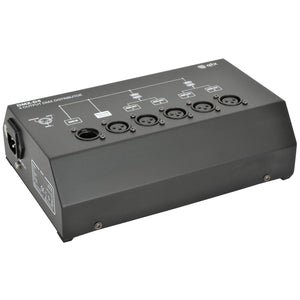

QTX DMX-D4 4-Way DMX Booster / Distributor

QTX DMX-D4 4-Way DMX Booster / Distributor

QTX DMX-D4 4-Way DMX Booster / Distributor
Highlights
  • DMX Loop out or DMX terminated (supplied)
  • 2 x Opto isolated DMX outputs (isolated in pairs, CH1&2, CH3&4)
Click here for Features and Specifications
We are here to help! 020 8579 0144
Regular price £80.00 £0.00 Unit price per
In Stock

In Stock

Free next day delivery

On all orders over £100

Frequently bought together:

Keep browsing or just give us a call: 020 8579 0144. We are here to help!

This 4 way DMX Booster/distributor has one input, loop through and two electrically opto isolated outputs. Both DMX input and DMX output are provided with 3 pin XLR connectors making it universally compatible with most lighting systems. This item is ideally used for splitting the signal over a large area rather than running a chain. The box will isolate individual sub chains, making it quick and easy to protect and fix faults when they occur without the whole system failing.

  • DMX Loop out or DMX terminated (supplied)
  • 2 x Opto isolated DMX outputs (isolated in pairs, CH1&2, CH3&4)
  • Powered by mains to boost signal over a long distance
Power supply: 230Vac, 50Hz (IEC)
DMX inputs: 1
DMX outputs: 4
Dimensions: 248 x 165 x 70mm
Weight: 1.5kg
