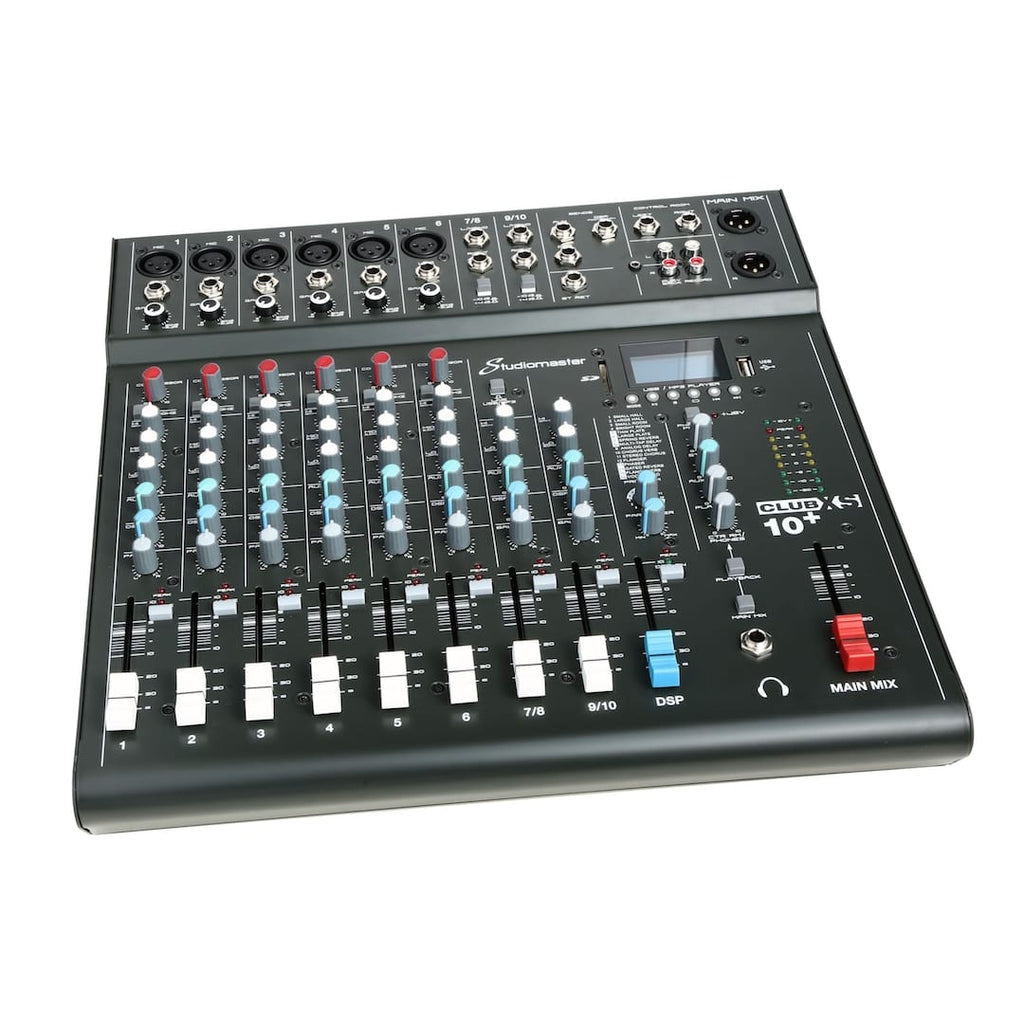

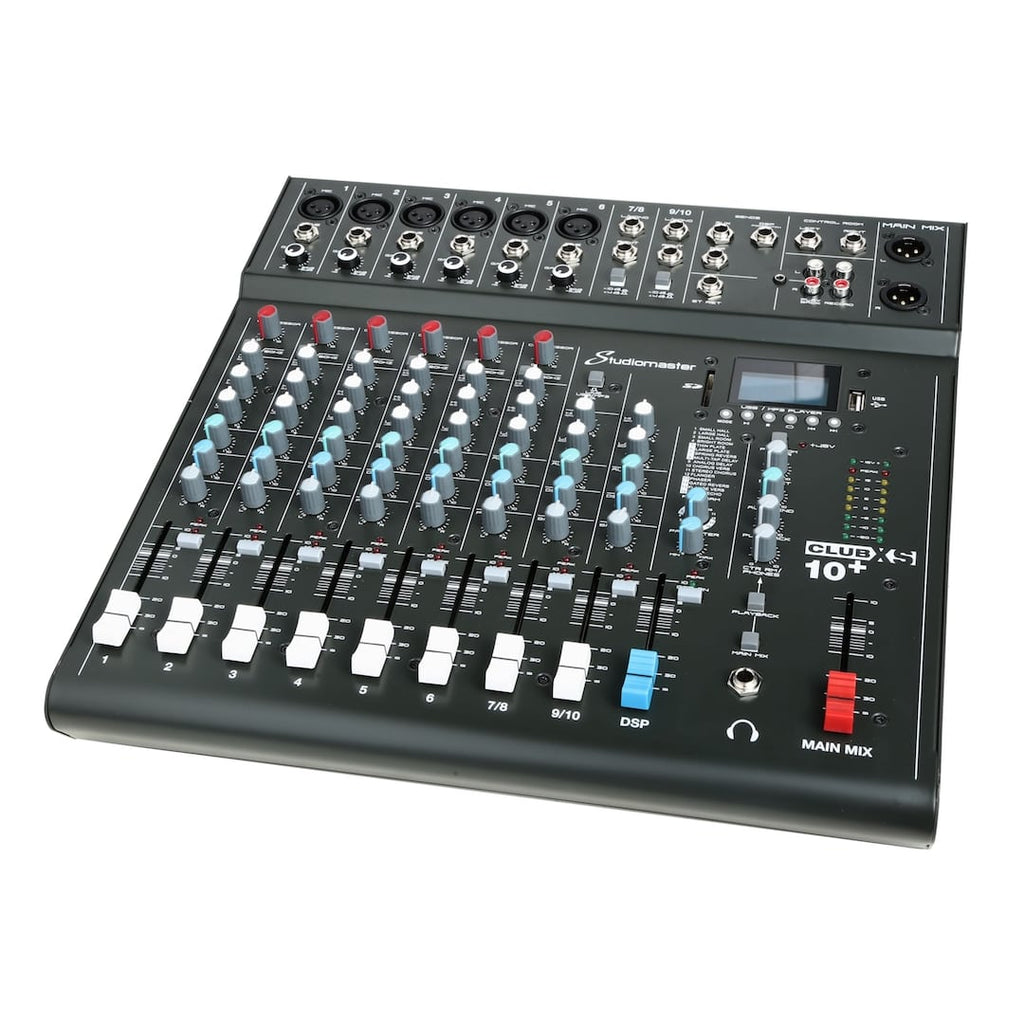

StudioMaster Club XS 10+
The new and improved Club XS+ series from Studiomaster. Compact mixers with built-in FX, bluetooth input, and USB/SD media player and recorder.

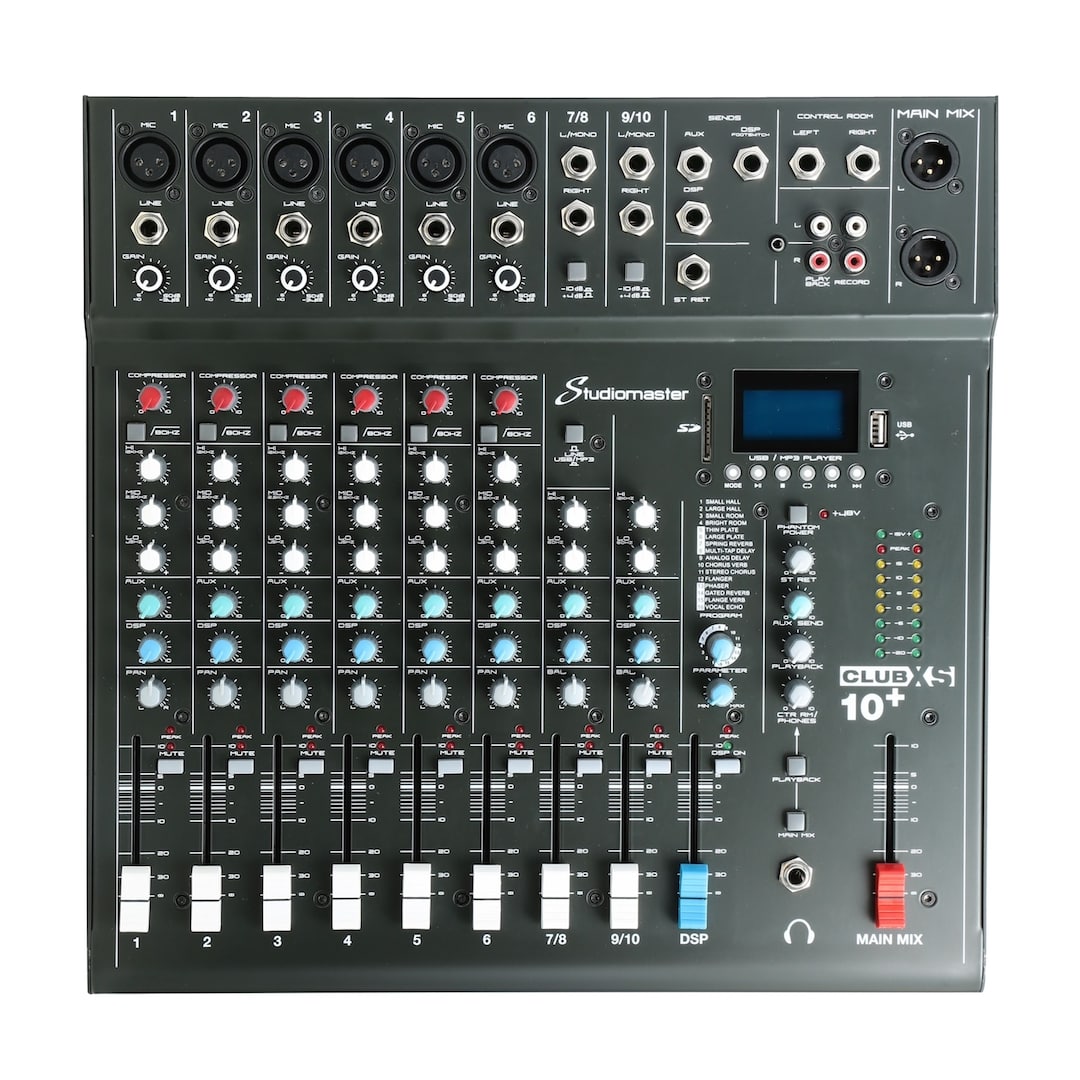

Studiomaster Club XS 10+ features 6x Mic Input and 2x Stereo Line Inputs.
Frequently bought together:
Club XS+ models incorporate all of the great features of the standard Club range, now with the inclusion of a DSP On/Off foot switch socket and an aesthetic overhaul, redesigned control knobs and finished in Studiomaster digital black.
Compact and portable, featuring 3 band EQ, built-in channel compression, DSP effects and a hugely versatile Bluetooth/MP3/USB/SD playback and recording media system.
- 10 inputs
- 6 mic channels
- 2 stereo channels
- 16 DSP effects
- USB/SD media player
- USB/SD recorder
- Footswitch socket
|Mic Gain Range:||6dB to 50dB|
|Line Gain Range:||10dB to 34dB|
|Frequency Response:||10Hz – 20kHz (+1/-3dB)|
|THD Mic Channel:||<0.1%|
|Signal to Noise Ratio:||80dB|
|Output Levels:||Max +26dB (Bal), +20dB (unBal)|
|EQ:||Hi 12kHz, Mid 2.5kHz, Lo 45Hz, Lo cut 80Hz|
|USB/SD:||MP3 Audio playback|
|Record:||To USB drive or SD card (128kbps mono)|
|DSP Effects:||16 DSP effects|
|Dimension W*H*D:||360 x 80 x 365 (mm)|
