After the success of the original Club XS range, the new Club XS+ range builds on that success; adding a DSP on/off socket, redesigned control knobs and bringing sleek new colour scheme with a digital black finish.

See more product details
Regular price £229.00 £0.00 Unit price per
Shipping calculated at checkout.
In Stock

In Stock

Free next day delivery

On all orders over £100

Keep browsing or just give us a call: 020 8579 0144. We are here to help!

After the success of the original Club XS range, the new Club XS+ range builds on that success; adding a DSP on/off socket, redesigned control knobs and bringing sleek new colour scheme with a digital black finish.

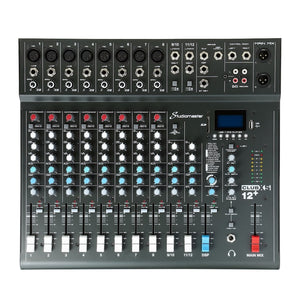

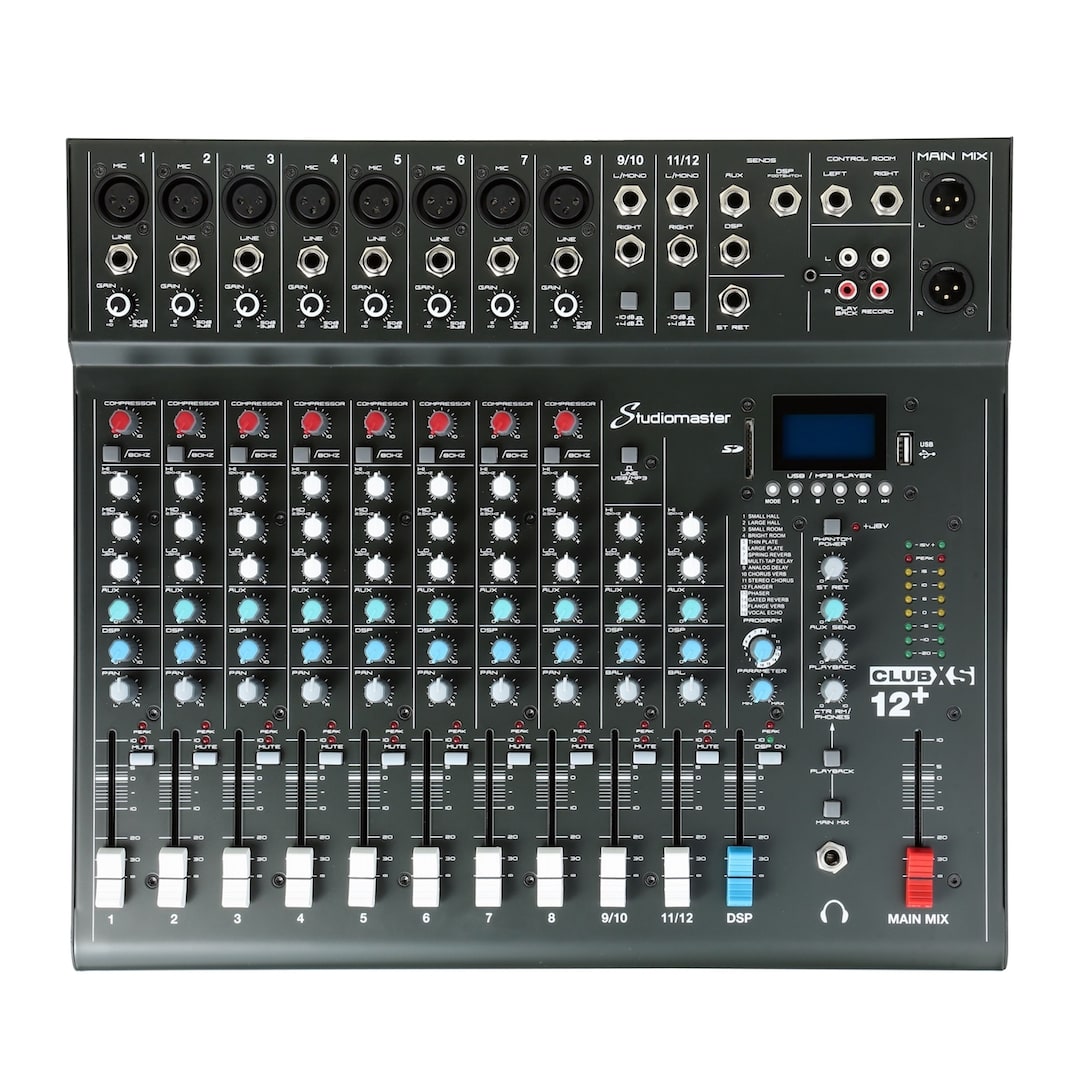

The Studiomaster Club XS 12+ is a compact and affordable mixing desk. Perfect for use in any live or practise situation.

With 8 mic channels and 2 stereo channels, there is plenty of connectivity for various events, from speeches, conferences and theatrical performances to full band setups in smaller venues. Built-in there is also 16 DSP effects, as well as Bluetooth connectivity for playback your smartphone, tablet, or laptop, plus a built-in USB/SD media player.

Each Mic channel has an individual single-knob compressor, plus 3 band EQ for simple fine tuning your performers, with a AUX send for a foldback/monitor mix. Stereo channel have a 2 band EQ as well as an AUX send.

For a compact mixer in this price range, it is great to see there are also balanced XLR connectors for the main outputs, enabling easy connection to your PA.

  • 8 mic channels
  • 2 stereo channels
  • 16 DSP effects
  • Bluetooth playback
  • USB/SD media player
  • Footswitch socket
  • Sleek Black Finish
Inputs: 12
Mic Inputs: 8
Stereo Inputs: 2
Mic Gain Range: 6dB to 50dB
Line Gain Range: 10dB to 34dB
EIN: -100dB
Frequency Response: 10Hz – 20kHz (+1/-3dB)
THD Mic Channel: <0.1%
Signal to Noise Ratio: 80dB
Output Levels: Max +26dB (Bal), +20dB (unBal)
EQ: Hi 12kHz, Mid 2.5kHz, Lo 45Hz, Lo cut 80Hz
USB/SD: MP3 Audio playback
Record: To USB drive or SD card (128kbps mono)
DSP Effects: 16 DSP effects
Power Requirements: 100V – 240V
Dimension: 415 x 80 x 365 (mm) W*H*D
Weight: 5.5kg
