Compact size 2 x 15 band 2/3 octave graphic equaliser

See more product details
Regular price £125.00 £0.00 Unit price per
Shipping calculated at checkout.
In Stock

In Stock

Free next day delivery

On all orders over £100

Keep browsing or just give us a call: 020 8579 0144. We are here to help!

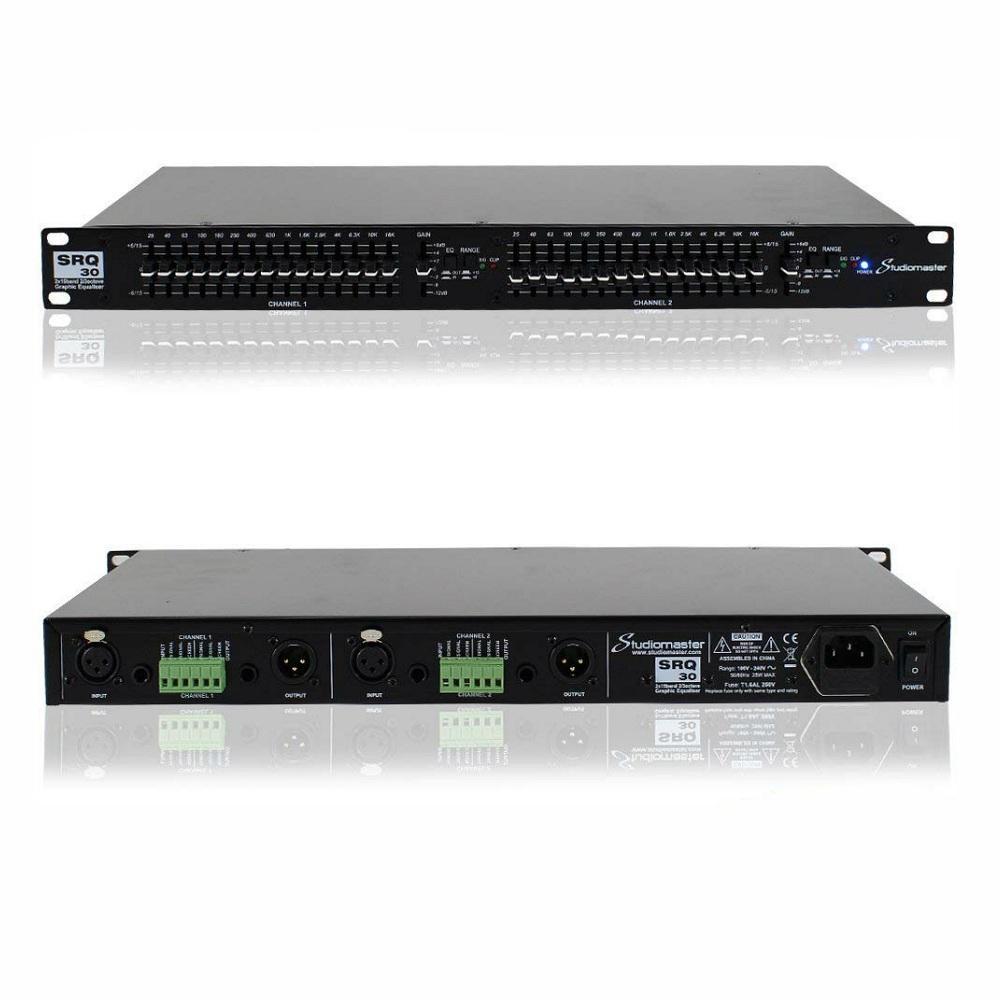

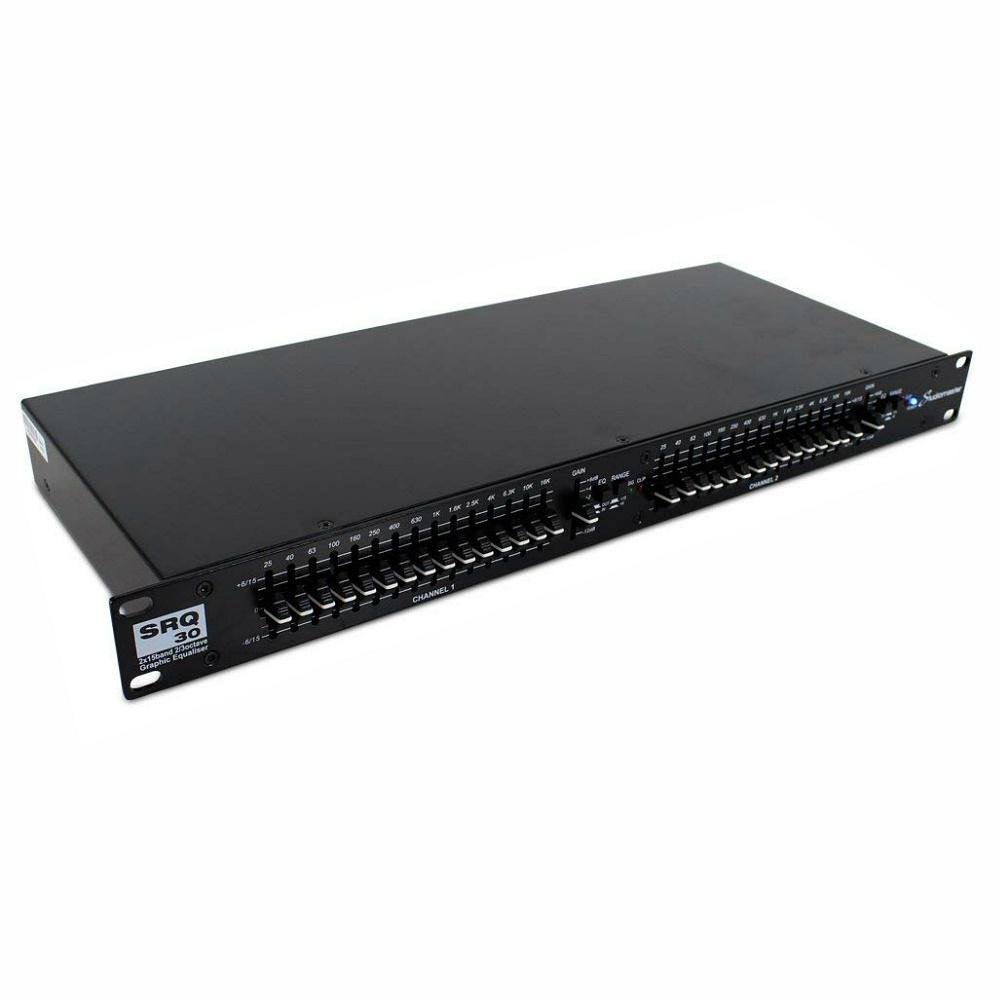

Introducing the Studiomaster SRQ30 – a 19" 1U – Compact size 2 x 15 band 2/3 octave graphic equaliser. The SRQ range provides the quality and features sound engineers demand.

The smallest of the SRQ range is the SRQ30, this one rack space 2 x 15 band graphic equaliser with frequencies spaced at 2/3 octaves. Boasting a number of features, the input trim adjusts the overall signal level with signal & clip LEDs providing a visual indication of signal levels, so users can really manage their audio output to the tee. The cut and boost range is switchable from 6dB to 15dB and a bypass switch gives a quick active/bypass comparison.

  • Compact size 2 x 15 band 2/3 octave graphic equaliser
  • Input trim and signal / clip led indication
  • Switchable cut / boost range for accurate adjustment
  • Bypass switch for quick comparison
  • 19" 1U
Center frequencies: 63Hz-16kHz
Frequency response: 10Hz – 55kHz
Frequency cut/boost: 12dB
Distortion: 0.004%
Signal to noise ratio: 98dB
Gain cut/boost: selectable 15dB / 6dB
Input trim range: infinity to +6dB
Maximum input level: +23dBu balnced, +20dBu unbalanced
Maximum output level: +23dBu balnced, +20dBu unbalanced
Input impedance: 20k ohms balanced, 10k ohms unbalanced
Output impedance: <150 ohms
Dimension W*D*H: 483 x 186 x 44 mm
Weight: 2.5kg
