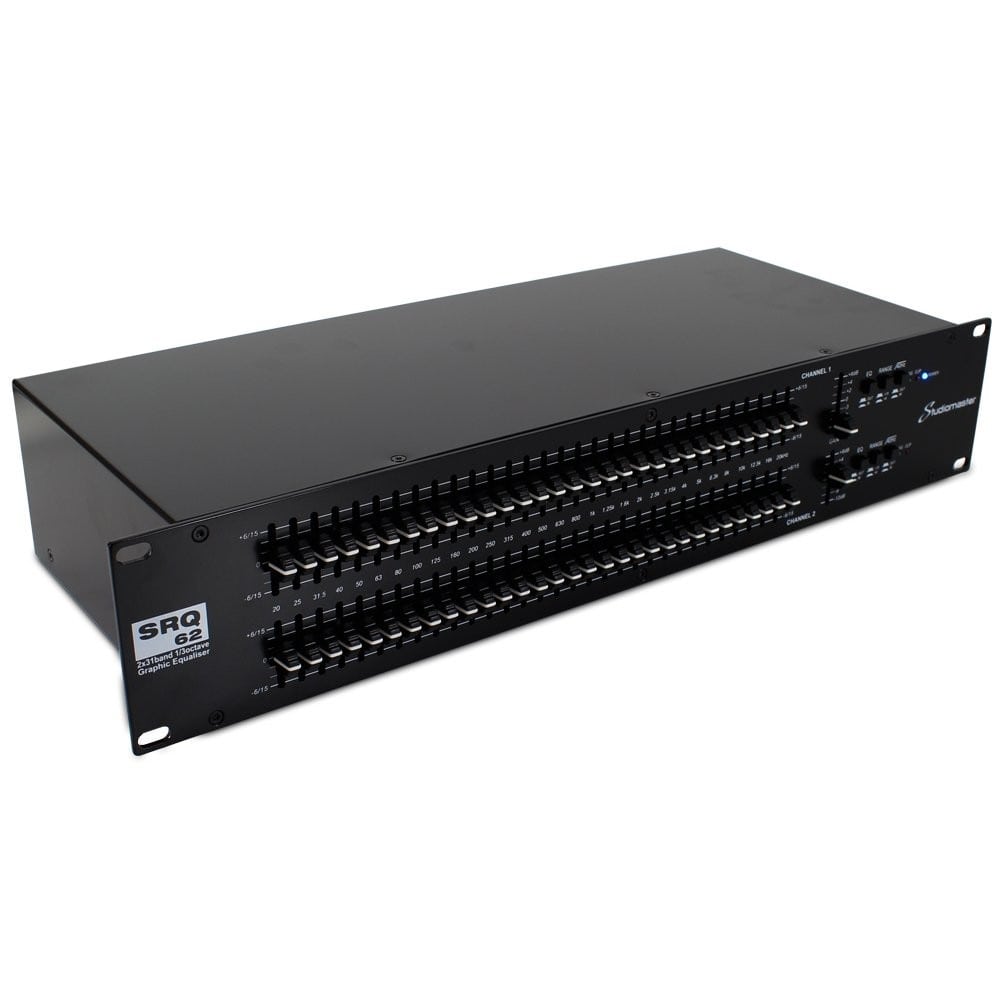

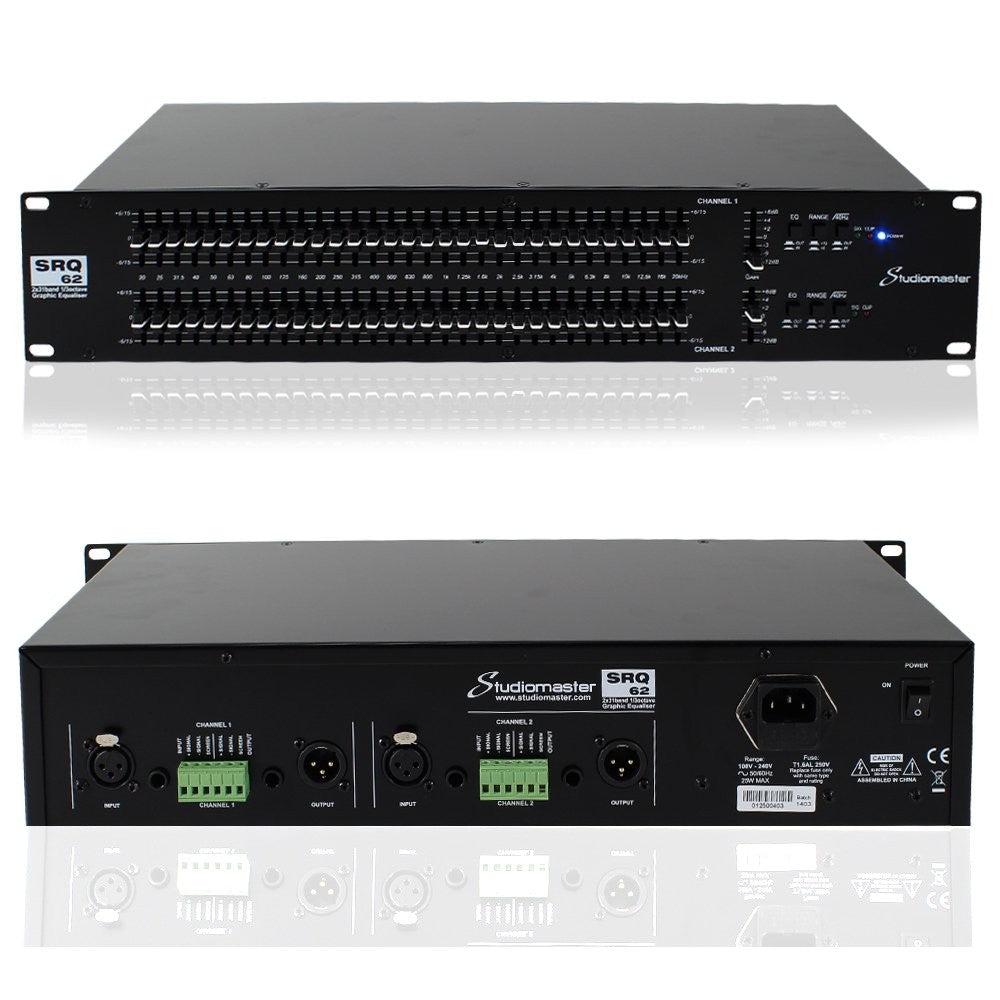

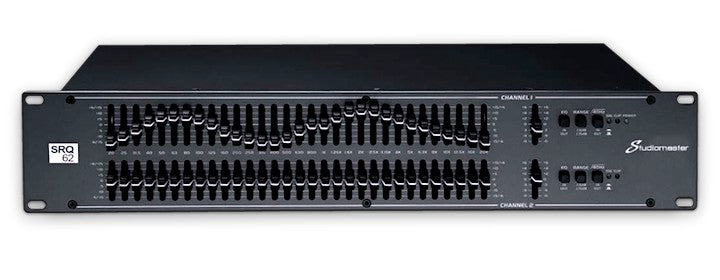

StudioMaster SRQ62 2x31 Band Graphic Equaliser

StudioMaster SRQ62 2x31 Band Graphic Equaliser

StudioMaster SRQ62 2x31 Band Graphic Equaliser
StudioMaster SRQ62 2x31 Band Graphic Equaliser
StudioMaster SRQ62 2x31 Band Graphic Equaliser
Highlights

2 x 31 band 1/3 octave graphic equaliser

Click here for Features and Specifications
We are here to help! 020 8579 0144
Regular price £195.00 £0.00 Unit price per
Out of Stock

Out of Stock

Call us for the
latest availability
020 8579 0144

Free next day delivery

On all orders over £100

Frequently bought together:

Keep browsing or just give us a call: 020 8579 0144. We are here to help!

Introducing the Studiomaster SRQ62 – a 19" 2U – Compact size 2 x 31 band 2/3 octave graphic equaliser. The SRQ range provides the quality and features sound engineers demand.

The smallest of the SRQ range is the SRQ30, this one rack space 2 x 15 band graphic equaliser with frequencies spaced at 2/3 octaves. Boasting a number of features, the input trim adjusts the overall signal level with signal & clip LEDs providing a visual indication of signal levels, so users can really manage their audio output to the tee. The cut and boost range is switchable from 6dB to 15dB and a bypass switch gives a quick active/bypass comparison.

  • 2 x 31 band 1/3 octave graphic equaliser
  • Input trim and signal / clip led indication
  • Switchable cut / boost range and 40Hz high pass filter
  • Bypass switch for quick comparison
  • 19" 2U
Centre frequencies: 20Hz-20kHz
Frequency response: 10Hz – 55kHz
Frequency cut/boost: 12dB
Distortion: 0.004%
Signal to noise ratio: 98dB
Gain cut/boost: selectable 15dB / 6dB
Input trim range: infinity to +6dB
Maximum input level: +23dBu balnced, +20dBu unbalanced
Maximum output level: +23dBu balnced, +20dBu unbalanced
Input impedance: 20k ohms balanced, 10k ohms unbalanced
Output impedance: <150 ohms
Hi pass filter: 40Hz @ 12dB/oct
Dimension W*D*H: 483 x 186 x 88 mm
Weight: 3.5kg
