The Tascam MZ-223 Rackmount Mixer

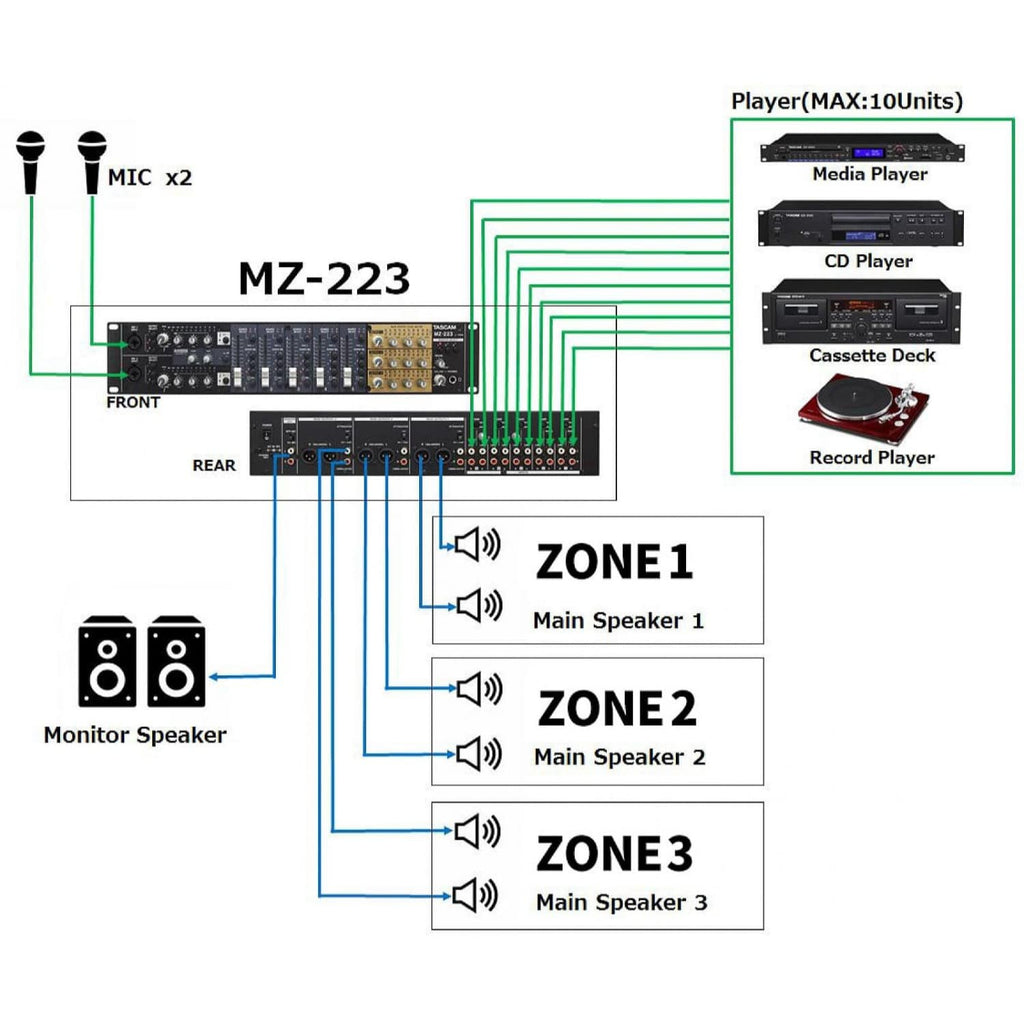

The Tascam MZ-223 is a rackmount mixer designed for fixed installations in shops, public facilities, restaurants, bars, theme parks or hotels. It can be used to send background music and announcements from a variety of sources to three different rooms or zones. Each of the seven input channels can be routed to any or all of the three output zones.
The mixer offers five stereo input channels for line-level signals from analogue playback sources like media players, tuners or cassette decks. Two channels can be switched to phono to connect record players (turntables). Each channel has its own gain control, peak LED and level fader. Two additional microphone input channels – with level controls, LED level meters and 3-band equalizers – are available for announcements, speech reinforcement, karaoke or other uses with dynamic microphones. When used for announcements, for example, the built-in Talkover function can automatically lower the volume of background music according to the mic volume.
Each of the three zone main outputs is equipped with level control, LED level meter and a 3-band equalizer. There is also an independent monitoring output for the control room and a headphones output with level control that can be used for pre-fader monitoring of selected input channels and any of the zone outputs.
Many Inputs for Your Playback Sources
The Tascam MZ-223 allows multiple audio sources to be mixed, segregated, and routed to three independent zones or destinations using familiar volume sliders and assignment buttons. Audio signals can be input to five mixing channels, each offering two selectable sets of unbalanced RCA-type stereo input pairs summing up to a total of ten unbalanced stereo line inputs. Channels one and two can be set to accommodate phono-level signals for use with record players.
Located conveniently on the front panel, two XLR inputs are available driving studio-quality mic preamps and a talkover (ducking) circuit for easy voiceover and announcement work.
Three Independent Zone Outputs

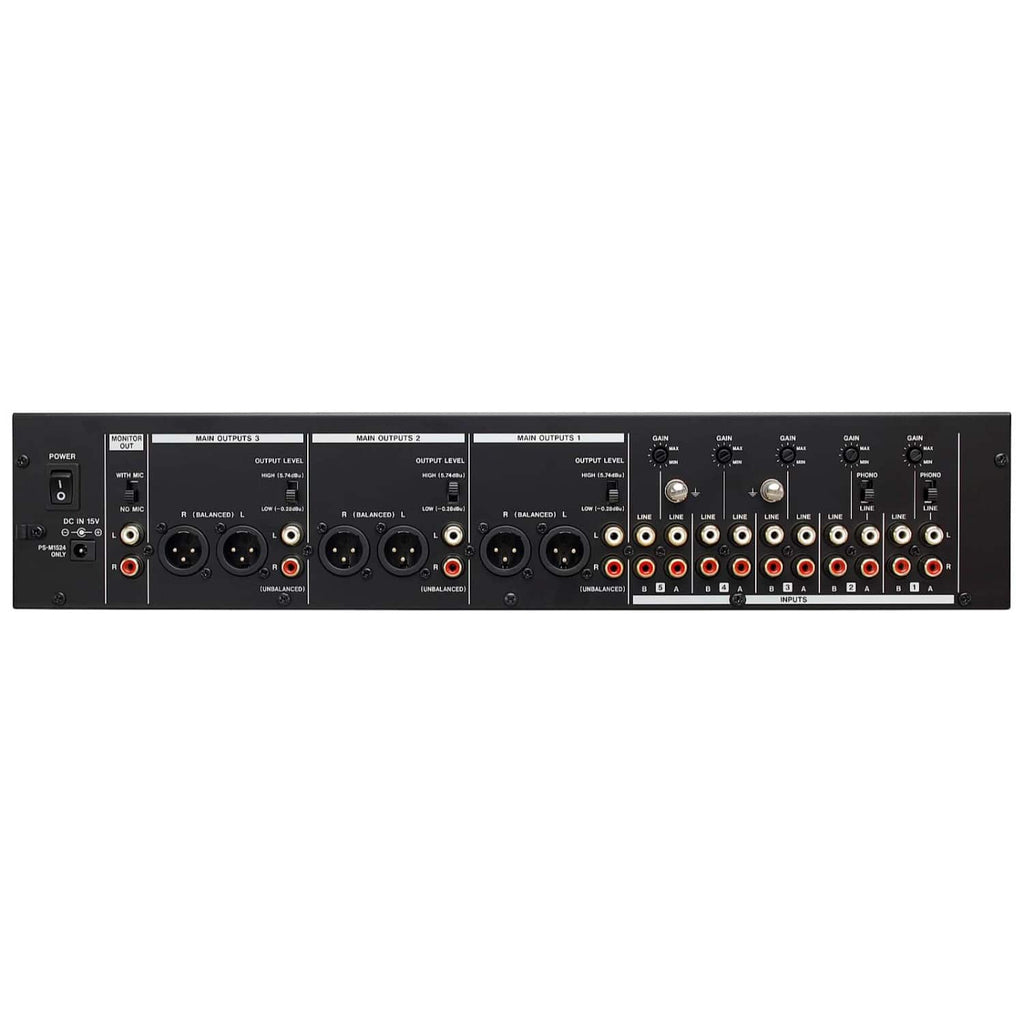

The independent three zone outputs each feature a combination of XLR balanced and RCA unbalanced connectors for long cable runs or connection to common residential power amplifiers or powered speakers. This flexibility allows, for example, music to be routed to zone one, ambient noise or natural sounds to zone two and a separate music track or a voice announcement to zone three, while the convenient “Talkover” function will automatically lower any mixed output signal of the respective zones so the voices can be heard while using the microphones.
There is also a MONITOR output that can send audio to an external recorder to make capturing events easy or that can be used to drive additional monitoring loudspeakers.
Easy, Immediate Control

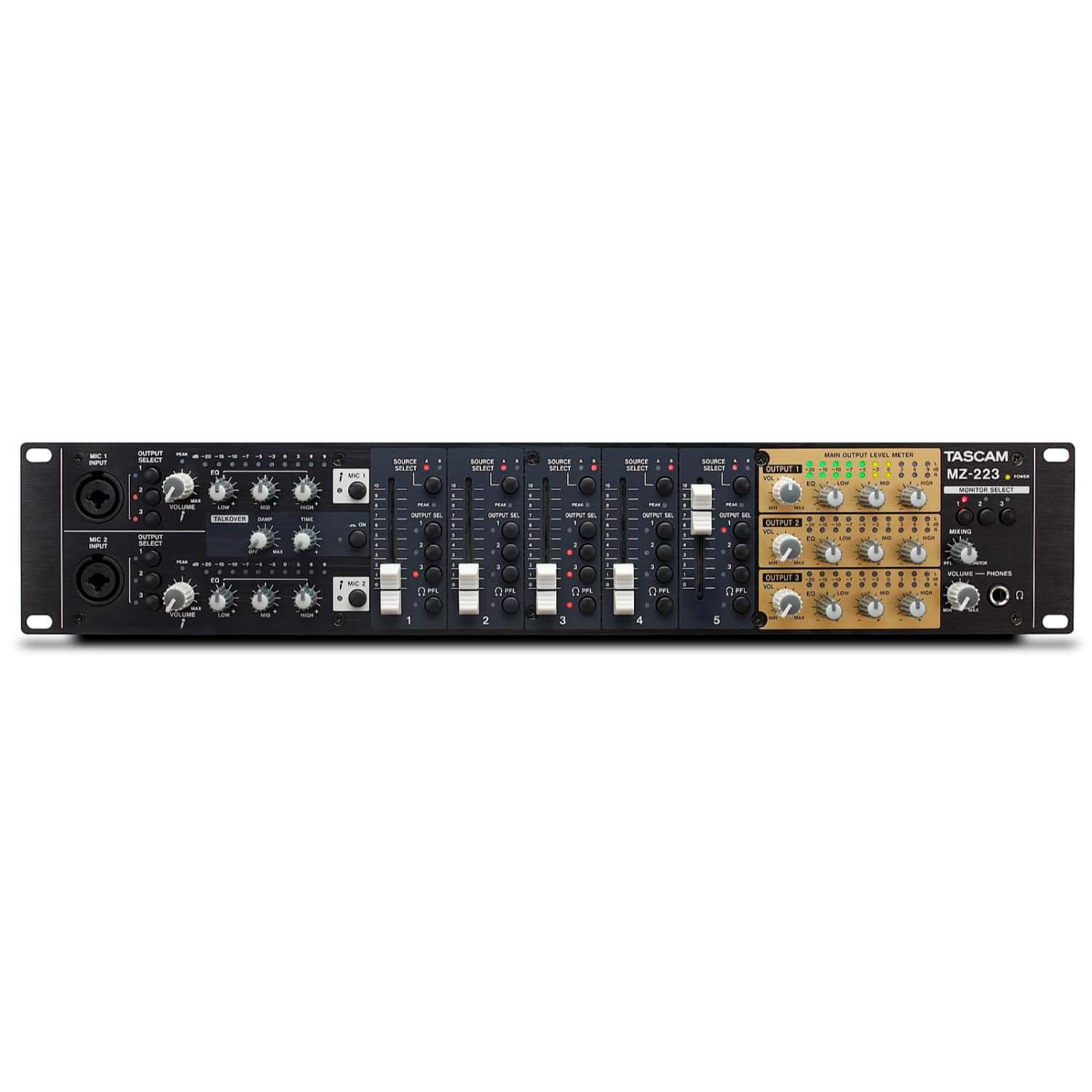

The compact front panel with familiar volume sliders, select buttons, pre-listening buttons and peak level indicators makes the Tascam MZ-223 simple and fast to set up and operate.
Volume and EQ knobs for the zone outputs are clearly arranged and the zone output levels are perfectly visible through large 10-segment stereo LED level meters. A headphones output with level control allows pre-fader monitoring of selected input channels and the zone output signals.
- Rackmount mixer that enables input channels to be routed to multiple outputs as desired
- Five stereo input channels for line signals (two switchable to phono) with gain controls, peak LEDs, and faders
- Two additional mic input channels with level controls, LED level meters and 3-band equalisers
- Mic and line inputs can be mixed for output
- Talkover function automatically lowers background music volume according to mic volume
- Three zone main outputs with level controls, LED level meters and 3-band equalisers
- Monitoring output, independent from main outputs
- Headphones output with level control can be used for pre-fader monitoring of selected input channels and the main output
- 2U rackmount size
| AUDIO INPUTS | |
| Microphone inputs 1–2: |
Balanced: XLR-3-31 (1: GND, 2: HOT, 3: COLD) Unbalanced: 6.3-mm TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND) |
| Input impedance: | 33 kOhms |
| Nominal input level: |
–65 dBu (VOLUME knob at MAX) Unbalanced: –30 dBu (VOLUME knob at MIN) |
| Line inputs (unbalanced): | RCA pin jacks |
| Nominal input level: | –10 dBV |
| Maximum input level: | 10 dBV |
| Input impedance: | 22 kOhms |
| AUDIO OUTPUTS | |
| Main outputs (unbalanced): | RCA pin jacks |
| Nominal output level: | –10 dBV |
| Maximum output level: | 6 dBV |
| Output impedance: | 200 Ohms |
| Main outputs (balanced): | XLR-3-32 (1: GND, 2: HOT, 3: COLD) |
| Nominal output level: | 4 dBu |
| Maximum output level: | 24 dBu |
| Output impedance: | 200 Ohms |
| Monitor outputs: | RCA pin jacks |
| Nominal output level: | –16 dBV |
| Maximum output level: | 0 dBV |
| Output impedance: | 200 Ohms |
| Headphones output: | 6.3-mm stereo jack |
| Maximum output power: | 50 mW + 50 mW (into 32 ohm load) |
| AUDIO PERFORMANCE | |
| Frequency response: | 20 Hz – 20 kHz |
| Distortion: | =<0.03% |
| Crosstalk: | 65 dB |
| POWER SUPPLY AND OTHER SPECIFICATIONS | |
| Power supply: | Dedicated AC adapter (PS-M1524) |
| Input voltage: | AC 100–240 V, 50/60 Hz |
| Output voltage: | DC 15 V |
| Output current: | 2.4 A |
| Power consumption: | 35 W |
| Overall dimensions (width x height x depth): | 482 mm × 88 mm × 93 mm |
| Weight: | 2.5 kg |
| Permissible operating temperature: | 5–35 °C |
